Hardware Setup
Hard Disk Connector: IDE1
The mainboard has 32-bit Ultra DMA 66/100 IDE controllers integrated in the
chips Intel ICH7, which supports PIO & Bus Master operation modes and it can
connect up to two Ultra ATA drives.
IDE1 can connect a Master and a Slave drive. You must configure second hard drive
to Slave mode by setting the jumper accordingly.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk
documentation supplied by hard disk vendors for jumper setting
instructions.

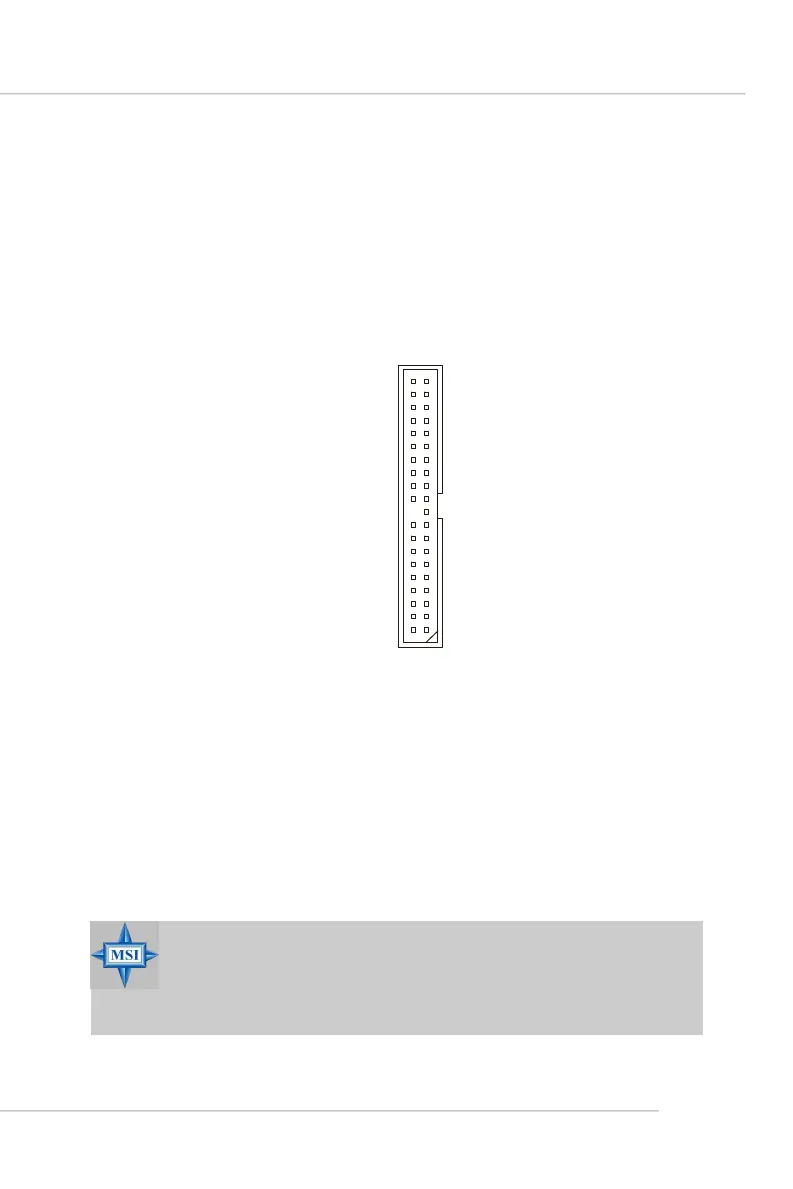

IDE1 (blue)
