MS-7236 ATX Mainboard

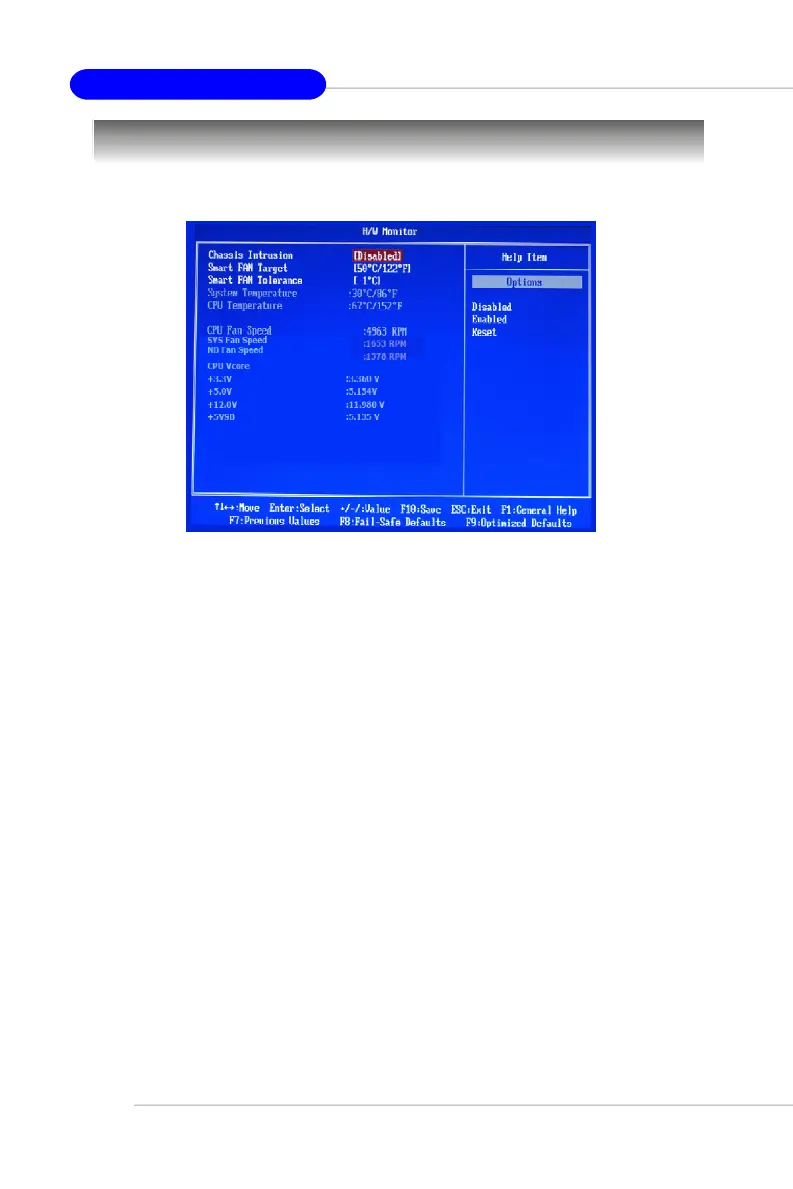

H/W Monitor
This section shows the status of your CPU, fan, overall system status, etc. Monitor
function is available only if there is hardware monitoring mechanism onboard.
Chassis Intrusion
The field enables or disables the feature of recording the chassis intrusion status and
issuing a warning message if the chassis is once opened. To clear the warning
message, set the field to [Reset]. The setting of the field will automatically return to
[Enabled] later. Setting options: [Disabled], [Enabled], [Reset].
Smart Fan Target
The mainboard provides the Smart Fan system which can control the fan speed
automatically depending on the current temperature to keep it with in a specific range.
Smart Fan Tolerance
You can select a fan tolerance value here for the specific range for the “Smart Fan
Target Temp. (
o
C)” item. If the current temperature of the fan reaches to the maximum
threshold (the temperatures set in the “Smart Fan Target Temp. (
o
C)” plus the toler-
ance values you set here), the fan will speed up for cooling down. On the contrary,
if the current temperature reaches to the minimum threshold (the set temperatures
minus the tolerance value), the fan will slow down to keep the temperature stable.
System/CPU Temperature, CPU/SYS/NB FAN Speed, Vcore, +3.3V, +5.0V,
+12.0V, +5VSB
These items display the current status of all of the monitored hardware devices/
components such as CPU voltages, temperatures and all fans’ speeds.
