2-15
Hardware Setup
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9Key(nopin) 10NC
Pin Definition
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.

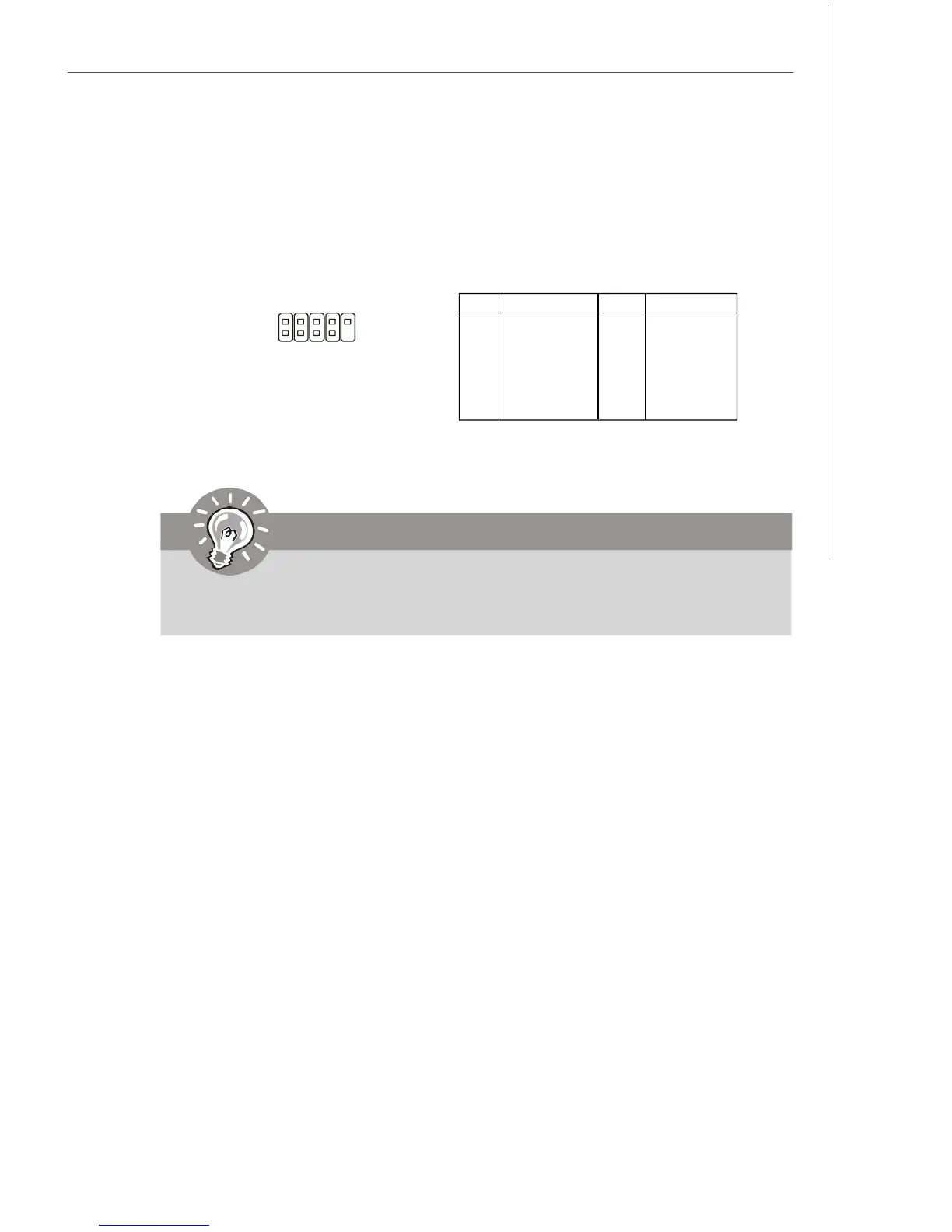

Front USB Connector: JUSB1 / JUSB2
This connector, compliant with Intel
®
I/O Connectivity Design Guide, is ideal for con-
necting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
1
2
9
10
JUSB1 / JUSB2
