MSI MS-7388 - IEEE1394 Connector: J1394_1; S;PDIF-Out Connector: JSPD1

2-17
Hardware Setup

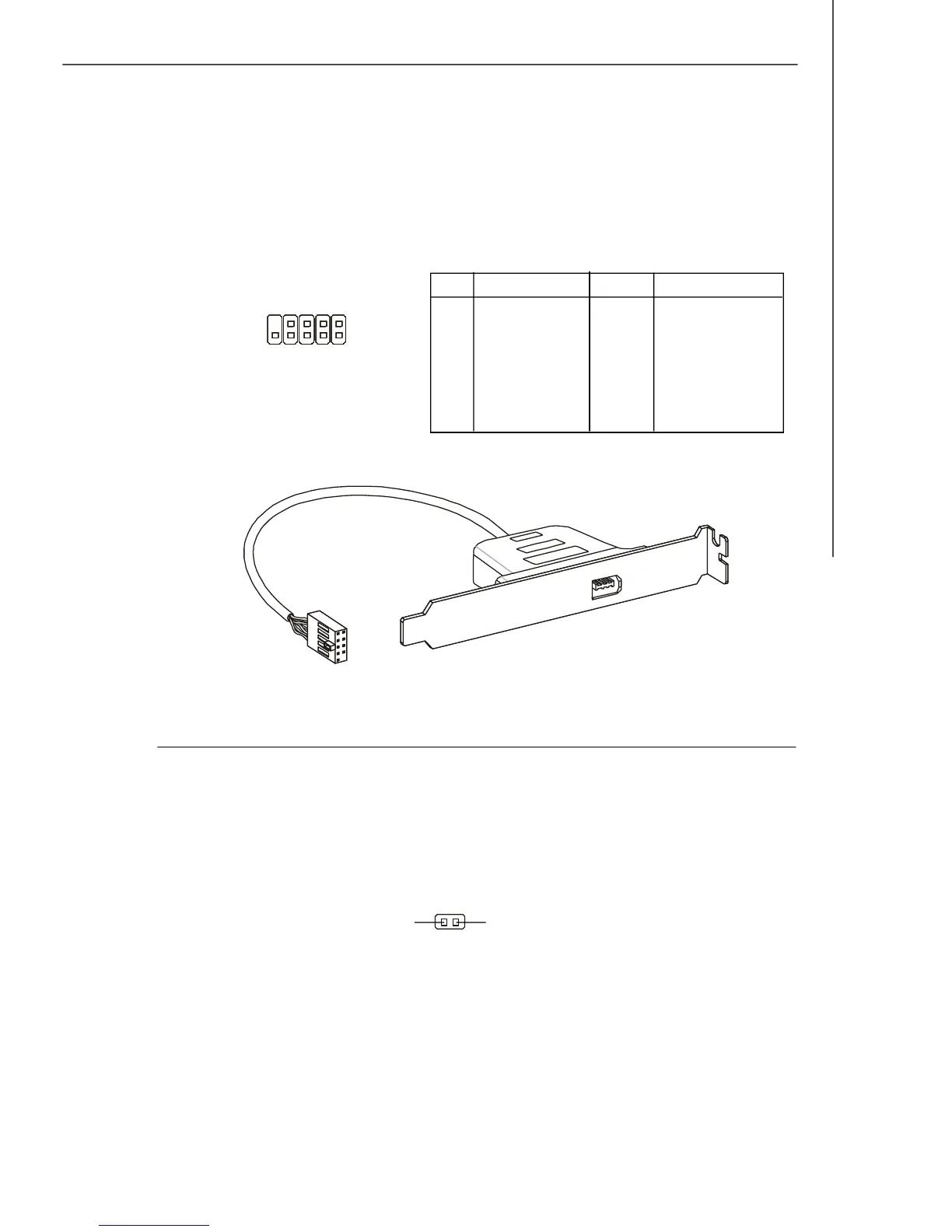

IEEE1394 Connector: J1394_1 (Optional)
This connector allows you to connect the IEEE1394 device via an optional IEEE1394
bracket.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
J1394_1
1
9
2 10
IEEE1394 Bracket (Optional)
S/PDIF-Out Connector: JSPD1 (Optional, for HDMI graphics card
only)
This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format)
interface for digital audio transmission to the HDMI graphics card.
JSPD1
SPDIFO GND
