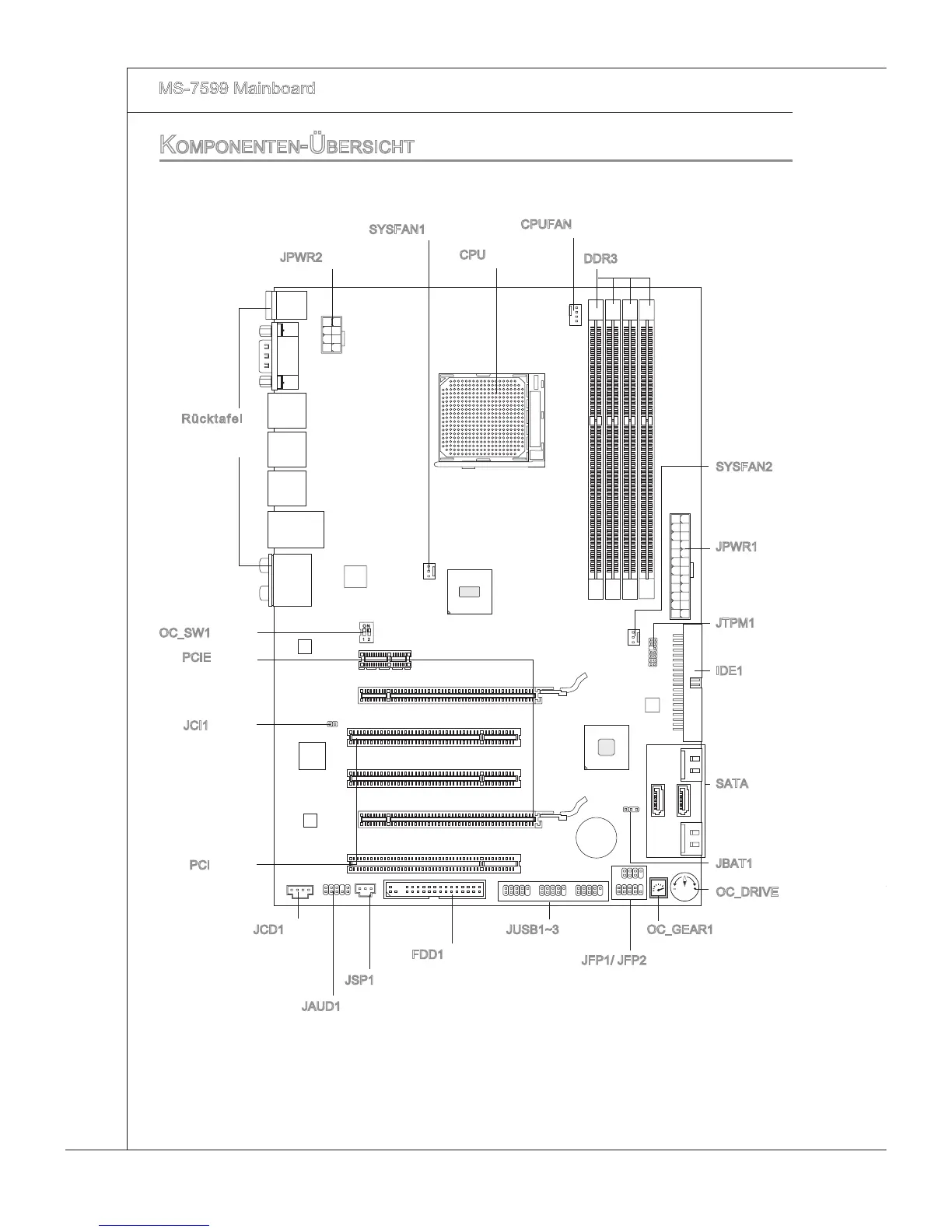

MS-7599 Manboard ▍
JPWR2, De-10
koMponenten-ÜberSicht
Rücktafel,
De-11
CPU, De-5
CPUFAN, De-15
DDR3, De-8
FDD1, De-13
JPWR1,De-10
IDE1, De-13
JTPM1, De-18
SATA, De-14
SYSFAN2, De-15
JFP1/ JFP2, De-16
JUSB1~3, De-17
JBAT1, De-19
JSP1, De-16
JCD1, De-15
PCI, De-22
PCIE, De-22
OC_SW1, De-20
JAUD1, De-17
JCI1, De-14
SYSFAN1, De-15
OC_GEAR1, De-21
OC_DRIVE, De-21
