MSI MS-7877 v1.X - Back Panel Details; LAN LED Indicator; Audio Configuration

English
4

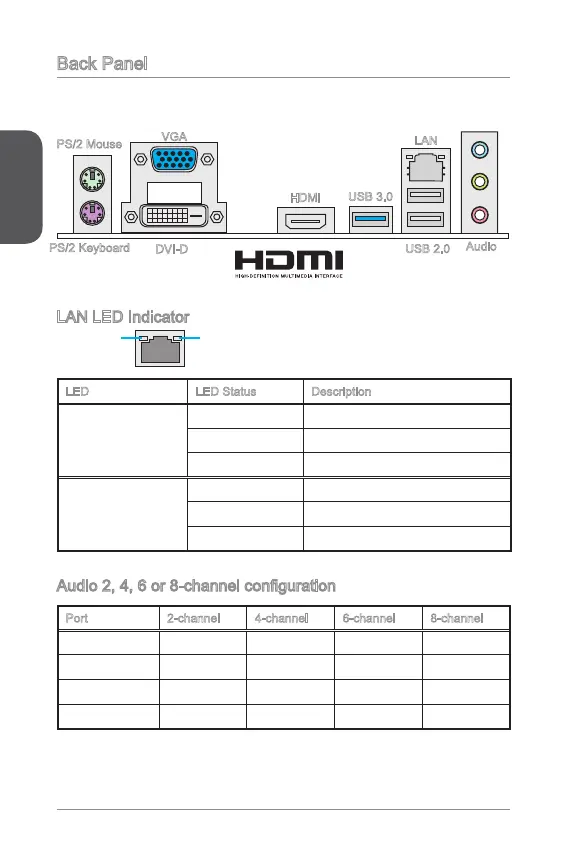

Back Panel
LAN LED Indicator
LINK/ACT
LED
SPEED
LED
LED LED Status Description
Link/ Activity LED
O󰘯 No link
Yellow Linked
Blinking Data activity
Speed LED
O󰘯 0 Mbps connection
Green 00 Mbps connection
Orange  Gbps connection
Audio 2, 4, 6 or 8-channel con󰘰guration
Port 2-channel 4-channel 6-channel 8-channel
Blue Line in RS-Out RS-Out RS-Out
Green Line out FS-Out FS-Out FS-Out
Pink Mic Mic CS-Out CS-Out
Front audio - - - SS-Out
PS/2 Mouse
PS/2 Keyboard
HDMI
USB 3.0
VGA
LAN
DVI-D
Audio
USB 2.0
®
