Hardware Setup
▍
MS-91F7

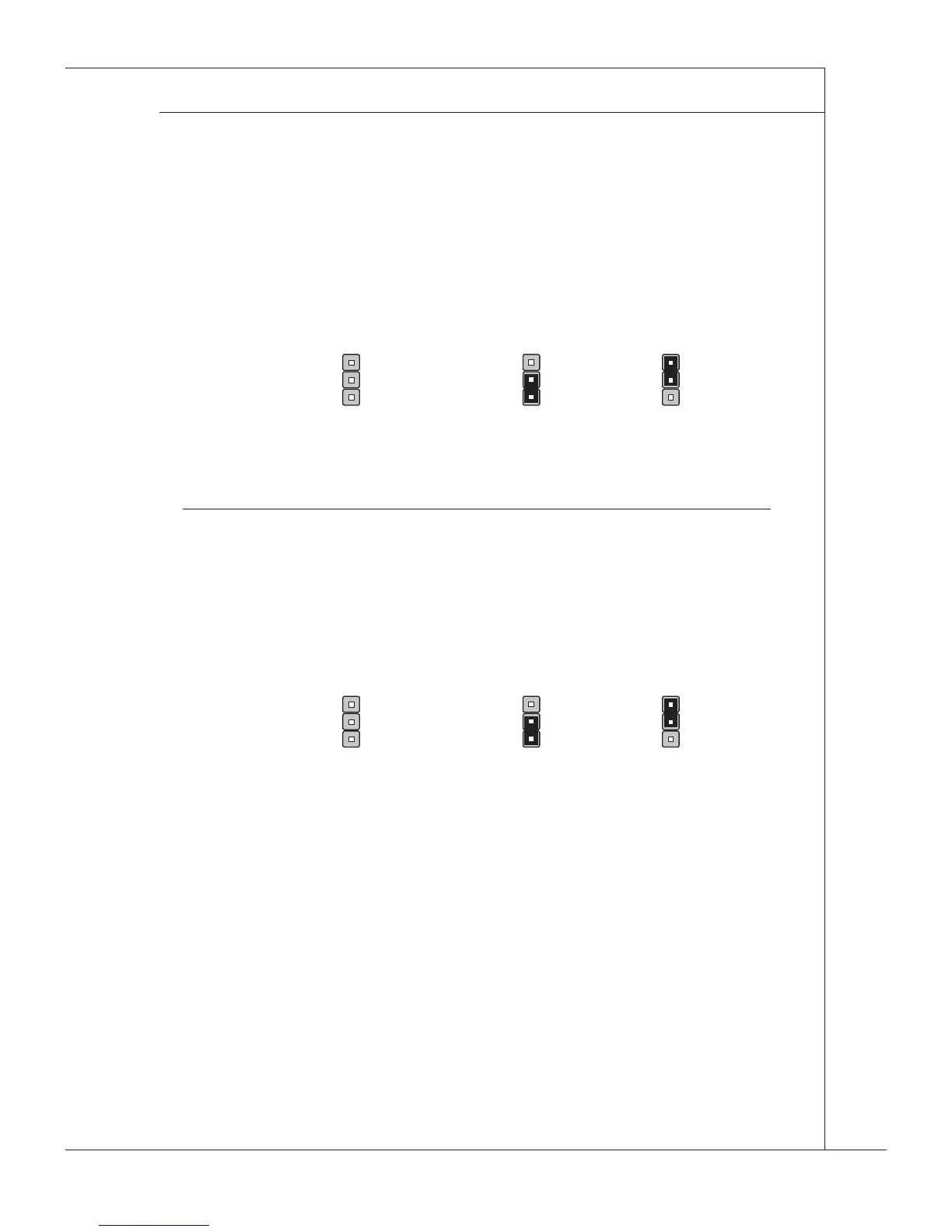

BIOS Recovery Jumper: JBOOT1
Users can short connect pin#2-3 to recover the system BIOS. When the system
is done with the job, the buzzer will beep to remind users to set the jumper to its
normal state (pin#1-2 short connected).
Recovery
1
Normal
1
JBOOT1
1
BIOS Write Protect Jumper: JBWP1
This jumper is used to enable/disable the BIOS ash. When you intend to update
the BIOS code, short connect pin#2-3 rst. Under normal operation, we suggest
that you disable the BIOS ash by short connecting pin#1-2 to protect the system
BIOS from virus infection.
Normal
1
Write Protection
1
JBWP1
1
