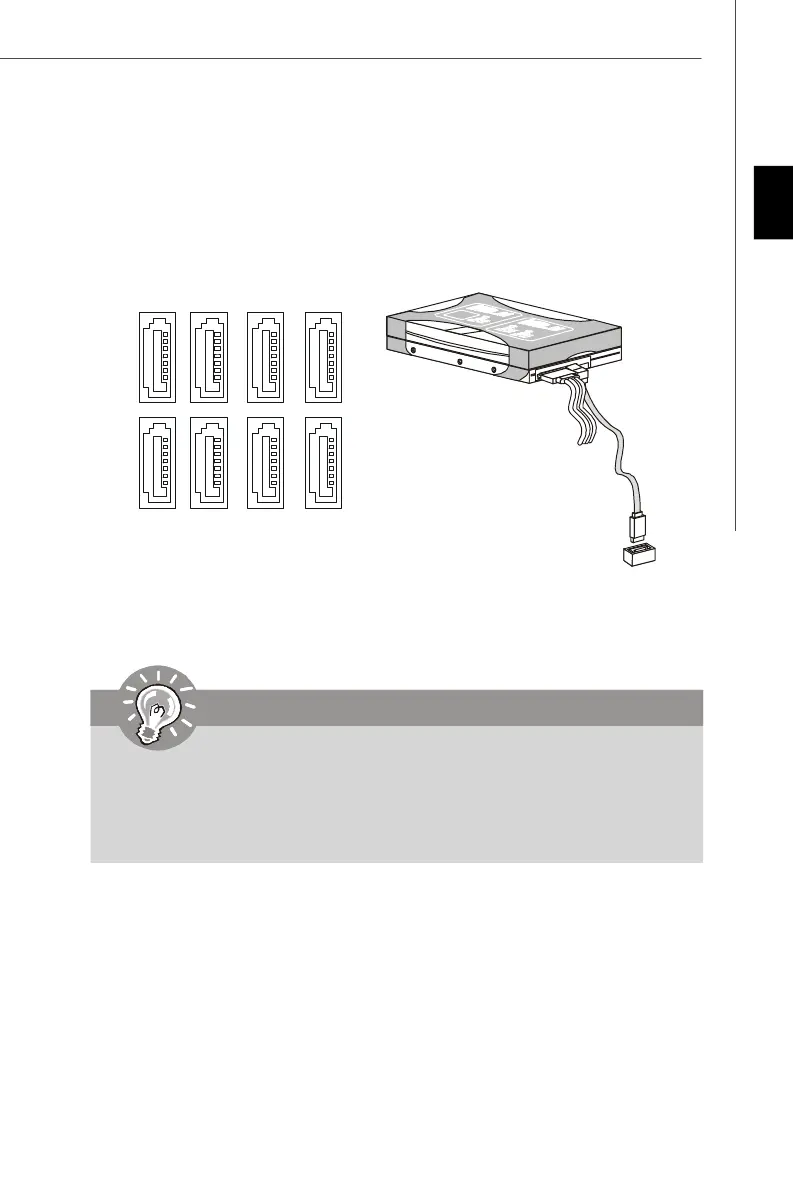

Serial ATA Connector: SATA1~8
This connector is a high-speed Serial ATA interface port. Each connector can
connect to one Serial ATA device.
SATA4
SATA3
SATA6 SATA2
SATA5
SATA1
Important
1. Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
2. SATA1~6 controlled by ICH10R/ ICH10, and the ICH10R supports RAID 0/
1/ 0+1/ 5 mode.
3. SATA7~8 controlled by JMB363 and they support RAID 0/ 1 mode.
SATA8
SATA7
