MS-7514 Mainboard
The motherboard provides the following buttons(optinoal) for you to set the computer’s
function. This section will explain how to change your motherboard’s function through
the use of button.

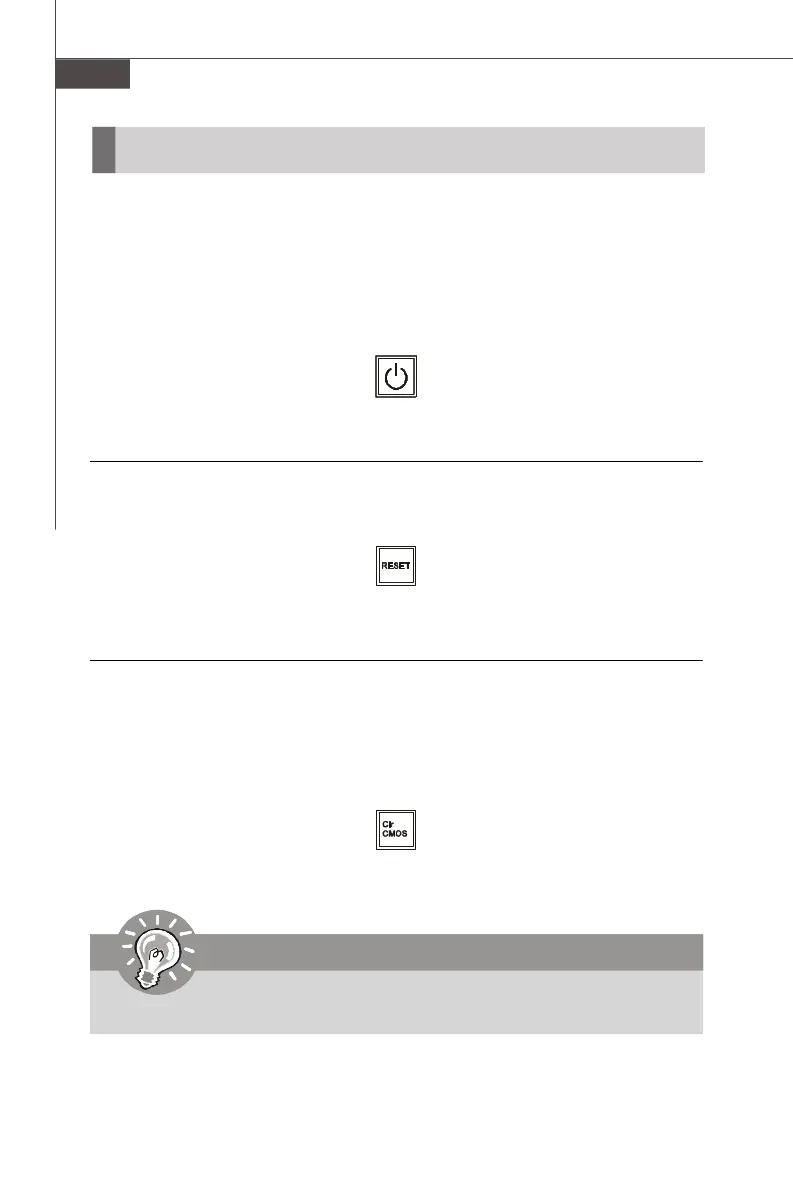

Buttons
Power Button: POWER1 (optional)
This power button is used to turn-on or turn-off the system. Press the button to turn-
on or turn-off the system.
Reset Button: RESET1 (optional)
This reset button is used to reset the system. Press the button to reset the system.
RESET1
POWER1
Clear CMOS Button: CLR_CMOS1 (optional)
There is a CMOS RAM onboard that has a power supply from an external battery to
keep the data of system configuration. With the CMOS RAM, the system can auto-
matically boot OS every time it is turned on. If you want to clear the system configuration,
simply press the button to clear data.
CLR_CMOS1
Important
Make sure that you power off the system before press the clear CMOS button.
