MSI P45 Neo3 V2 Series Manual

En-20
MS-7514 Mainboard

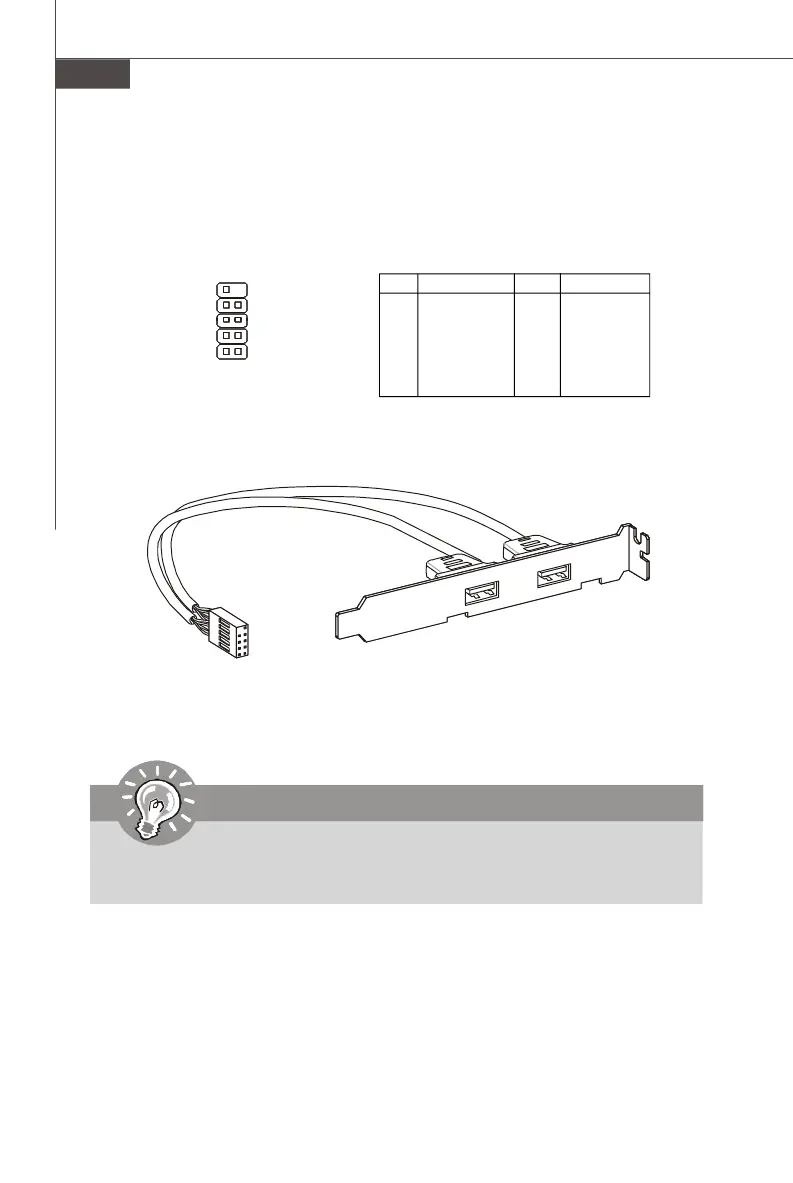

Front USB Connector: JUSB1~3
These connectors, compliant with Intel
®
I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 NC
Pin Definition
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.
JUSB1~3
1 2
10
9
USB 2.0 Bracket
(optional)
