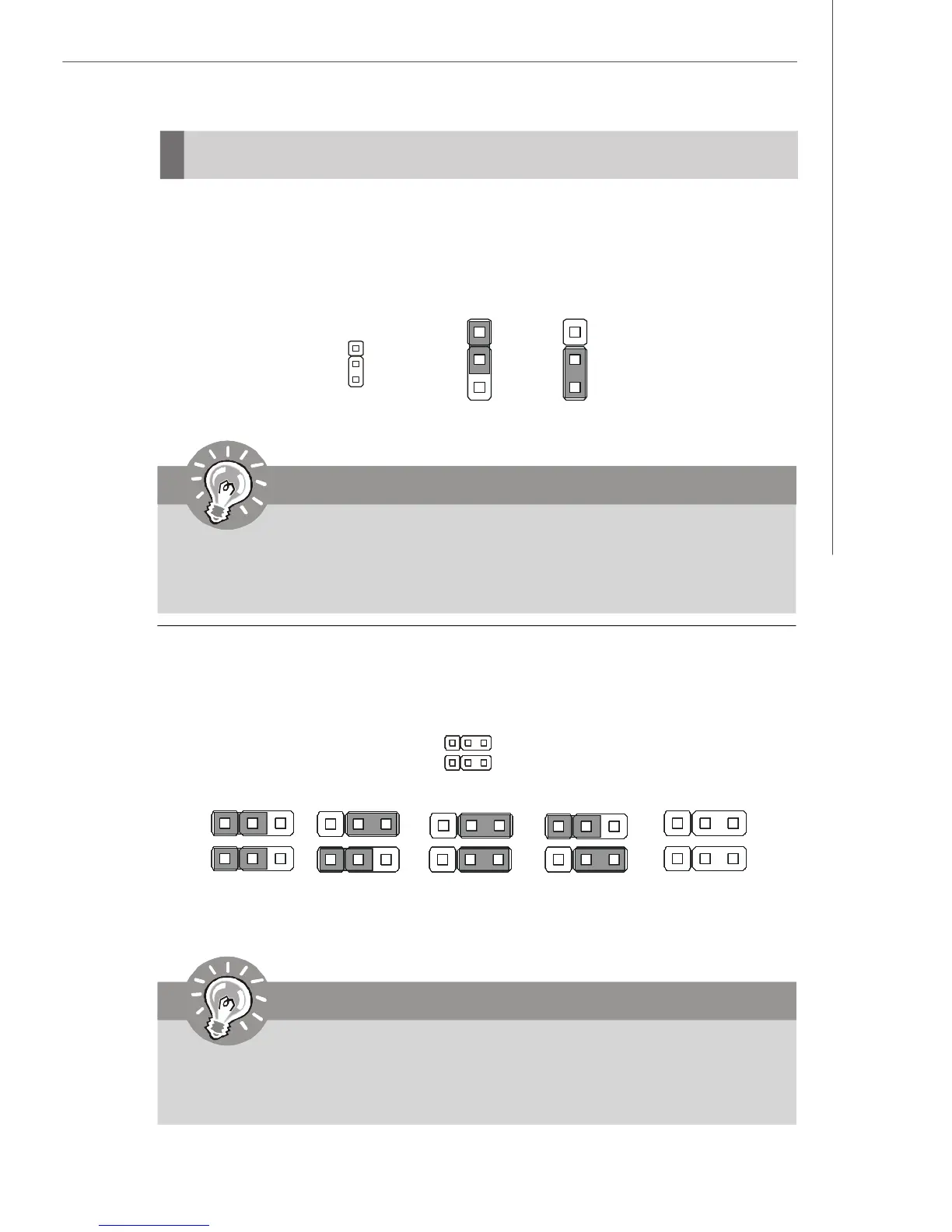

2-19
Hardware Setup
Jumpers
Clear CMOS Jumper: JBAT1
There is a CMOS RAM onboard that has a power supply from an external battery to
keep the data of system configuration. With the CMOS RAM, the system can auto-
matically boot OS every time it is turned on. If you want to clear the system configuration,
set the jumper to clear data.
JBAT1
1
Clear Data
1
3
Keep Data
1
3
Important
You can clear CMOS by shorting 2-3 pin while the system is off. Then return
to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will
damage the mainboard.
Hardware Overclock FSB Jumpers: JB1, JB2
You can overclock the FSB to increase the processor frequency by changing the
jumpers JB1 and JB2. Follow the instructions below to set the FSB.
Important
1. Make sure that you power off the system before changing the jumpers.
2. Overclocking may cause instability or crash during boot, then please
restore the jumpers to default.
Default
1 3 1
3
1 3
JB1
JB2
1 3
200->266 MHz 200->333 MHz 200->400 MHz
266->400 MHz
333->400 MHz
1
JB2
JB1
1
1
3
266->333 MHz
