MS-7514 Mainboard

AHCI Port 1~6

Select the type of device.

Hard Disk S.M.A.R.T.

This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Report-

ing Technology) capability for the hard disks. S.M.A.R.T is a utility that moni-

tors your disk status to predict hard disk failure. This gives you an opportunity

to move data from a hard disk that is going to fail to a safe place before the

hard disk becomes offline.

I/O Device

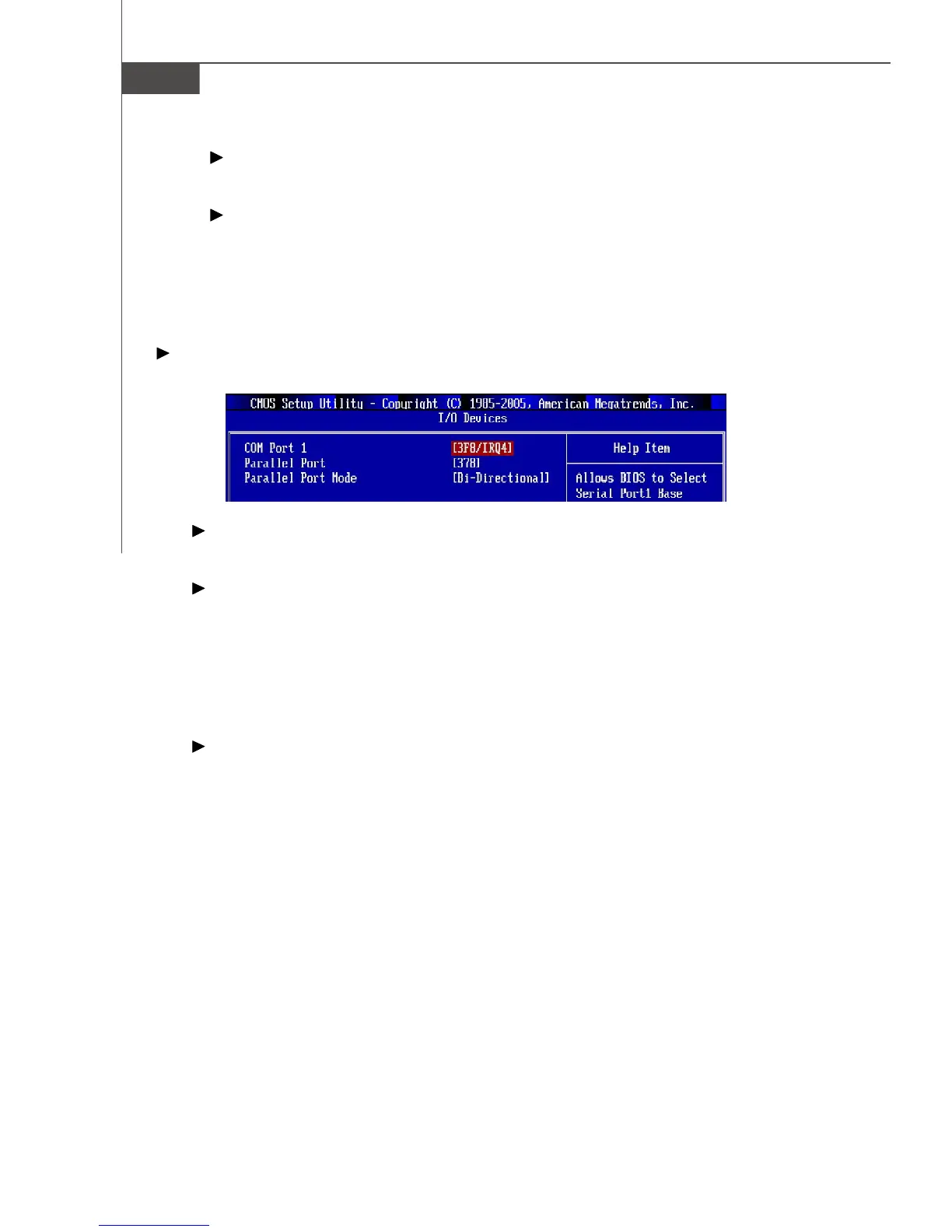

Press <Enter> to enter the sub-menu and the following screen appears:

COM Port 1

Select an address and corresponding interrupt for the first serial port.

Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that provides

Standard, ECP, and EPP features. It has the following options:

[Disabled]

[3BC] Line Printer port 0

[278] Line Printer port 2

[378] Line Printer port 1

Parallel Port Mode

[Normal] Standard Parallel Port

[EPP] Enhanced Parallel Port

[ECP] Extended Capability Port

[ECP + EPP] Extended Capability Port + Enhanced Parallel Port

[Bi-Directional]

To operate the onboard parallel port as Standard Parallel Port only, choose

[Normal]. To operate the onboard parallel port in the EPP mode simultaneously,

choose [EPP]. By choosing [ECP], the onboard parallel port will operate in ECP

mode only. Choosing [ECP + EPP] will allow the onboard parallel port to support

both the ECP and EPP modes simultaneously.
