MSI PRESTIGE X570 CREATION - PCIe Expansion Slots

32
Overview of Components
PCI_E2
PCI_E2
PCI_E5
PCI_E1~7: PCIe Expansion Slots

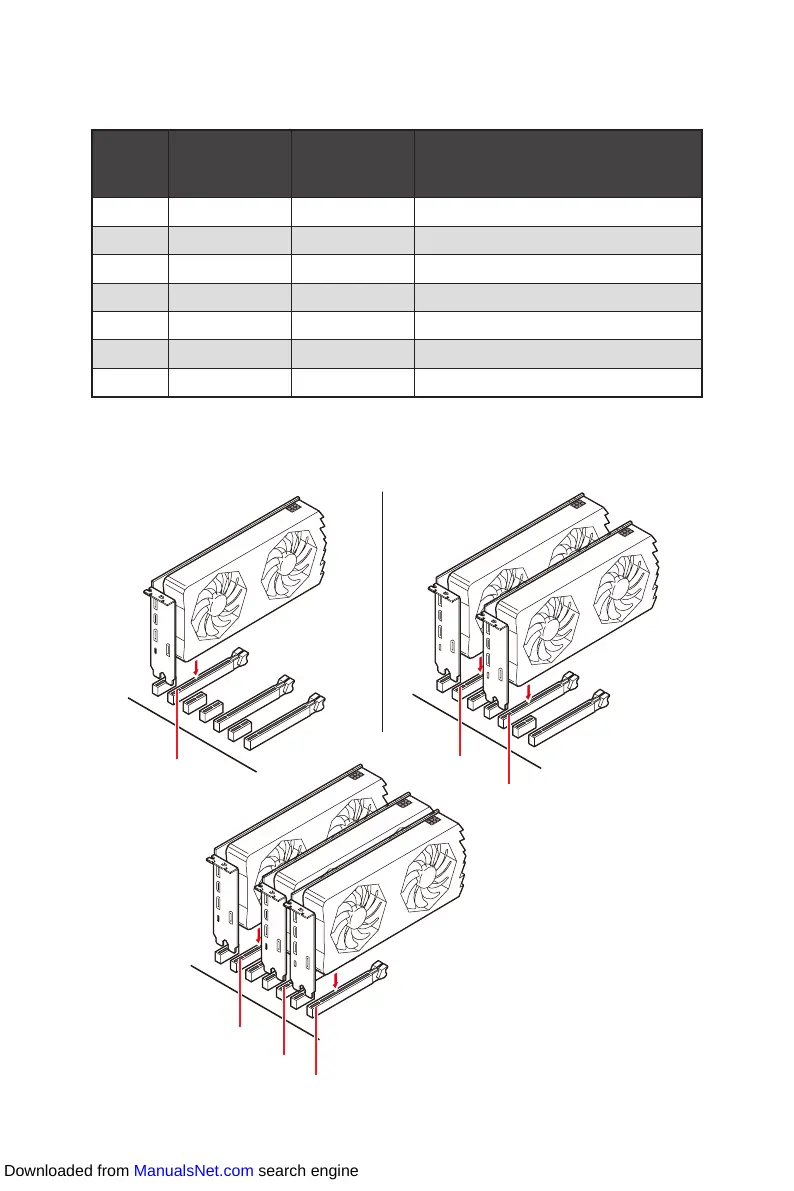

Multiple graphics cards installation recommendation (Ryzen™ series
processors)
Slots
3rd Gen AMD
Ryzen™
2nd Gen AMD
Ryzen™
Ryzen™ with Radeon™ Vega
Graphics and 2nd Gen AMD Ryzen™
with Radeon™ Graphics
PCI_E1 PCIe 2.0 x1 PCIe 2.0 x1 PCIe 2.0 x1
PCI_E2 PCIe 4.0 x16 PCIe 3.0 x16 PCIe 3.0 x8
PCI_E3 PCIe 2.0 x1 PCIe 2.0 x1 PCIe 2.0 x1
PCI_E4 PCIe 2.0 x1 PCIe 2.0 x1 PCIe 2.0 x1
PCI_E5 PCIe 4.0 x8 PCIe 3.0 x8 ─
PCI_E6 PCIe 2.0 x1 PCIe 2.0 x1 PCIe 2.0 x1
PCI_E7 PCIe 4.0 x4 PCIe 3.0 x4 PCIe 3.0 x4
PCI_E2
PCI_E5
PCI_E7
