MSI PRESTIGE X570 CREATION - M.2 Slots (Key M); Installing M.2 Module

35
Overview of Components
M2_1~2: M.2 Slots (Key M)
2

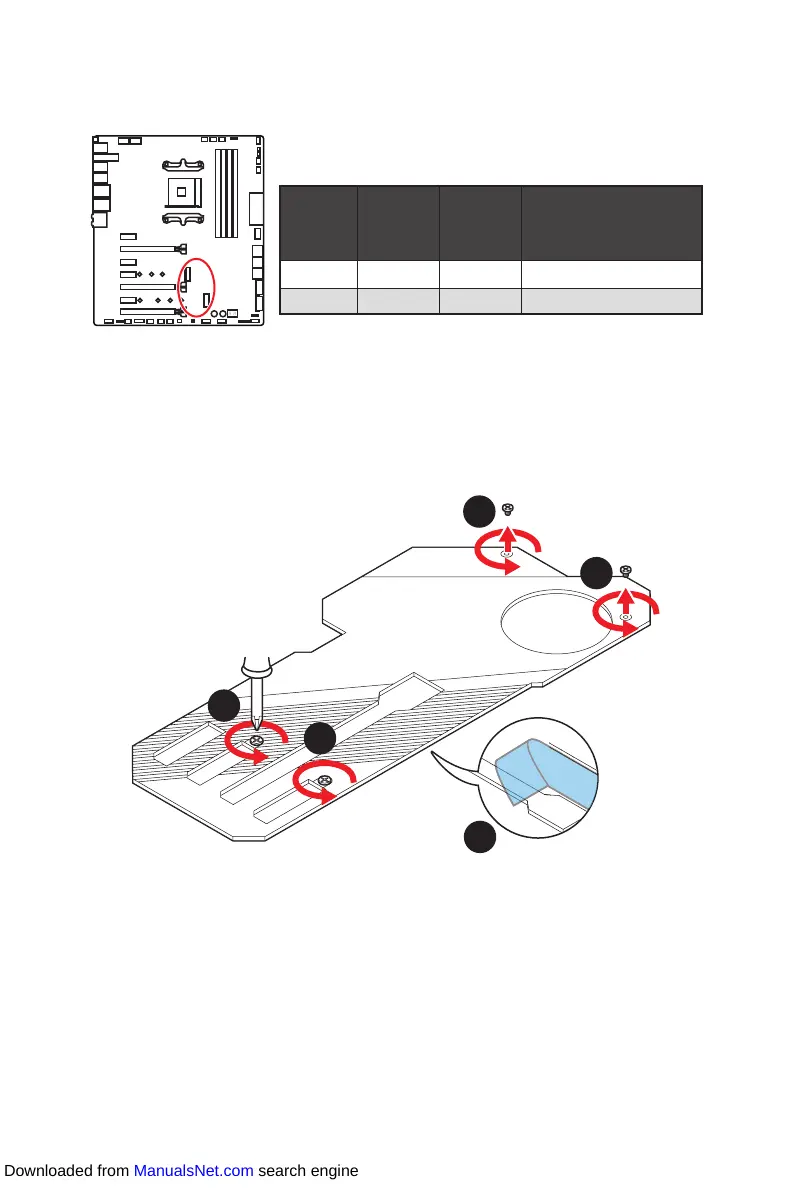

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
M2_1
M2_2
1
1
1
1
The following table describes the relationship between the
M.2 slots and the PCIe bandwidth of the processors.
Slots
3rd Gen
AMD
Ryzen™
2nd Gen
AMD
Ryzen™
Ryzen™ with Radeon™
Vega Graphics and 2nd Gen
AMD Ryzen™ with Radeon™
Graphics
M2_1(CPU) PCIe 4.0 x4 PCIe 3.0 x4 PCIe 3.0 x4
M2_2(PCH) PCIe 4.0 x4 PCIe 3.0 x4 PCIe 3.0 x4
