Overview of Components

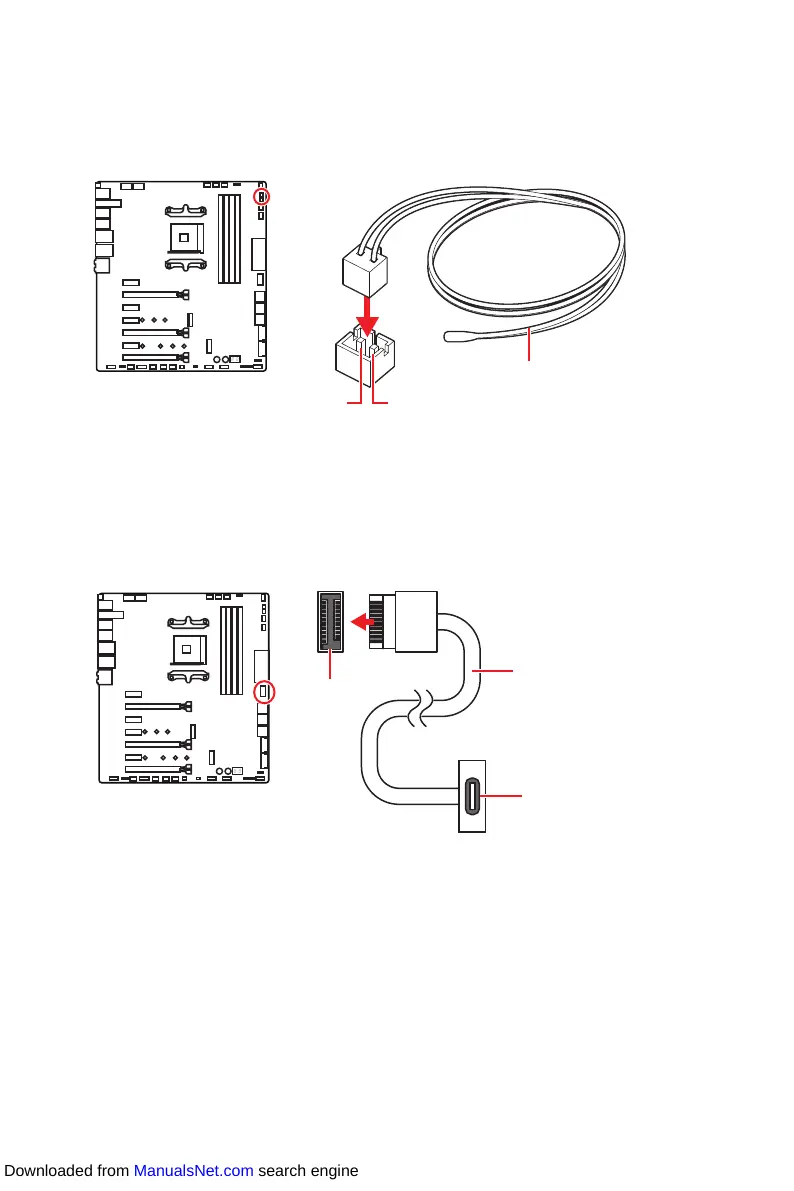

T_SEN1~2: Thermal Sensor Connectors
These connectors allow you to connect the thermistor cable and use it to monitor the
temperature of the detection point.
Thermistor cable
GND
Sense
JUSB5: USB 3.2 Gen2 Type-C Connector
This connector allows you to connect the USB 3.2 Gen2 Type-C connector on the front
panel. The connector possesses a foolproof design. When you connect the cable, be
sure to connect it with the corresponding orientation.
JUSB5
USB Type-C Cable
USB Type-C port on
the front panel
