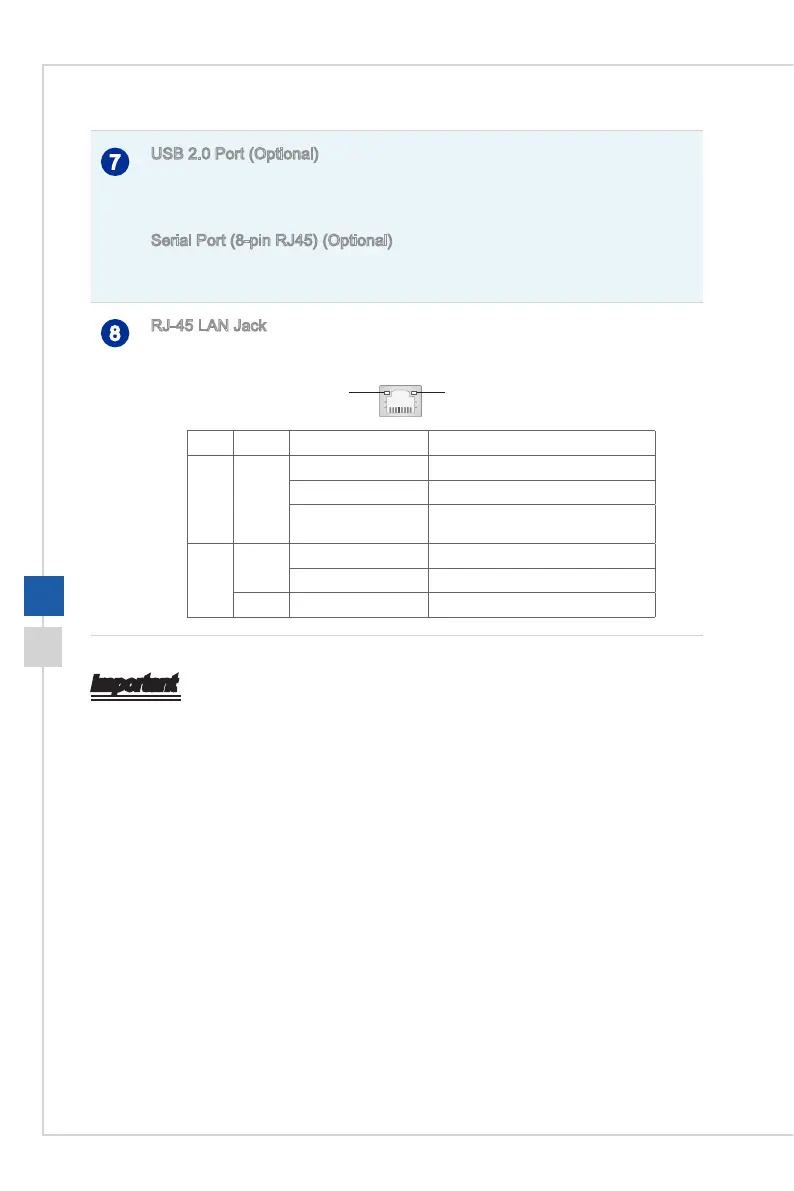

Overview
7
USB 2�0 Port (Optional)
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices� It supports up to 480Mbit/s (Hi-Speed) data
transfer rate�
Serial Port (8-pin RJ45) (Optional)
The serial port supports barcode scanners, barcode printers, bill printers, credit card
machine, etc�
8
RJ-45 LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area Network
(LAN)� You can connect a network cable to it�
Yellow Green/ Orange
LED Color LED State Condition
Left Yellow O LAN link is not established�
On (steady state) LAN link is established�
On (blinking) The computer is communicating with
another computer on the LAN�
Right Green O 10 Mbit/sec data rate is selected�
On 100 Mbit/sec data rate is selected�
Orange On 1000 Mbit/sec data rate is selected�
Important
•
We suggest that you connect the AC/DC adapter to your AIO PC rst and then
connect the AC power cord to the socket-outlet for safety concerns�
•
High-speed devices are recommended for USB 3�0 ports whereas low-speed
devices, such as mouse or keyboard, are suggested to be plugged into the USB 2�0
ports�
