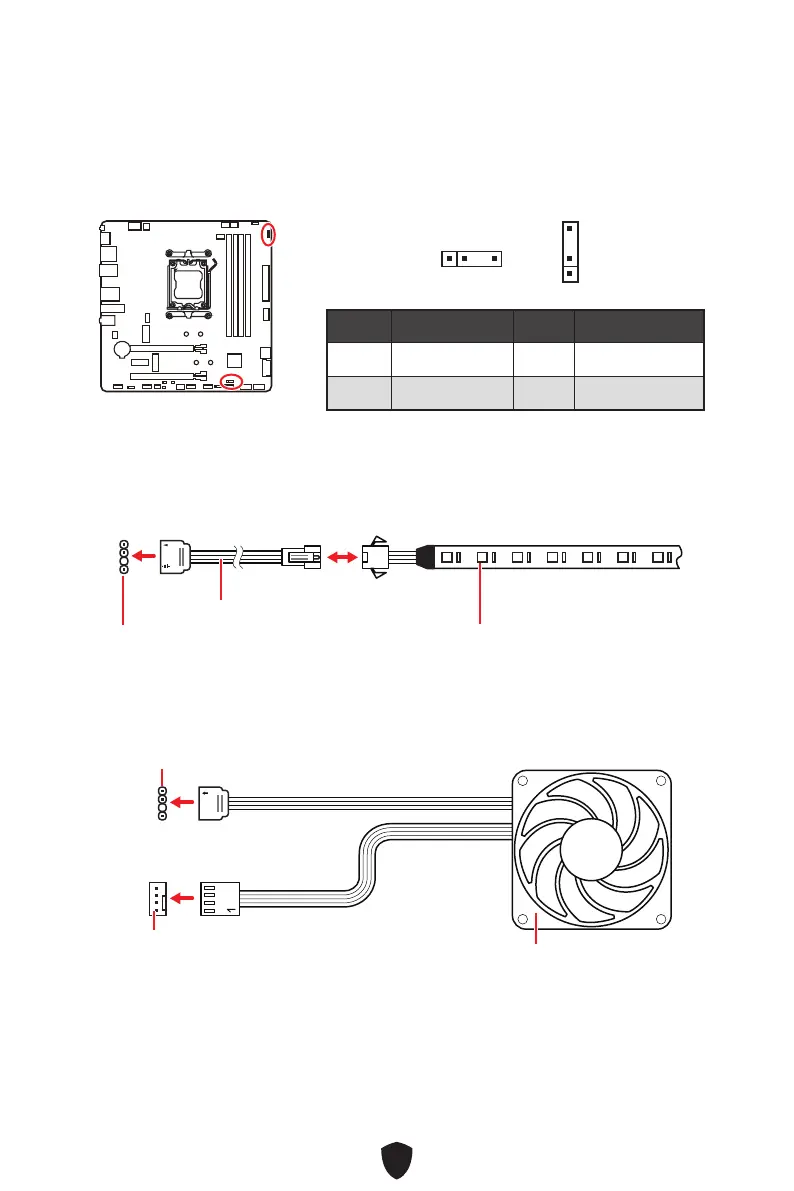

JARGB_V2_1~2 : Connecteurs LED A-RAINBOW V2 (ARGB Gen2)
Les connecteurs JARGB_V2 vous permettent de connecter les rubans LED ARGB
Gen2 et ARGB. Le connecteur JARGB_V2 supporte jusqu’à 240 LED RGB adressables
individuellement avec une puissance nominale maximale de 3 A (5 V).
Broche Nom de signal Broche Nom de signal
1 +5V 2 Data
3 No Pin 4 Ground
1
1
1
1
D
+5V
Connecteur JARGB_V2
Connecteur JARGB_V2
Connecteur de ventilateur système
Câble d’extension JARGB
Ruban LED ARGB/ARGB Gen2
Connexion du ruban LED RGB adressable
Connexion du ventilateur LED RGB adressable
Ventilateur LED ARGB/ARGB Gen2
1

MSI PRO B650M-A WIFI Specifications

General

Processor manufacturer	AMD
Compatible processor series	-
Supported processor sockets	Socket AM5
ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Number of SATA II connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express
Cables included	SATA
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Parallel processing technology support	Not supported
Audio chip	Realtek ALC897
Component for	PC
Product color	Black
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Weight and Dimensions

Width	243.84 mm
