42
Wichtig
Der JRGB Anschluss unterstützt bis zu 2 Metern 5050 RGB LED-Streifen (12V/G/
R/B) mit der maximalen Leistung von 3 A (12 V)
Schalten Sie die Stromversorgung aus und ziehen Sie das Netzkabel ab, bevor Sie
die RGB-LED-Streifen ein- und ausbauen.
Bitte verwenden Sie die MSI-Software zur Steuerung des LED-Leuchtstreifens.
JRGB1~2: RGB LED Anschluss
Mit den JRGB Anschlüsse können Sie den 5050 RGB-LED-Streifen (12 V) anschließen.
1
G
R
B
JRGB Anschluss
JRGB Verlängerungskabel
5050 RGB LED Streifen 12V

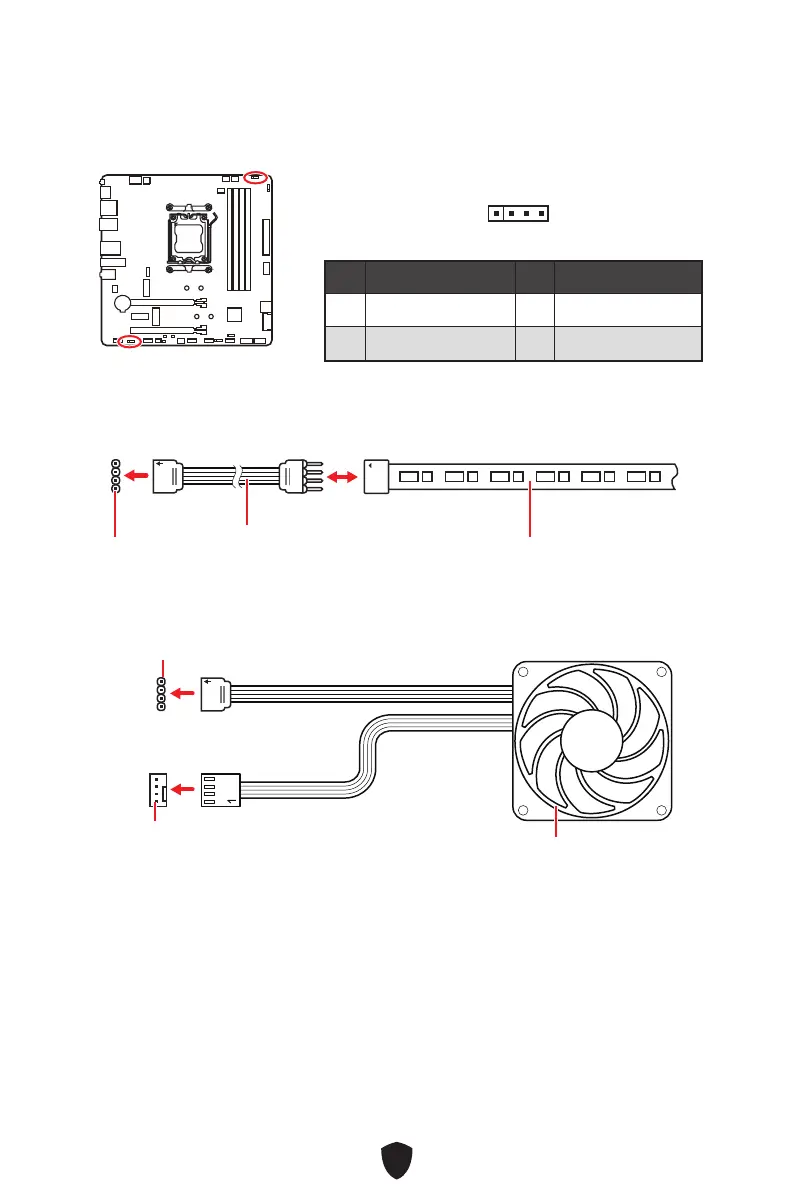

RGB-LED-Streifen anschließen
1
1
G
R
B
JRGB Anschluss
System-Lüfter -Anschluss
RGB-LED-Lüfteranschluss
RGB LED Lüfter
Pin Signalname Pin Signalname
1 +12V 2 G
3 R 4 B
1
