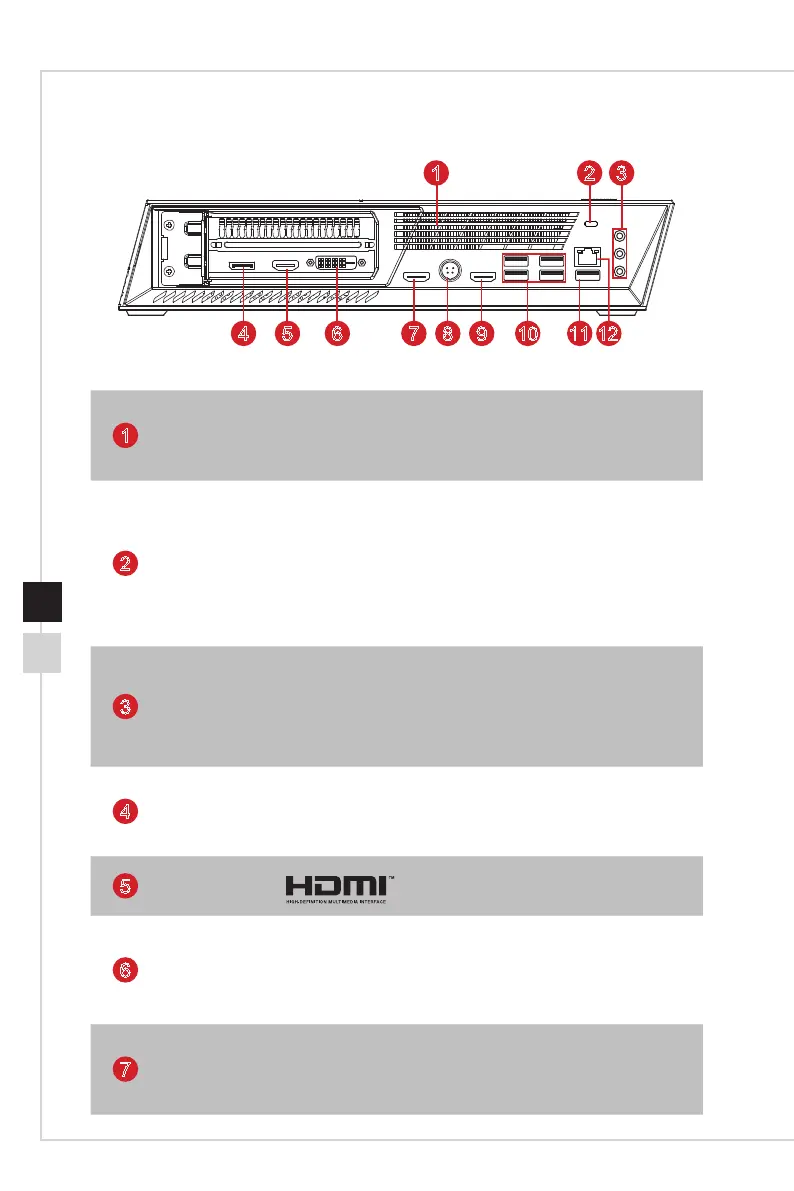

h Rear View
65 84
1 2 3
7 9
10 11 12
1
Ventilator
The ventilator on the enclosure is used for air convection and to prevent
the equipment from overheating� Do not cover the ventilator�
2
Kensington Lock Port
This PC provides a Kensington lock port, which allows users to secure
the PC in place with a key or some mechanical PIN device and attached
through a rubberised metal cable� The end of the cable has a small loop
which allows the whole cable to be looped around a permanent object,
such as a heavy table or other similar equipment, thus securing the PC
in place�
3
Audio Ports
Line in: Used for connecting external audio outputting devices�
Line out: Used as a connector for speakers or headphone�
Mic: Used as a connector for a microphone�
4
DisplayPort (optional) *
DisplayPort is a digital display interface standard� This connector is used
to connect a monitor with DisplayPort inputs�
5
HDMI-Out Port (optional) *
6
DVI-D Port (optional) *
The DVI-D (Digital Visual Interface-Digital) connector allows you to
connect a LCD monitor� It provides a high-speed digital interconnection
between the computer and its display device�
7
VR Link Port
The VR (Virtual Reality) link port is for attaching VR-compatible graphics
cards�
