Overview
1-5
8

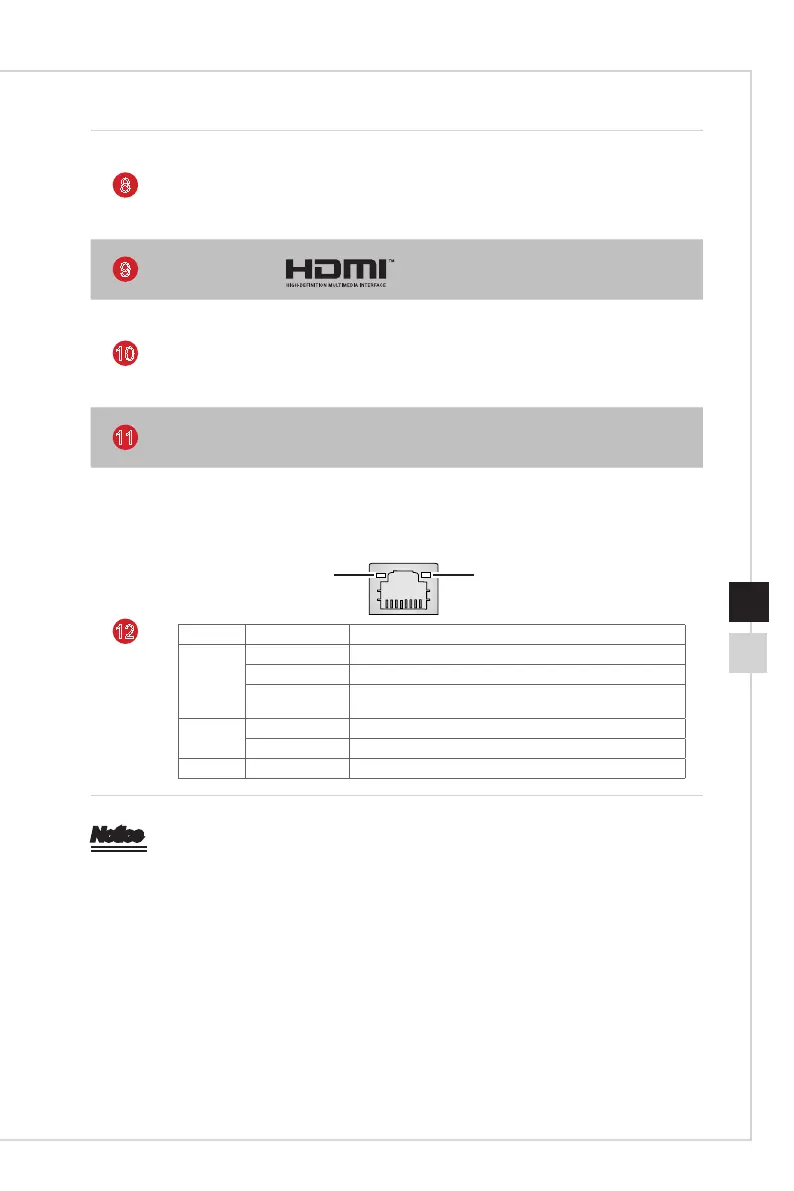

Power Jack
The AC/DC adapter converts AC power to DC power for this jack� Power
supplied through this jack supplies power to the PC� To prevent damage
to the PC, always use the supplied power adapter�
9
HDMI-Out Port
10
USB 2.0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up to
480Mbit/s (Hi-Speed) data transfer rate�
11
USB 3.1 Gen1 Port **
12
LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN)� You can connect a network cable to it�
Green/ OrangeYellow
LED Color LED State Condition
Yellow O LAN link is not established�
On (steady state) LAN link is established�
On (blinking) The computer is communicating with another computer on
the LAN�
Green O 10 Mbit/sec data rate is selected�
On 100 Mbit/sec data rate is selected�
Orange On 1000 Mbit/sec data rate is selected�
Notice
* Due to the graphics card might be optional or vary from models, the connectors of the
graphics card might be different. Consult local dealer for more information.
**
High-speed devices are recommended for USB 3.1 Gen1 ports whereas low-speed
devices, such as mouse or keyboard, are suggested to be plugged into the USB 2.0
ports.
