MSI X299 PRO - Overview of Components

24

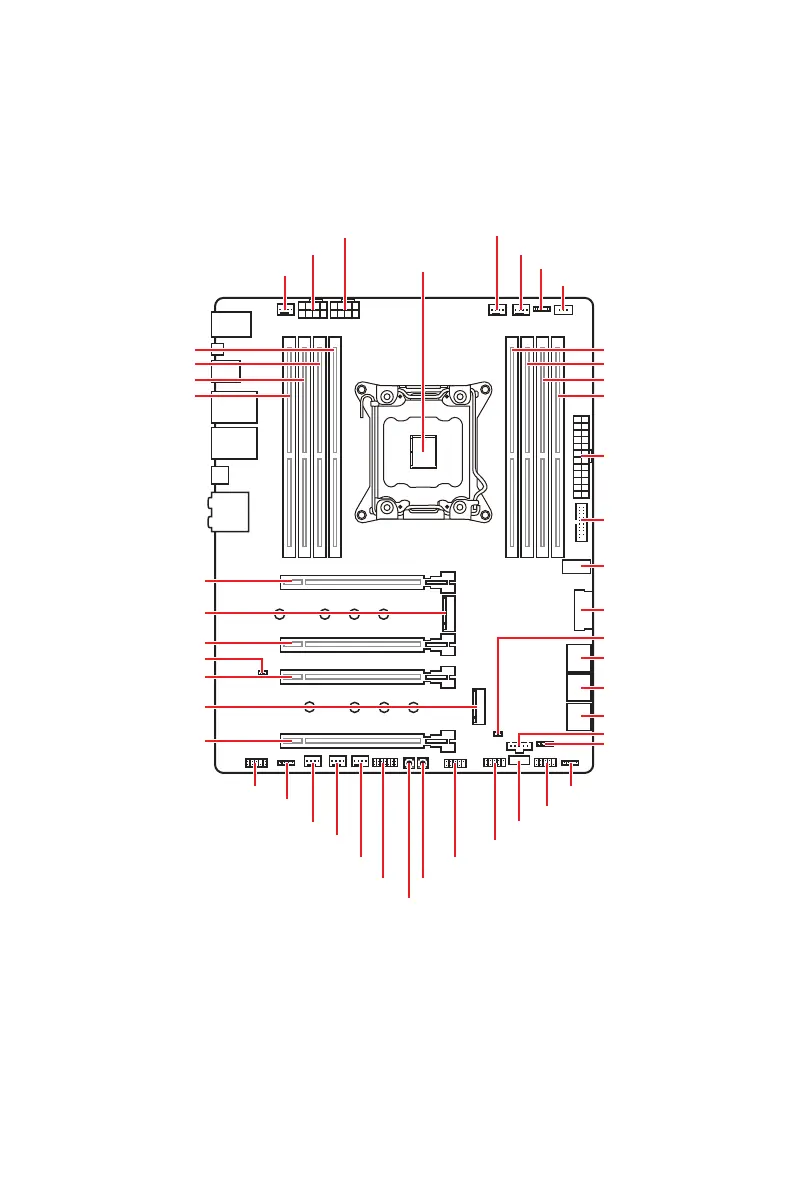

Overview of Components
Overview of Components
DIMMD1
DIMMA2
CPU_PWR2
CPU_PWR1
CPU Socket
DIMMA1
DIMMB2
DIMMB1
CPU_FAN1
POWER1
JTPM1
RESET1
JCORSAIR1
PUMP_FAN1
JUSB1
JUSB2
JUSB3
JUSB4
JUSB5
JTBT1
JFP2
JCI1
JRAINBOW1
JRAINBOW2
VRAID1
SYS_FAN2
SYS_FAN3
SYS_FAN4
JFP1
PCI_E1
M2_1
PCI_E2
JBAT1
M2_2
PCI_E3
PCI_E4
JRGB1
JAUD1
SATA▼1▲2
SATA▼3▲4
SATA▼5▲6
ATX_PWR1
DIMMD2
DIMMC1
DIMMC2
SYS_FAN1
