MSI X299 PRO - Installing M.2 Module

32
Overview of Components

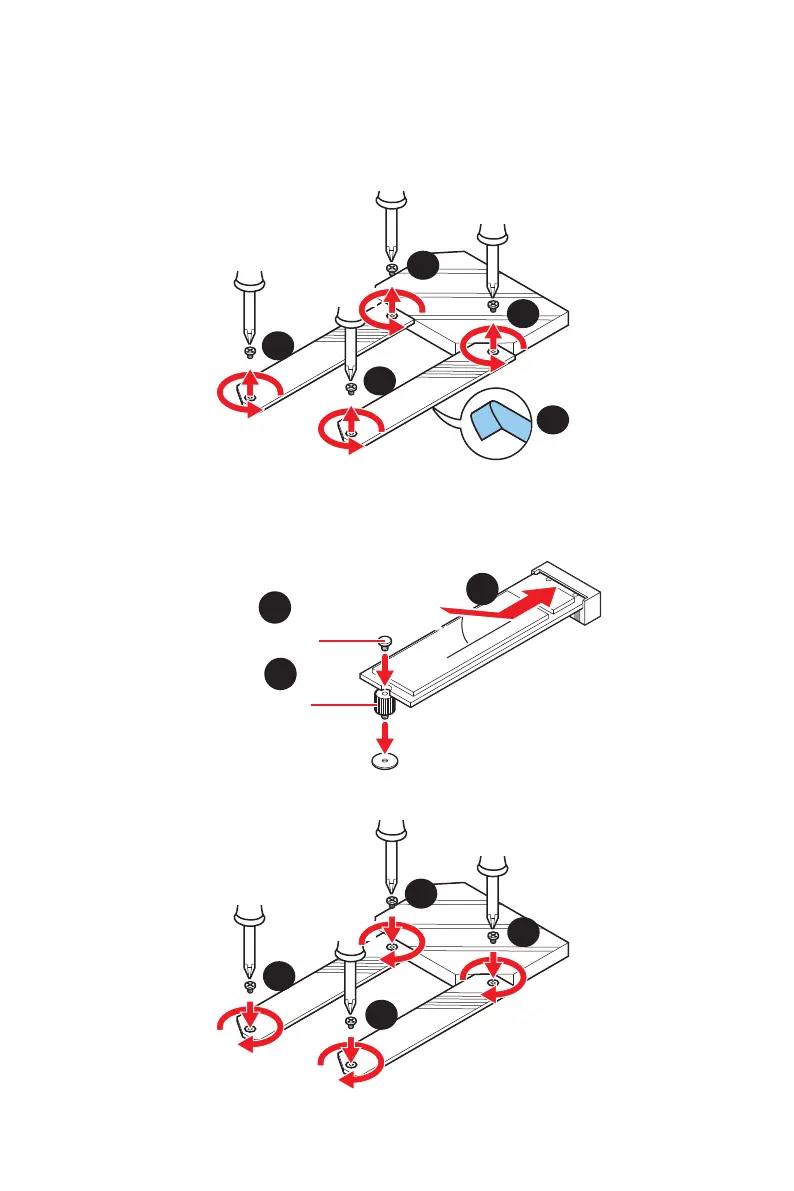

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
1
1
1
1
3. Move the position of the standoffs according to your M.2 SSDs length if need.
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
30º30º
5
4
3
8.5H screw
Standoff
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
6
6
6
6
