MSI X299 PRO - Page 34

34
Overview of Components
+
+

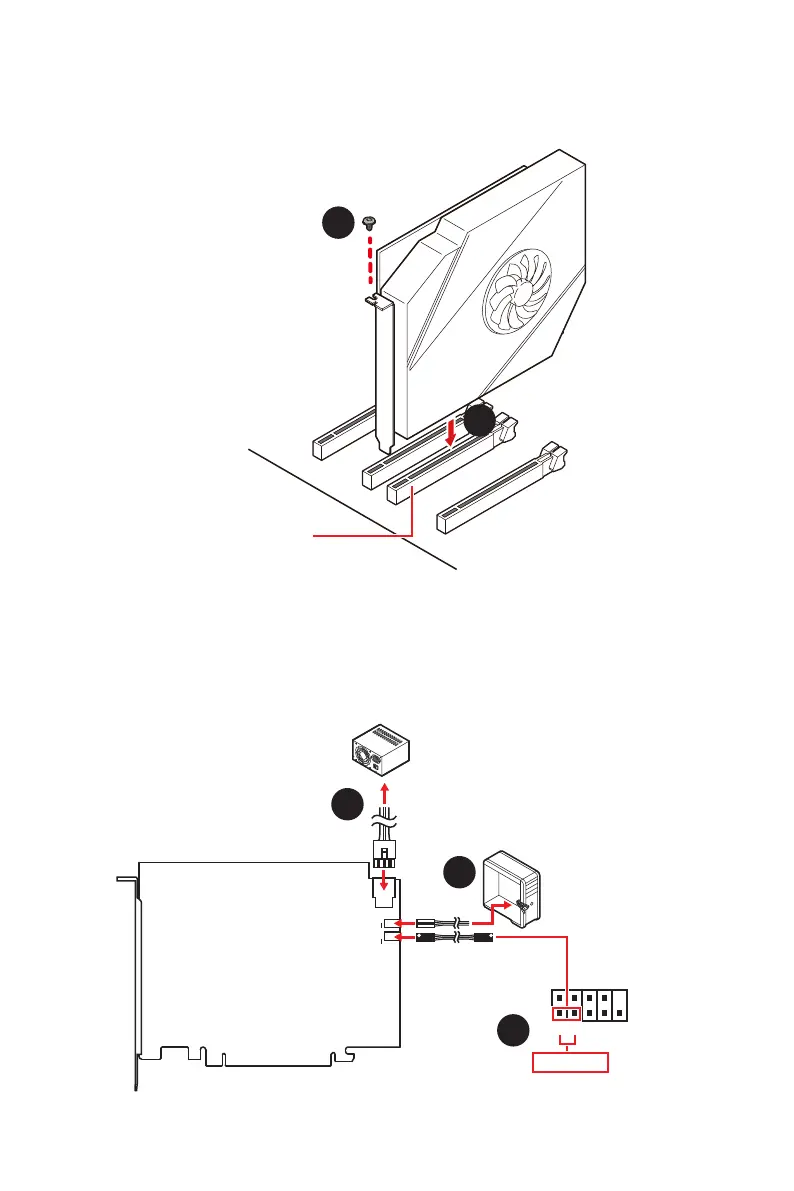

9. Insert the M.2 XPANDER-Z GEN 4 card into the PCI_E3 slot.
10. Use the screw to secure the M.2 XPANDER-Z GEN 4 card.
11. Connect the PCIE_PWR1 to the power supply.
12. Connect the case’s HDD LED cable to the JCASE connector.
13. Using the supplied HDD LED cable to connect the JMB connector and JFP1’s HDD
pins (pin 1 & pin3).
9
10
11
12
13
1
2 10
9
+ -
HDD LED
JFP1
PCI_E3
