MSI X299 TOMAHAWK Quick Start

19
󶳧󱝾󴘭󸵅
BAT1

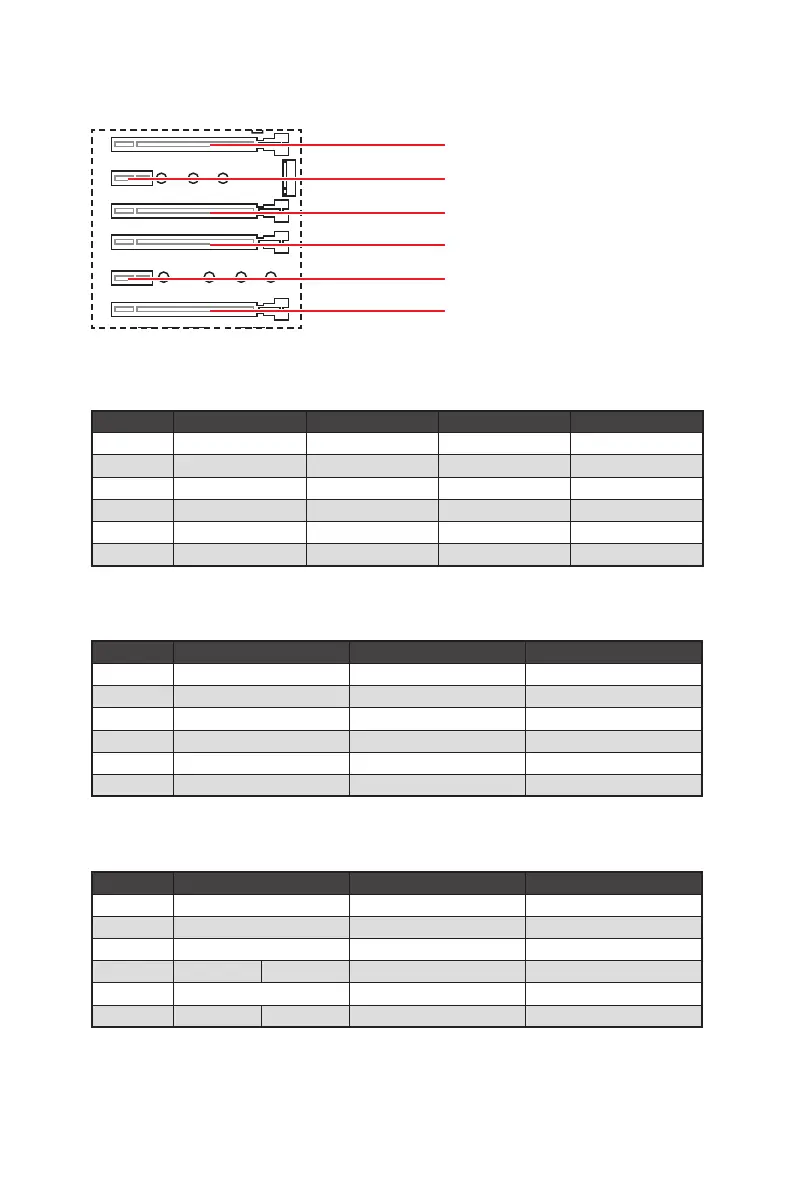

PCI_E1~6: PCIe 󳨩󲼾󳱥󴜖
PCI_E1: PCIe 3.0 x16 (CPU 󸶲󸹅)
PCI_E2: PCIe 3.0 x1 (PCH 󸶲󸹅)
PCI_E3: PCIe 3.0 x4 (PCH 󸶲󸹅)
PCI_E4: PCIe 3.0 x16 (CPU 󸶲󸹅)
PCI_E5: PCIe 3.0 x1 (PCH 󸶲󸹅)
PCI_E6: PCIe 3.0 x8 (CPU 󸶲󸹅)
PCIe 󳱤󴜖󹲙󲸩󸀮
󸵵󵫞󱛖 44-lane CPU
󴂲󱻴 󱻡󱙂 2-Way* 2-Way 3-Way
PCI_E1 @ 3.0 x16 @ 3.0 x16 @ 3.0 x16 @ 3.0 x16
PCI_E2 3.0 x1 3.0 x1 3.0 x1 3.0 x1
PCI_E3 3.0 x4 3.0 x4 3.0 x4 3.0 x4
PCI_E4 3.0 x16 @ 3.0 x16 3.0 x16 @ 3.0 x16
PCI_E5 3.0 x1 3.0 x1 3.0 x1 3.0 x1
PCI_E6 3.0 x8 3.0 x8 @ 3.0 x8 @ 3.0 x8
(@󾗜 󴂲󱻴󳱥󴜖󽘜 *󽘪 󴇴󱠶󶳧󱿷)
󸵵󵫞󱛖 28-lane CPU
󴂲󱻴 󱻡󱙂 2-Way 3-Way CF
PCI_E1 @ 3.0 x16 @ 3.0 x16 @ 3.0 x16
PCI_E2 3.0 x1 3.0 x1 3.0 x1
PCI_E3 3.0 x4 3.0 x4 3.0 x4
PCI_E4 3.0 x8 @ 3.0 x8 @ 3.0 x8
PCI_E5 3.0 x1 3.0 x1 3.0 x1
PCI_E6 3.0 x4 3.0 x4 @ 3.0 x4
(@󾗜 󴂲󱻴󳱥󴜖󽘜 CF󽘪 󱜲󹢔 CrossFire)
󸵵󵫞󱛖 16-lane CPU
󴂲󱻴 󱻡󱙂 2-Way 3-Way CF
PCI_E1 @ 3.0 x8 @ 3.0 x8 @ 3.0 x8
PCI_E2 3.0 x1 3.0 x1 3.0 x1
PCI_E3 3.0 x4 3.0 x4 3.0 x4
PCI_E4 3.0 x8 3.0 x4 @ 3.0 x8 @ 3.0 x4
PCI_E5 3.0 x1 3.0 x1 3.0 x1
PCI_E6 󶐁 3.0 x4  @ 3.0 x4
(@󾗜 󴂲󱻴󳱥󴜖󽘜 󾗜 󱘗󱿔󵫞󽘜 CF󾗜 󱜲󹢔 CrossFire)

MSI X299 TOMAHAWK Specifications

General

Brand	MSI
Model	X299 TOMAHAWK
Category	Motherboard
Language	English
