25
Overview of Components
24
131
12
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

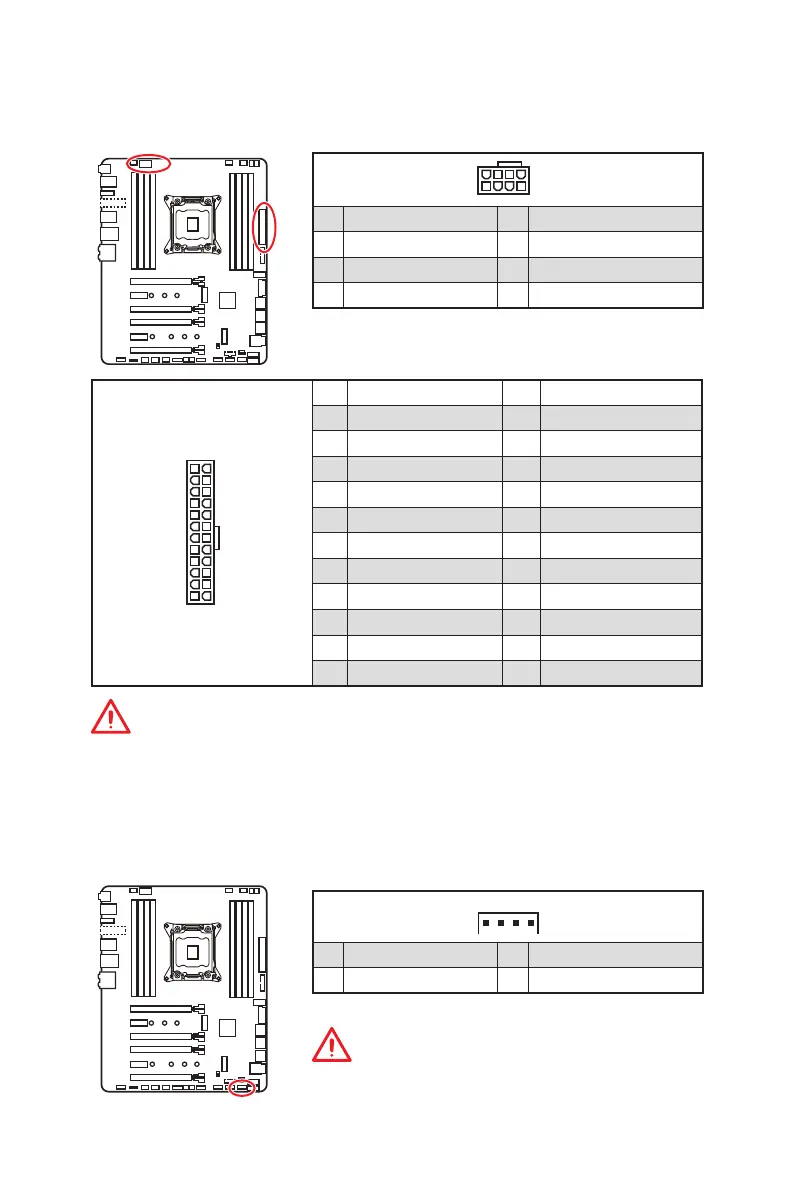

CPU_PWR1, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.
VRAID1: Virtual RAID on CPU Connector
This connector allows you to connect a VROC (Virtual RAID on CPU) Key module. You
need to enable the VROC function with Intel
®
RSTe (Intel
®
Rapid Storage Technology
enterprise) driver.
1
1 Ground 2 VCC3
3 Ground 4 SATA_RAID_KEY
Important
The VROC key module is purchased separately.
