Overview of Components

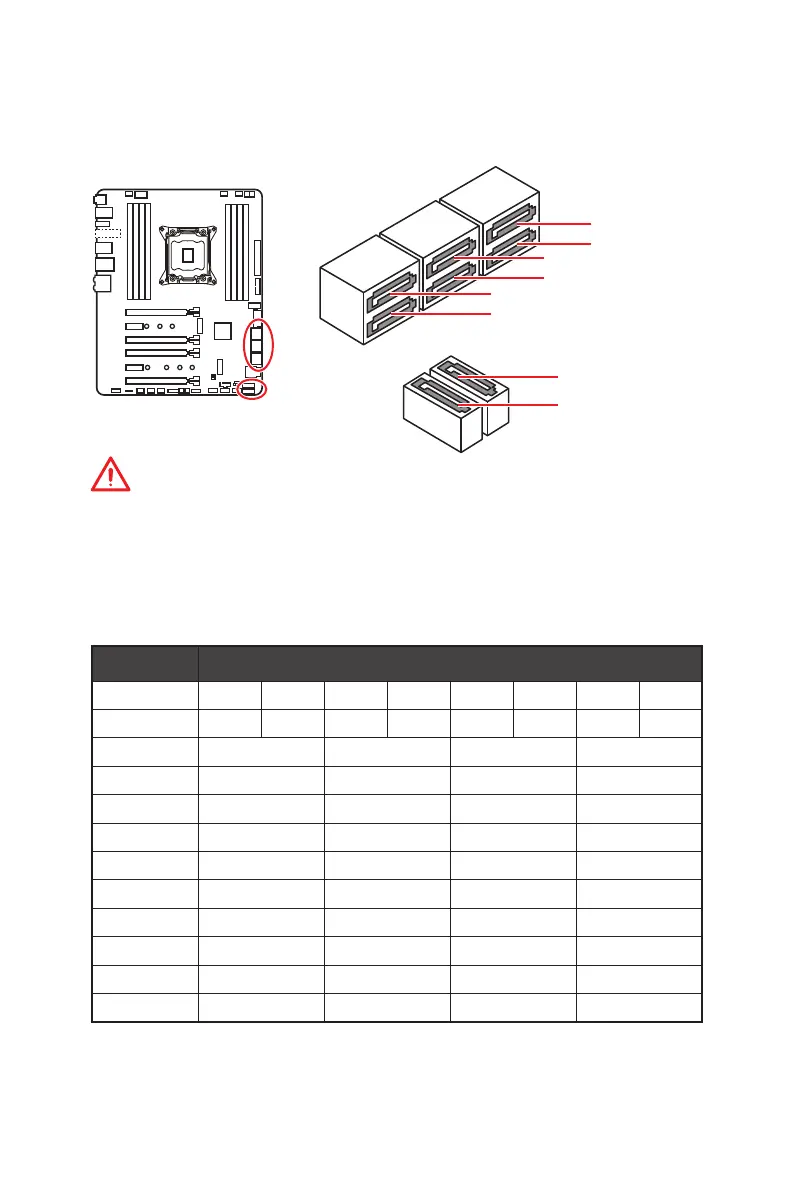

SATA1~8: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
y
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA2
SATA3
SATA5
SATA4
SATA6
SATA1
SATA8
SATA7
PCI_E3/ U.2/ M.2/ SATA Combination table
Slot Combination
PCI_E3 Empty Empty Empty Empty
U2_1
M2_1 PCIe SATA SATA PCIe
M2_2 PCIe SATA PCIe SATA
SATA1
SATA2
SATA3
SATA4
SATA5
SATA6
SATA7
SATA8
(SATA: M.2 SATA SSD, PCIe: M.2 PCIe SSD, : available, : unavailable)
