MSI X299 TOMAHAWK Quick Start

26
󶳧󱝾󴘭󸵅

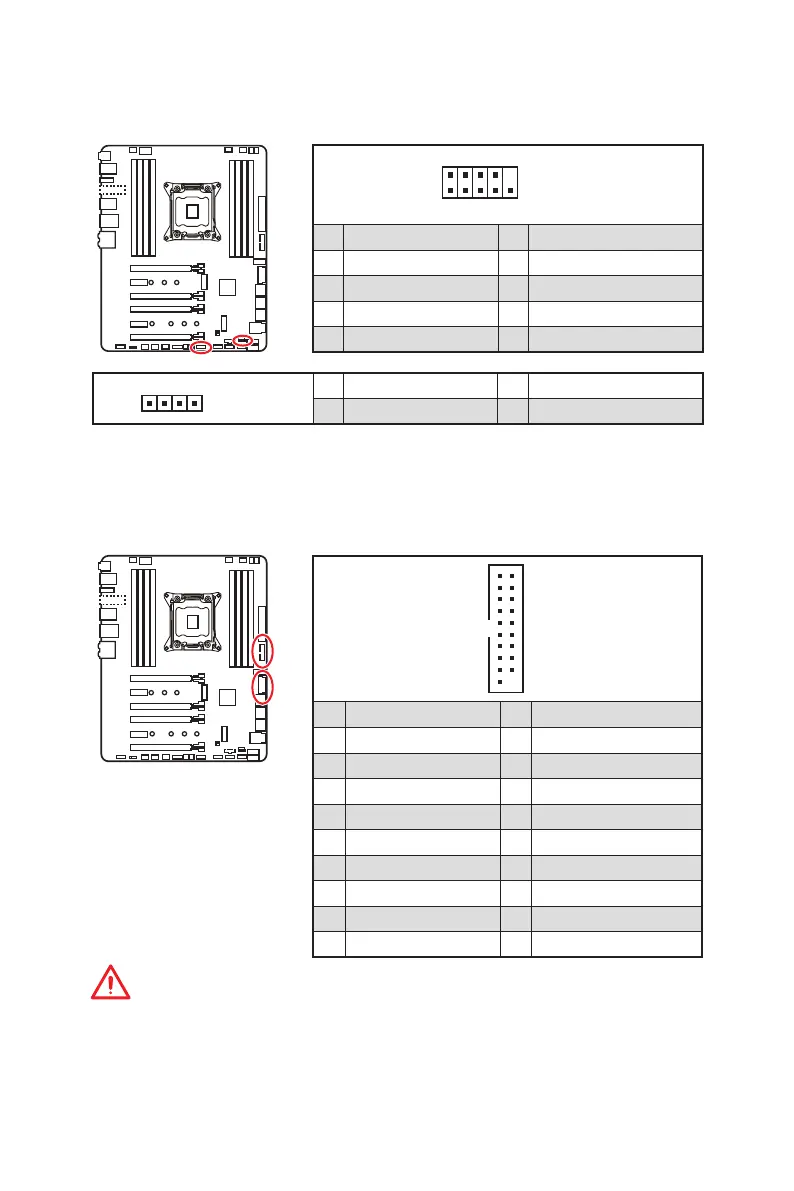

JFP1, JFP2: 󱴚󶷉󹪸󴋃󳰛󱿂
󸴐󱛪󳰛󱿂󸴗󳰛󷋼󱴚󶷉󹪸󴋃󱘔󵵙󳐴󱯃󲃅 LED 󵉉
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
JUSB3, JUSB4: USB 3.1 Gen1 󳰚󱿂
󸴐󱛩󳰛󱿂󱭩󸚞󳜂󲔩󱴚󶷉󹪸󴋃󱘔󴊜󸴗󳰛 USB 3.1 Gen1 󶔏󱿂
1
10 11
20
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
󴱅󳞲
󸛝󴱅󳞲󽘜󵫰󴻣󲃅󳰚󲔲󹙰󷄥󳖔󹲃󴦜󶁡󸴗󳰛󱝤󸺻󱭾󱿔󷃬󵵙󳮡󲕢

MSI X299 TOMAHAWK Specifications

General

Socket	LGA 2066
Chipset	Intel X299
Form Factor	ATX
Max Memory Support	128GB
PCIe x16 Slots	3
SATA 6Gb/s	8
M.2 Slots	2
U.2 Ports	1
USB 3.2 Gen 1 (Rear)	4
USB 2.0 (Rear)	2
Audio	Realtek ALC1220 Codec
RAID Support	0, 1, 5, 10
Memory Speed	2666/ 2400/ 2133 MHz
Storage Interface	SATA, M.2, U.2
USB 3.2 Gen 2 (Rear)	1 x Type-A, 1 x Type-C
LAN	Intel I219-V Gigabit LAN
