Overview of Components
CPU Socket
Please use the Torx screwdriver come with the AMD CPU and follow the steps below to
install the CPU.
1
3 2
Video Demonstration
Watch the video to learn how to unbox and install AMD Ryzen
Threadripper CPU.
https://youtu.be/yk4EpVUU03E

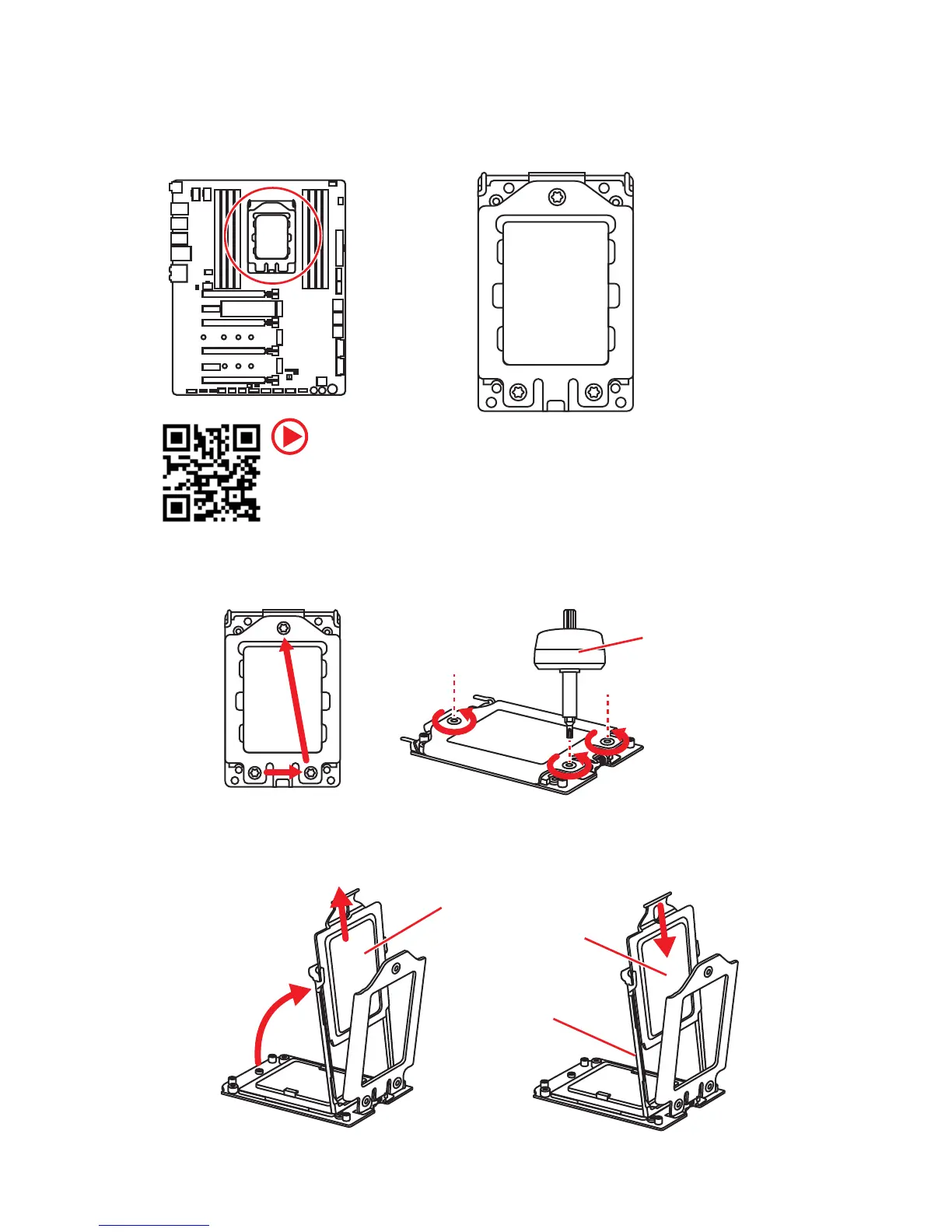

1. Loosen load plate screws with the AMD Torx screwdriver in the sequence 3→2→1.
The load plate will automatically lift up to the fully open position.
3 2
1
2. Slide out the External Cap from the frame rail, and then slide the Carrier Frame
with CPU into the frame rail. Make sure that the Carrier Frame with CPU has been
properly installed in the frame rail.
External Cap
AMD Torx screwdriver
Carrier Frame
with CPU
Frame rail
