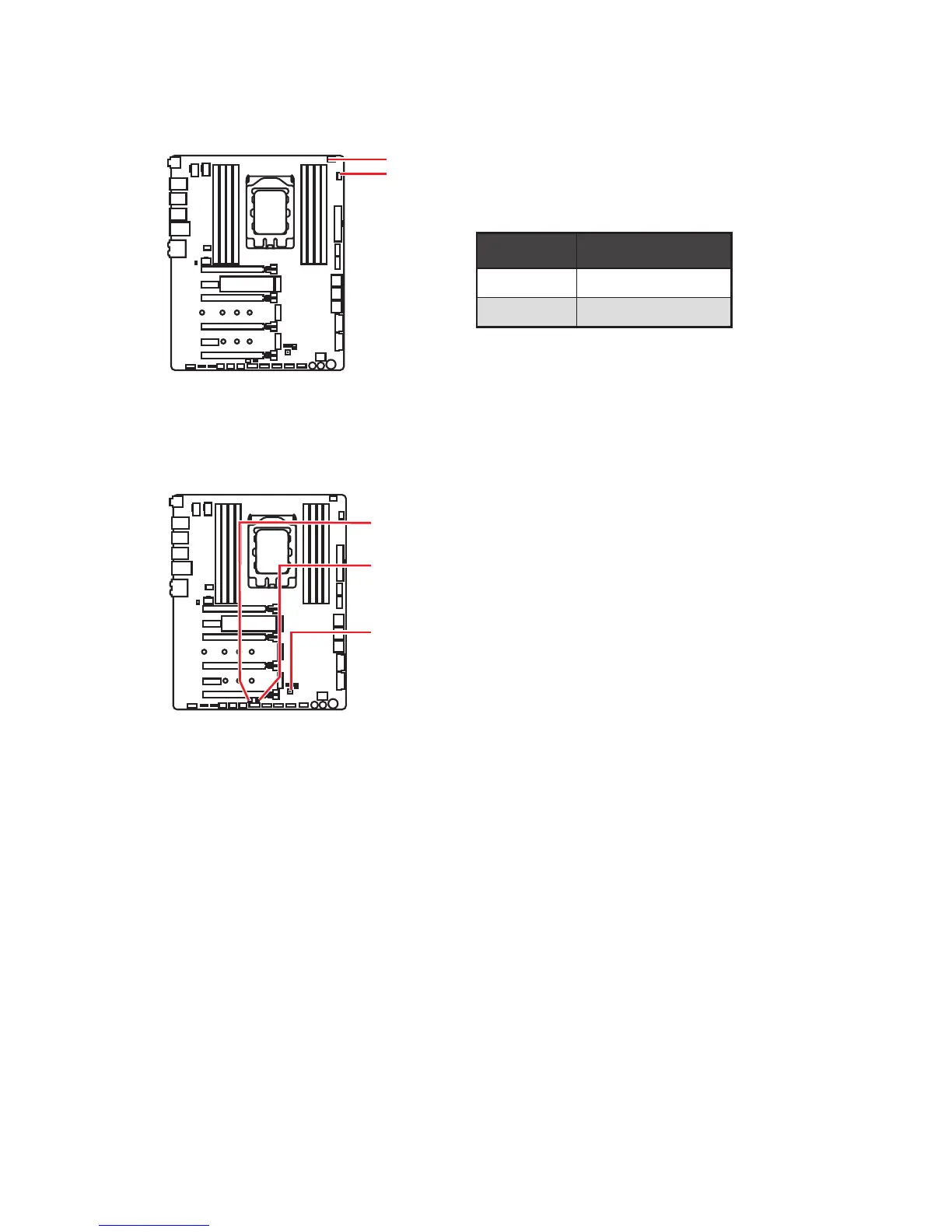

Onboard LEDs
LED color Fan control mode
Red PWM mode
Green DC mode
Fan LEDs
These LEDs indicate the fan control mode.
CPU_FAN1 LED
PUMP_FAN1 LED
LED light effect demonstration components
These components are used by retailers to demonstrate onboard LED light effects.
JPWRLED1 - LED power input
DEMOLED1 - Change LED light effects
JSEL1 - Short: press DEMOLED1 will change color
Open: press DEMOLED1 will change effects
