Onboard LEDs
Onboard LEDs

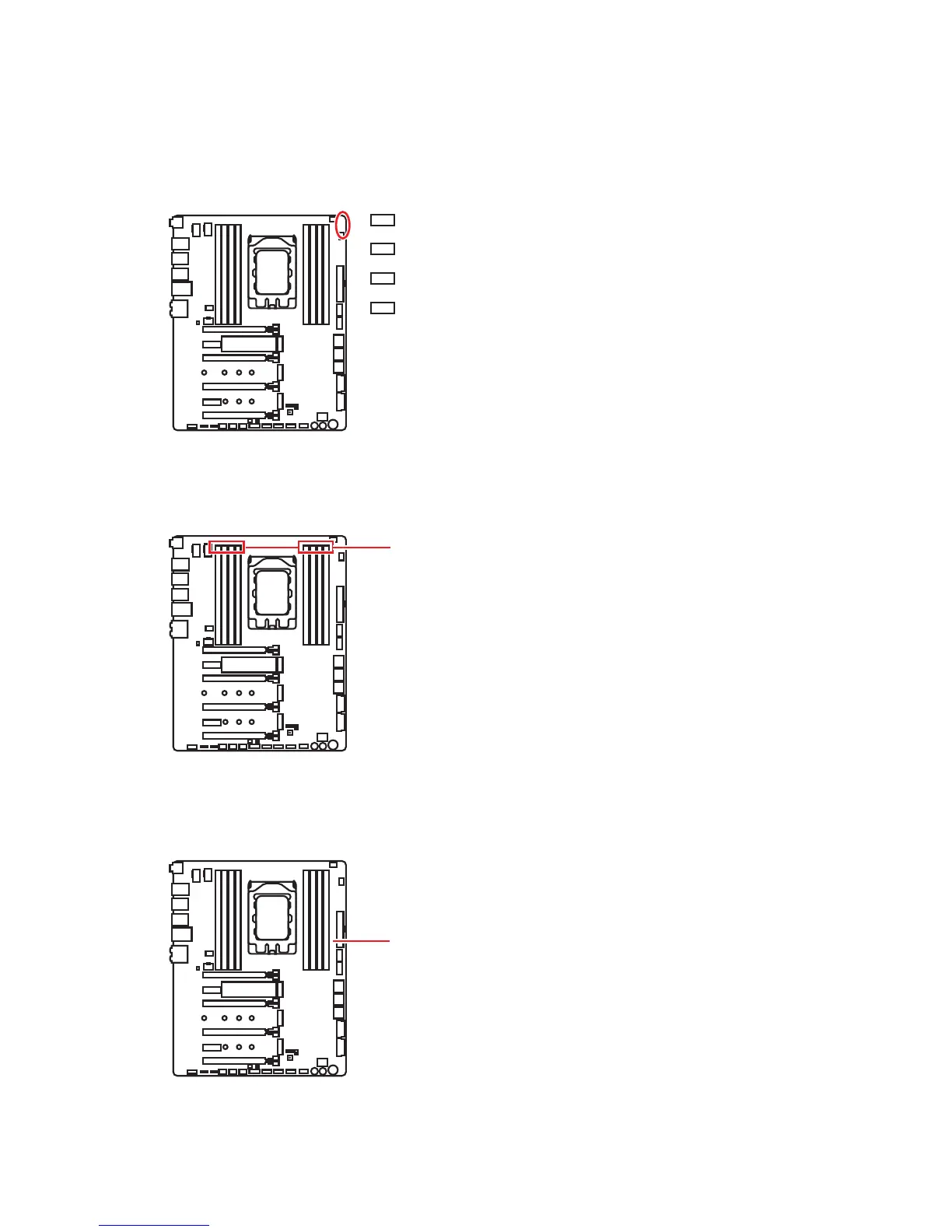

EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
DIMM LEDs
XMP LED
This LED indicates the XMP (Extreme Memory Profile) mode is enabled.
DIMM LEDs
These LED indicate the memory modules are installed.
XMP LED
