2-15
Hardware Setup

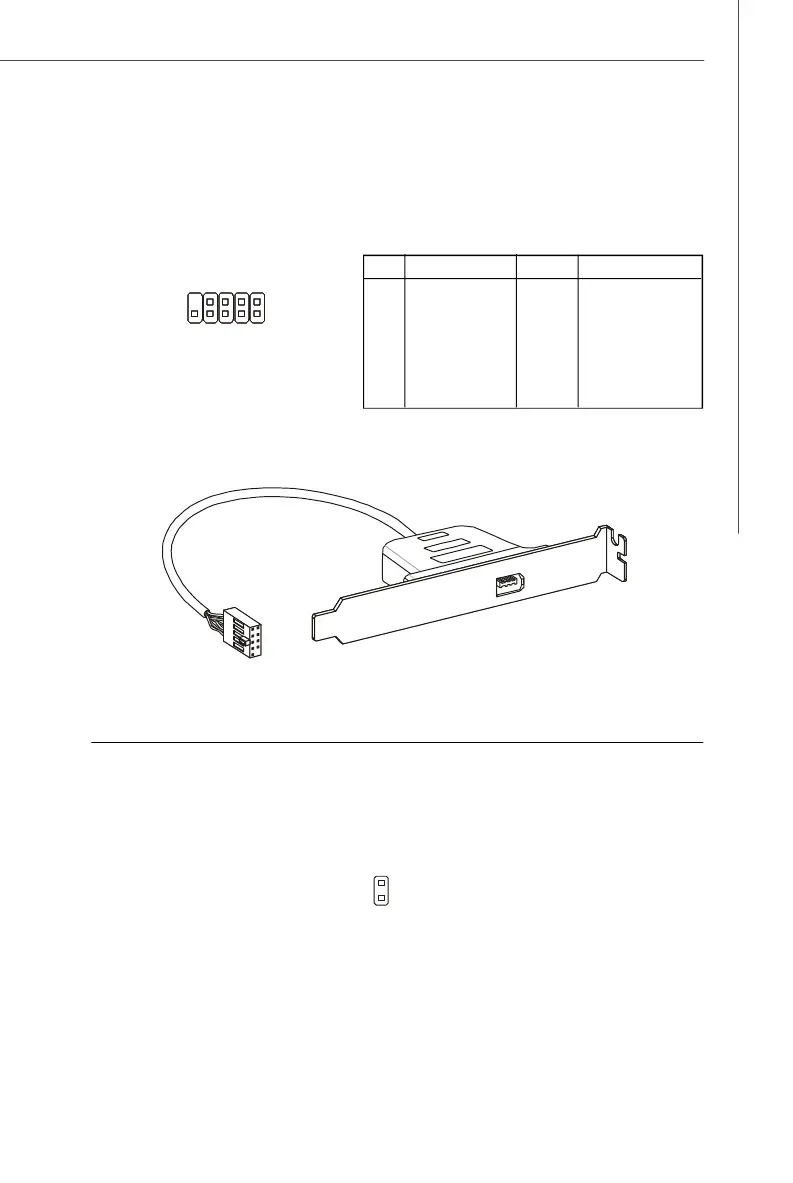

IEEE1394 Connector: J1394_1 (optional)
This connector allows you to connect the IEEE1394 device via an optional IEEE1394
bracket.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 Ground 2 Key (no pin)
3 Cablepower 4 Cablepower
5 TPB- 6 TPB+
7 Ground 8 Ground
9 TPA- 10 TPA+
IEEE1394 Bracket
JSP1
SPDIF
GND
J1394_1
1
2
9
10
SPDIF-Out Connector: JSP1 (Optional, for HDMI graphics card only)
This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format)
interface for digital audio transmission to the HDMI graphics card.
