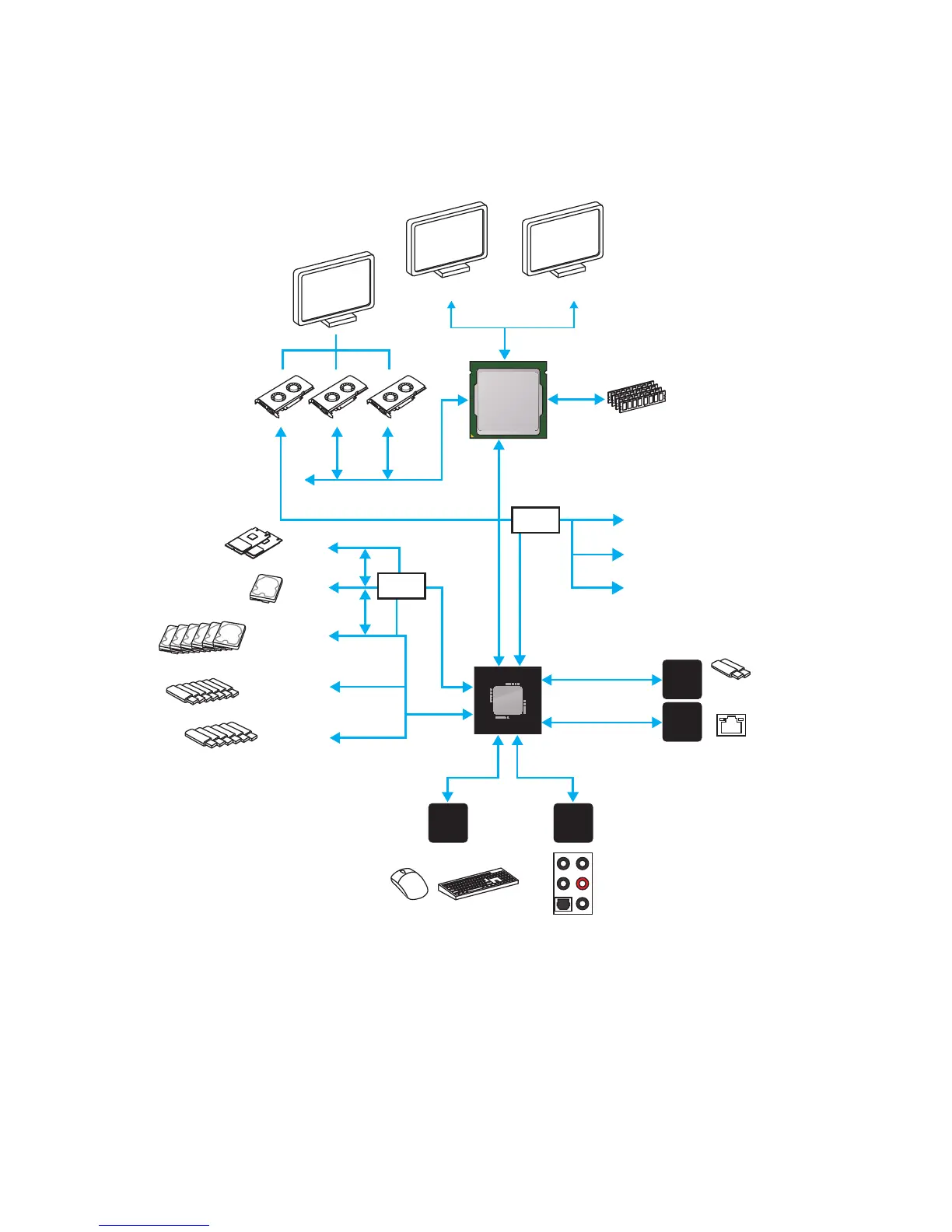

Block Diagram
Block Diagram
LPC Bus
2 x USB 3.1 Gen2
2 Channel DDR4 Memory
7 x USB 3.1 Gen1
1 x U.2
2 x M.2
6 x SATA 6Gb/s
6 x USB 2.0
PCI Express Bus
PCI Express Bus
P/S2 Mouse / Keyboard
Audio Jacks
DMI 3.0
Z170
CPU
NV6793
Super I/O
Realtek
ALC1150
ASMEDIA
ASM1142
PCI Express Bus
HDMI DVI-D
Switch
PCIe x1
PCIe x1
PCIe x1
Intel
i219
Switch
