MSI Z77 MPower series - LED Status IndCators

1-36
Gettng Started

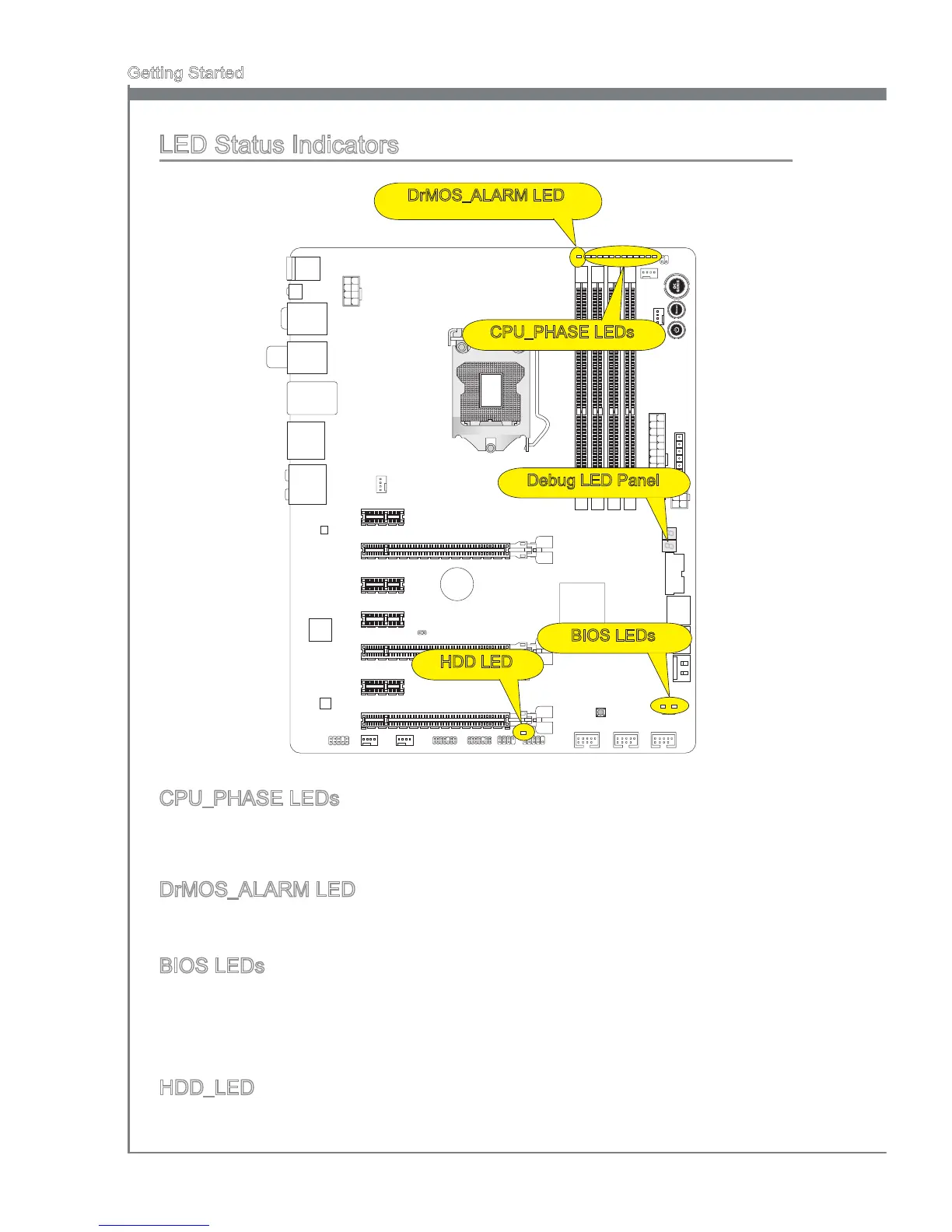

LED Status Indcators
CPU_PHASE LEDs
These LEDs wll change accordng to CPU loadng. The hgher the power phase num-
ber, the more relable the power 󰘱ow to the processor.
DrMOS_ALARM LED
Ths LED wll lght red when DrMOS overheat.
BIOS LEDs
These LEDs are used to dstngush BIOS A or B s n operaton.
When the left LED lghts blue, the BIOS A s n operaton.
When the rght LED lghts green, the BIOS B s n operaton.
HDD_LED
Ths LED wll 󰘱ash whenever there's a dsk actvty.
CPU_PHASE LEDs
DrMOS_ALARM LED
BIOS LEDs
HDD LED
Debug LED Panel
