MSL MSF-390 - Applied Model Components

AIR COMPRESSOR MANUAL
- 9 -
4. Applied Model

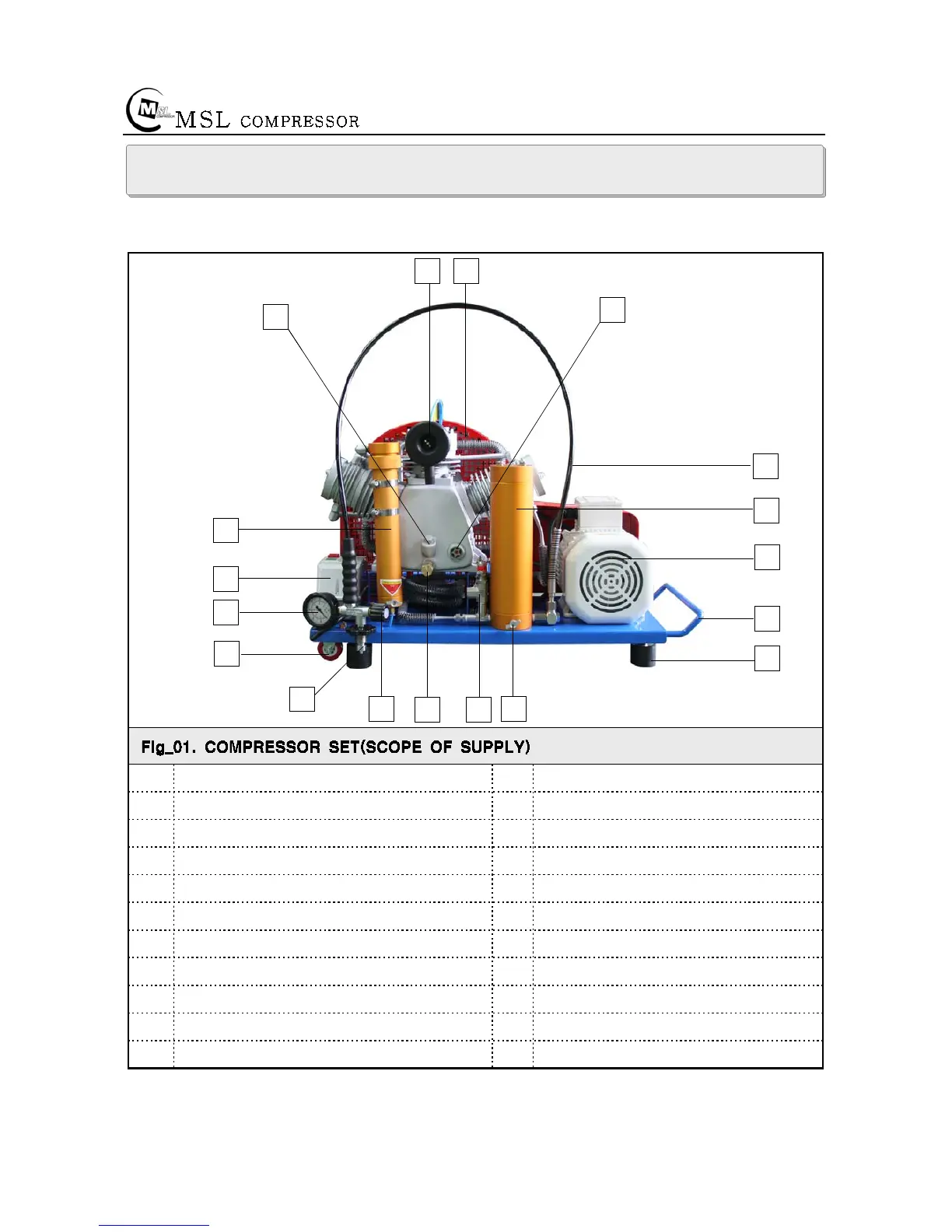

◩ (Fig_01) MODEL : MSF-390
15
14
13
12
11
16
1718
.1
2
3
4
5
8
9
10
7
6
1 OIL IN-LET 10 DRAIN VALVE (MANUAL)
2 SEPARATOR 11 RUBBER
3 ELECTRIC CONTROL BOX 12 HANDLE
4 PRESSURE GAUGE 13 MOTOR
5 TROLLEY WHEEL 14 DISCHARGE FILTER HOUSING(MP21)
6CONNECTION 15PRESSURE HOSE
7 DISCHARGE VALVE(STOP VALVE) 16 OIL GAUGE
8 OIL OUT-LET 17 SAFETY PULLEY NET
9 3STAGE SAFETY VALVE 18 SUCTION FILTER
