QM7500 Technical Manual
8 Servicing QM31930/03093 Rev AD

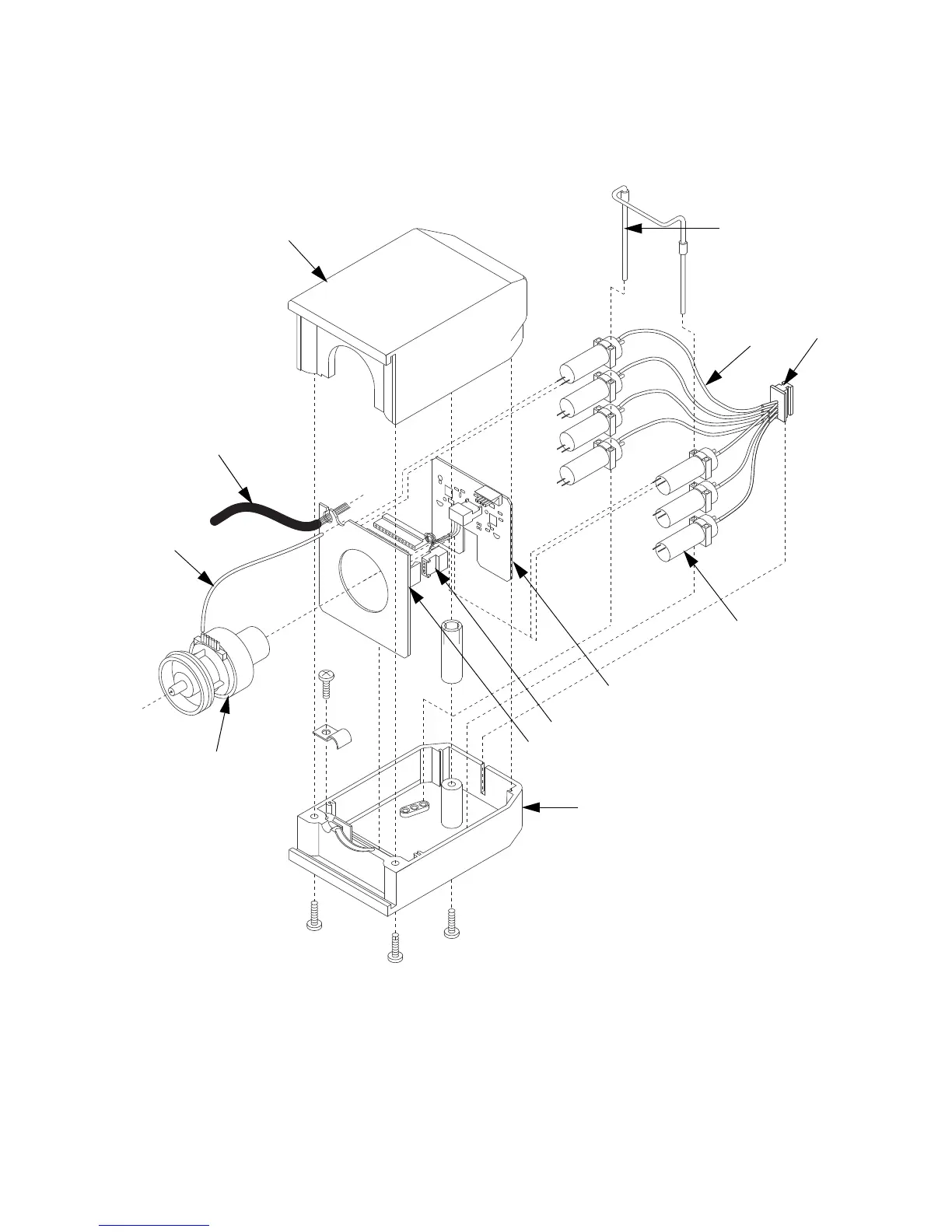

Printhead Assembly
1
2
3
4
5
6
7
8
9
10
12
1. Valve Retaining Clip
2. Tubing (Nozzle)
3. Nozzle Block
4. Valve
5. Photocell Board
6. IDC Connector
7. Valve Board
8. Printhead Button
9. Regulator
10. Tubing (Valve)
11. Cable from Controller
12. Printhead Top
11
