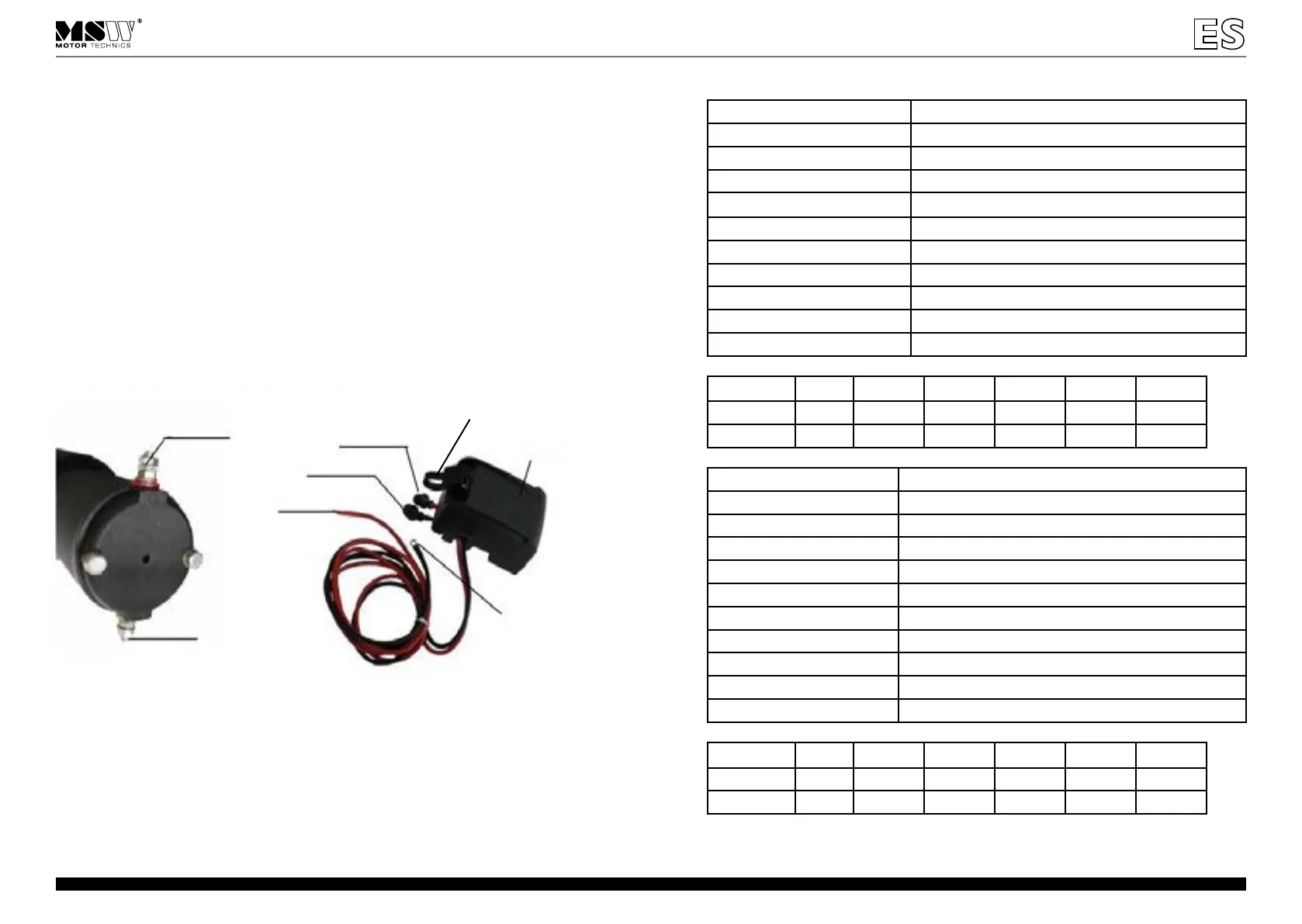

CONEXIÓN ELÉCTRICA
Una batería normal es suciente para trabajar con el del cabrestante. Se necesitan
Una batería totalmente cargada y cables intactos. El motor del vehículo debe estar
activado mientras del uso del cabrestante. Garantizar la correcta conexión eléctrica
(ver el diagrama abajo).
1. Conecte el cable rojo corto al relé rojo del motor (+)
2. Conecte el cable negro corto al relé nero del motor (-)
3. Conecte el cable rojo largo al relé positivo de la batería
4. Conecte el cable negro largo al relé negativo de la batería.
Motor +
(rojo)
Conexión remota
A la batería +
(rojo
)
Al motor +
(rojo)
Al motor -
(negro
)
A la batería -
(negro)
Caja de control
Motor -
(blanco)
Modelo PROPULLATOR 3500-A
Tracción máxima 3500 lbs (1587 kg)
Motor 1,2 PS 12V
Comando Telecomando por cable o sin cable
Caja de cambios Diferencial de engranaje planetario
Reducción de la transmisión 153:1
Freno Incluido automáticamente en el tambor
Cable de acero Ø 5,5mm x10m
Dimensiones del tambor Ø 31,75 mm x 72 mm
Dimensiones externas 300x105x105 mm
Peso 8 kg
Peso kg 0 454 907 1360 1587
Velocidad Mpm* 2,8 2,0 1,1 0,7 0,6
Amperio A 12 60 90 150 180
Modelo PROPULLATOR 2000-A
Tracción máxima 2000 lbs (907 kg)
Motor 1,0 PS 12V
Comando Telecomando por cable o sin cable
Caja de cambios Diferencial de engranaje planetario
Reducción de la transmisión 153:1
Freno Incluido automáticamente en el tambor
Cable de acero Ø 4mm x15,2m
Dimensiones del tambor Ø 31,5 mm x 72 mm
Dimensiones externas 285x105x105 mm
Peso 6,5 kg
Peso kg 0 227 454 680 907
Velocidad Mpm* 3,2 2,8 2,3 1,6 0,9
Amperio A 12 30 60 75 90
*Metros por minuto
ESPAÑOL
62
ESPAÑOLDEUTSCH
63
