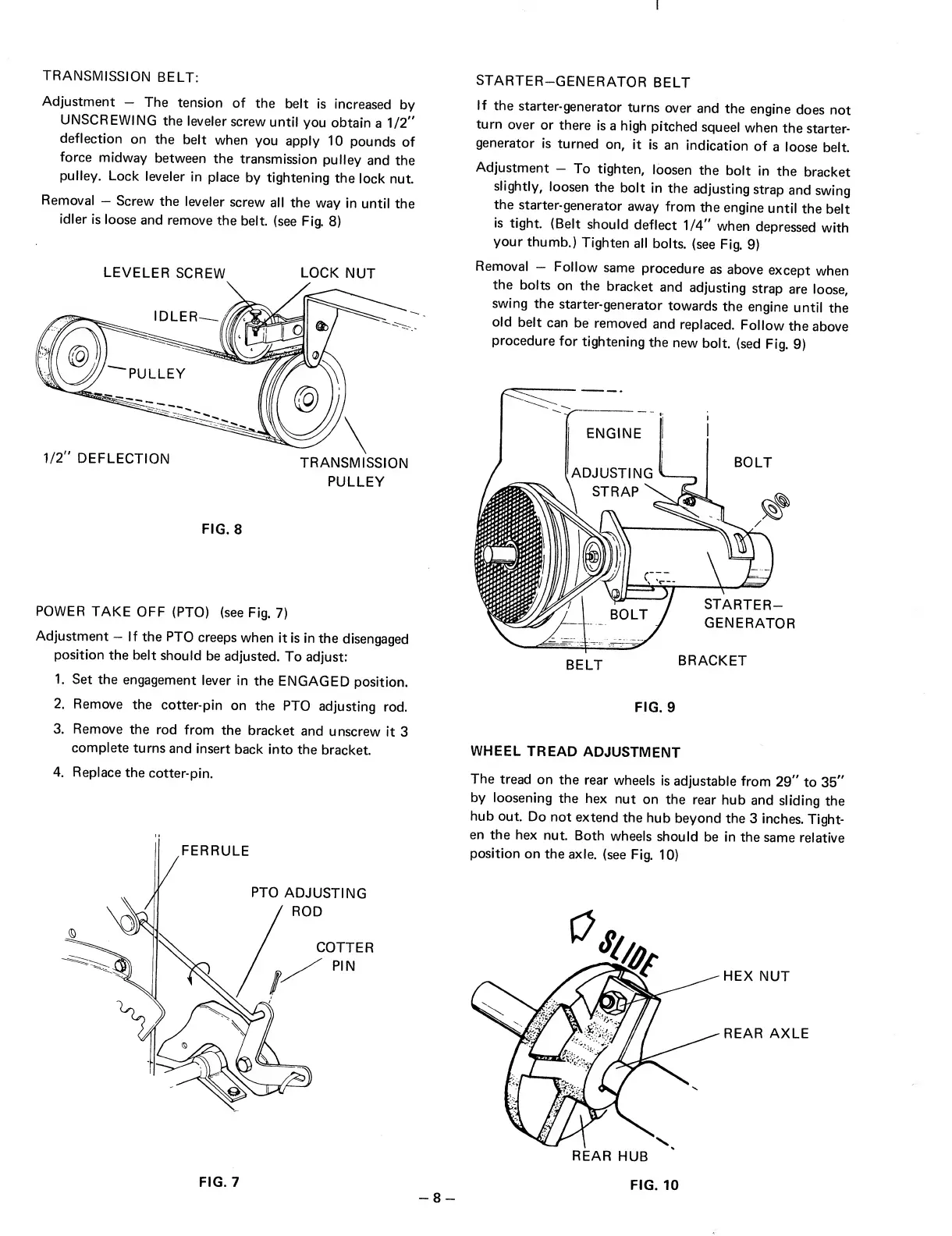

TRANSMISSION
BELT:
Adjustment
-
The
tension
of
the
belt
is
increased
by
UNSCREWING
the
leveler
screw
until
you
obtain
a
1/2”
deflection
on
the
belt
when
you
apply
10
pounds
of
force
midway
between
the
transmission
pulley
and
the
pulley.
Lock
leveler
in
place
by
tightening
the
lock
nut.
Removal
Screw
the
leveler
screw
all
the
way
in
until
the
Idler
Is
loose
and
remove
the
belt,
(see
Fig.
8)
LEVELER
SCREW
LOCK
NUT
FIG.
8
POWER
TAKE
OFF
(PTO)
(see
Fig.
7)
Adjustment
-
If
the
PTO
creeps
when
It
is
in
the
disengaged
position
the
belt
should
be
adjusted.
To
adjust:
1.
Set
the
engagement
lever
in
the
ENGAGED
position.
2.
Remove
the
cotter-pin
on
the
PTO
adjusting
rod.
3.
Remove
the
rod
from
the
bracket
and
unscrew
it
3
complete
turns
and
insert
back
into
the
bracket.
4.
Replace
the
cotter-pin.
STARTER-GENERATOR
BELT
If
the
starter-generator
turns
over
and
the
engine
does
not
turn
over
or
there
Is
a
high
pitched
squeel
when
the
starter-
generator
Is
turned
on,
it
is
an
indication
of
a
loose
belt.
Adjustment
-
To
tighten,
loosen
the
bolt
in
the
bracket
slightly,
loosen
the
bolt
in
the
adjusting
strap
and
swing
the
starter-generator
away
from
the
engine
until
the
belt
is
tight.
(Belt
should
deflect
1/4”
when
depressed
with
your
thumb.)
Tighten
ail
bolts,
(see
Fig.
9)
Removal
-
Follow
same
procedure
as
above
except
when
the
bolts
on
the
bracket
and
adjusting
strap
are
loose,
swing
the
starter-generator
towards
the
engine
until
the
old
belt
can
be
removed
and
replaced.
Follow
the
above
procedure
for
tightening
the
new
bolt,
(sed
Fig.
9)
WHEEL
TREAD
ADJUSTMENT
The
tread
on
the
rear
wheels
is
adjustable
from
29”
to
35”
by
loosening
the
hex
nut
on
the
rear
hub
and
sliding
the
hub
out.
Do
not
extend
the
hub
beyond
the
3
inches.
Tight¬
en
the
hex
nut.
Both
wheels
should
be
in
the
same
relative
position
on
the
axle,
(see
Fig.
10)
REAR
HUB
FIG.
7
