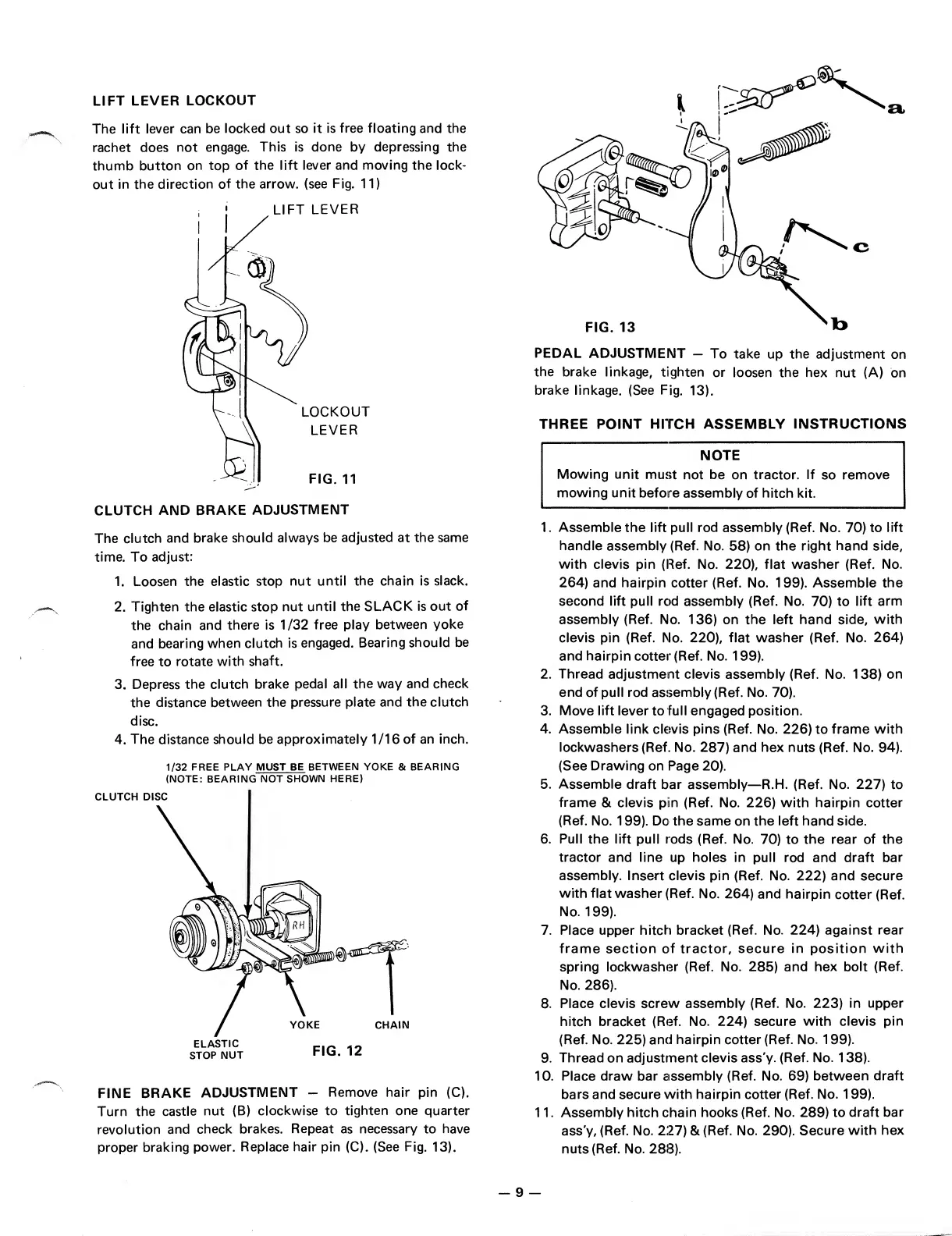

LIFT LEVER LOCKOUT
The lift lever can be locked out so it is free floating and the
rachet does not engage. This is done by depressing the
thumb button on top of the lift lever and moving the lock¬
out in the direction of the arrow, (see Fig. 11)
CLUTCH AND BRAKE ADJUSTMENT
The clutch and brake should always be adjusted at the same
time. To adjust:
1. Loosen the elastic stop nut until the chain is slack.
2. Tighten the elastic stop nut until the SLACK is out of
the chain and there is 1/32 free play between yoke
and bearing when clutch is engaged. Bearing should be
free to rotate with shaft.
3. Depress the clutch brake pedal all the way and check
the distance between the pressure plate and the clutch
disc.
4. The distance should be approximately 1/16 of an inch.
1/32 FREE PLAY MUST BE BETWEEN YOKE & BEARING
(NOTE: BEARING NOT SHOWN HERE)
FINE BRAKE ADJUSTMENT - Remove hair pin (C).
Turn the castle nut (B) clockwise to tighten one quarter
revolution and check brakes. Repeat as necessary to have
proper braking power. Replace hair pin (C). (See Fig. 13).
PEDAL ADJUSTMENT — To take up the adjustment on
the brake linkage, tighten or loosen the hex nut (A) on
brake linkage. (See Fig. 13).
THREE POINT HITCH ASSEMBLY INSTRUCTIONS
NOTE
Mowing unit mu<;t not be on tractor. If so remove
mowing unit before assembly of hitch kit.
1. Assemble the lift pull rod assembly (Ref. No. 70) to lift
handle assembly (Ref. No. 58) on the right hand side,
with clevis pin (Ref. No. 220), flat washer (Ref. No.
264) and hairpin cotter (Ref. No. 199). Assemble the
second lift pull rod assembly (Ref. No. 70) to lift arm
assembly (Ref. No. 136) on the left hand side, with
clevis pin (Ref. No. 220), flat washer (Ref. No. 264)
and hairpin cotter (Ref. No. 199).
2. Thread adjustment clevis assembly (Ref. No. 138) on
end of pull rod assembly (Ref. No. 70).
3. Move lift lever to full engaged position.
4. Assemble link clevis pins (Ref. No. 226) to frame with
lockwashers (Ref. No. 287) and hex nuts (Ref. No. 94).
(See Drawing on Page 20).
5. Assemble draft bar assembly—R.H. (Ref. No. 227) to
frame & clevis pin (Ref. No. 226) with hairpin cotter
(Ref. No. 199). Do the same on the left hand side.
6. Pull the lift pull rods (Ref. No. 70) to the rear of the
tractor and line up holes in pull rod and draft bar
assembly. Insert clevis pin (Ref. No. 222) and secure
with flat washer (Ref. No. 264) and hairpin cotter (Ref.
No. 199).
7. Place upper hitch bracket (Ref. No. 224) against rear
frame section of tractor, secure in position with
spring lockwasher (Ref. No. 285) and hex bolt (Ref.
No. 286).
8. Place clevis screw assembly (Ref. No. 223) in upper
hitch bracket (Ref. No. 224) secure with clevis pin
(Ref. No. 225) and hairpin cotter (Ref. No. 199).
9. Thread on adjustment clevis ass'y- (Ref- No. 138).
10. Place draw bar assembly (Ref. No. 69) between draft
bars and secure with hairpin cotter (Ref. No. 199).
11. Assembly hitch chain hooks (Ref. No. 289) to draft bar
ass'y, (Ref. No. 227) & (Ref. No. 290). Secure with hex
nuts (Ref. No. 288).
