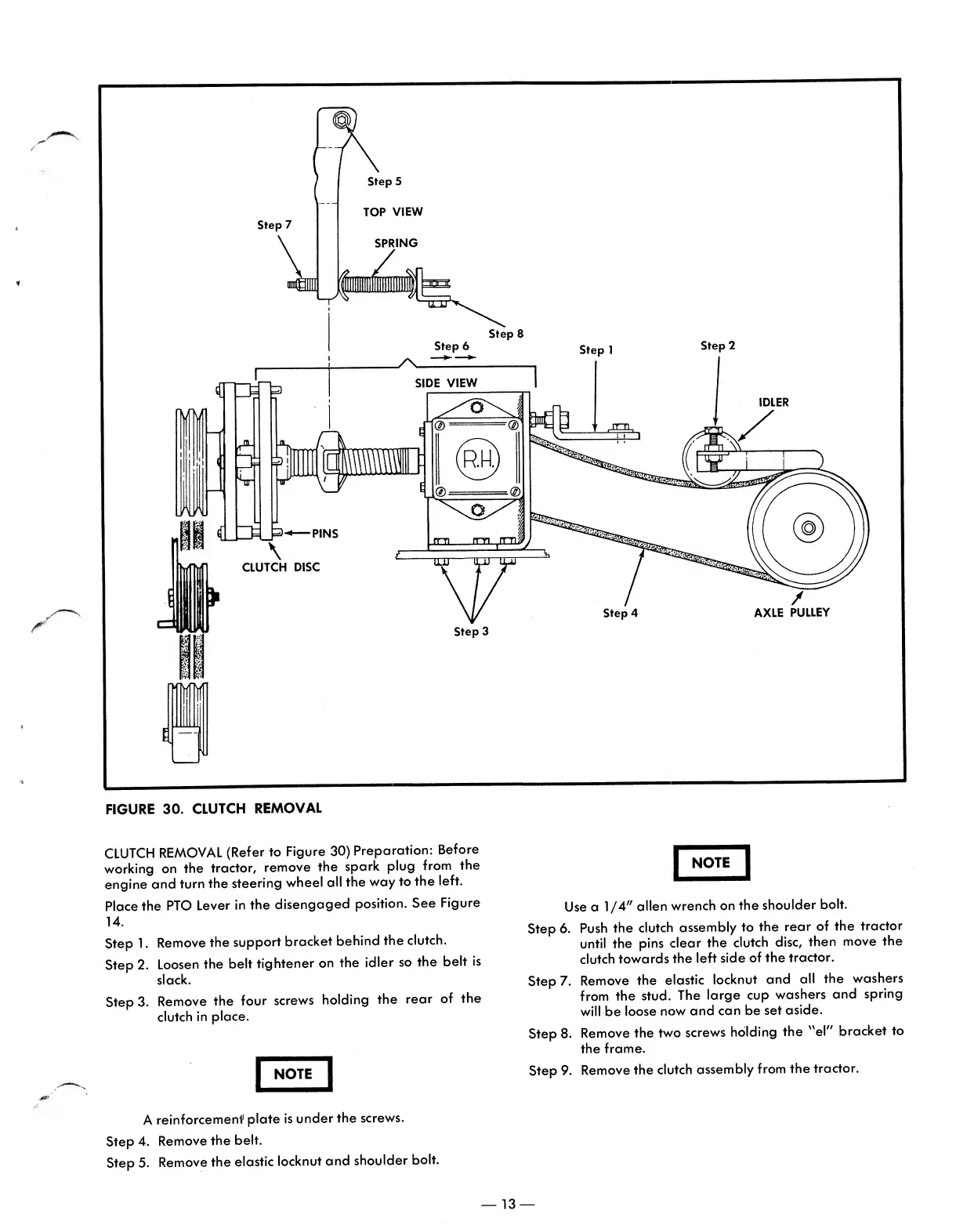

FIGURE 30. CLUTCH REMOVAL
CLUTCH REMOVAL (Refer to Figure 30) Preparation: Before
working on the tractor, remove the spark plug from the
engine and turn the steering wheel all the way to the left.
Place the PTO Lever in the disengaged position. See Figure
14.
Step 1. Remove the support bracket behind the clutch.
Step 2. Loosen the belt tightener on the idler so the belt is
slack.
Step 3. Remove the four screws holding the rear of the
clutch in place.
A reinforcement plate is under the screws.
Step 4. Remove the belt.
Step 5. Remove the elastic locknut and shoulder bolt.
Use a 1 /4" alien wrench on the shoulder bolt.
Step 6. Push the clutch assembly to the rear of the tractor
until the pins clear the clutch disc, then move the
clutch towards the left side of the tractor.
Step 7. Remove the elastic locknut and all the washers
from the stud. The large cup washers and spring
will be loose now and can be set aside.
Step 8. Remove the two screws holding the "el" bracket to
the frame.
Step 9. Remove the clutch assembly from the tractor.
