MTD 142-760 - Page 28

I

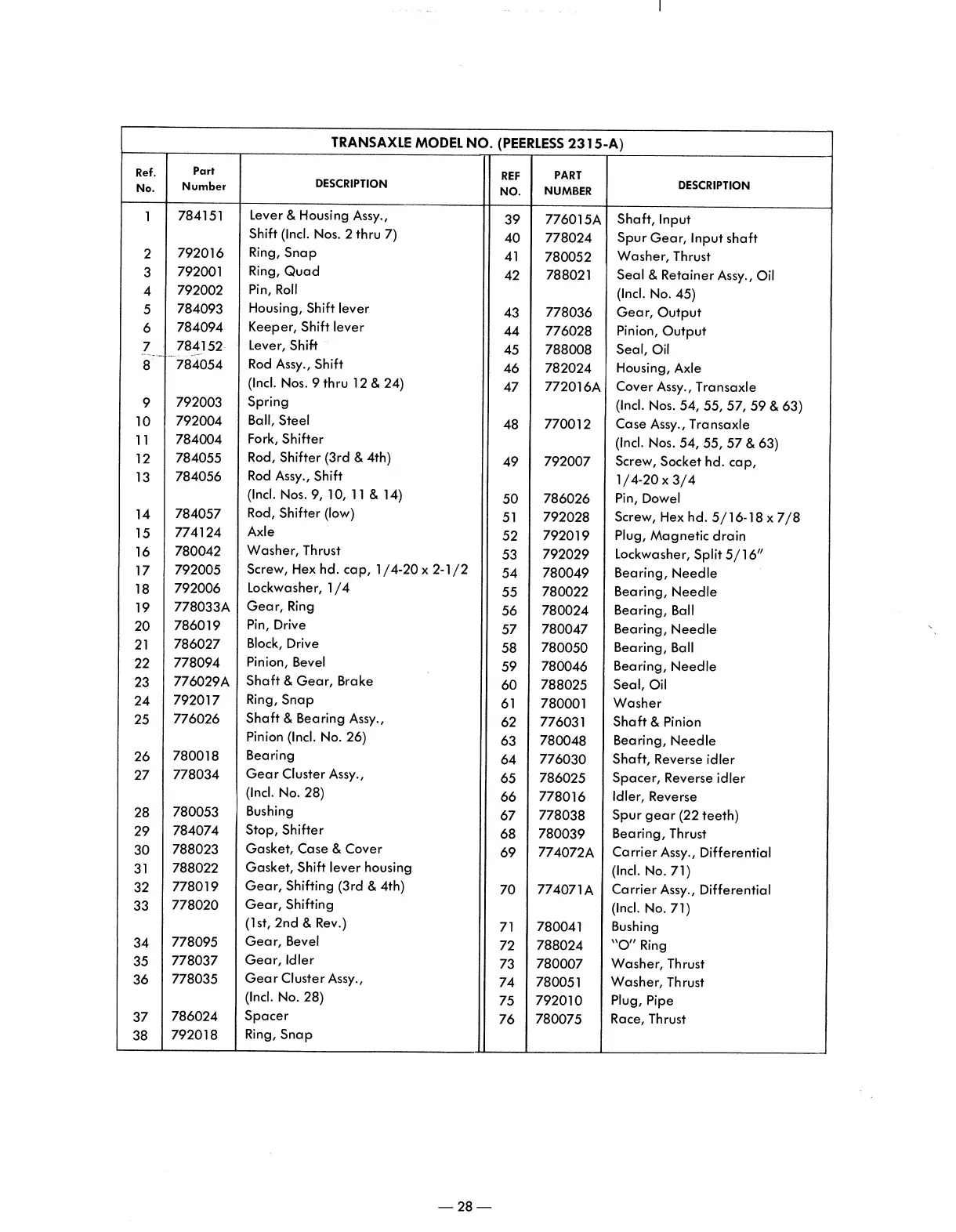

TRANSAXLE MODEL NO. (PEERLESS 2315-A)
Ref.
Part
REF
PART
No.
Number
DESCRIPTION
NO.
NUMBER
DESCRIPTION
1
784151
Lever & Housing Assy.,
39
776015A
Shaft, Input
Shift (Incl. Nos. 2 thru 7)
40
778024 Spur Gear, Input shaft
2
792016
Ring, Snap
41
780052
Washer, Thrust
3
792001
Ring, Quad
42
788021 Seal & Retainer Assy., Oil
4
792002
Pin, Roll
(Incl. No. 45)
5
784093
Housing, Shift lever
43
778036
Gear, Output
6
784094
Keeper, Shift lever
44
776028
Pinion, Output
7
784152
Lever, Shift
45
788008
Seal, Oil
8
784054
Rod Assy., Shift
46
782024
Housing, Axle
(Inch Nos. 9 thru 12&24)
47
772016A
Cover Assy., Transaxle
9
792003
Spring
(Incl. Nos. 54, 55, 57, 59 & 63)
10
792004
Ball, Steel
48
770012 Case Assy., Transaxle
11
784004
Fork, Shifter
(Incl. Nos. 54, 55, 57 & 63)
12
784055
Rod, Shifter (3rd & 4th)
49
792007 Screw, Socket hd. cap.
13
784056
Rod Assy., Shift
1/4-20x3/4
(Inch Nos. 9, 10, 11 & 14)
50
786026
Pin, Dowel
14
784057
Rod, Shifter (low)
51
792028 Screw, Hexhd. 5/16-18x7/8
15
774124
Axle
52
792019 Plug, Magnetic drain
16
780042
Washer, Thrust
53
792029
Lockwasher, Split 5/16"
17
792005
Screw, Hex hd. cap, 1 /4-20 x 2-1 /2
54
780049
Bearing, Needle
18
792006
Lockwasher, 1/4
55
780022
Bearing, Needle
19
778033A
Gear, Ring
56
780024
Bearing, Ball
20
786019
Pin, Drive
57 780047
Bearing, Needle
21
786027
Block, Drive
58 780050
Bearing, Ball
22
778094
Pinion, Bevel
59
780046
Bearing, Needle
23
776029A
Shaft & Gear, Brake
60
788025
Seal, Oil
24
792017
Ring, Snap
61 780001
Washer
25
776026
Shaft & Bearing Assy.,
62
776031
Shaft & Pinion
Pinion (Incl. No. 26)
63 780048
Bearing, Needle
26
780018
Bearing
64 776030
Shaft, Reverse idler
27
778034
Gear Cluster Assy.,
65 786025
Spacer, Reverse idler
(Incl. No. 28)
66
778016
Idler, Reverse
28
780053
Bushing
67
778038
Spur gear (22 teeth)
29
784074
Stop, Shifter
68 780039
Bearing, Thrust
30
788023
Gasket, Case & Cover
69
774072A
Carrier Assy., Differential
31
788022
Gasket, Shift lever housing
(Incl. No. 71)
32
778019
Gear, Shifting (3rd & 4th)
70
774071A
Carrier Assy., Differential
33
778020
Gear, Shifting
(Incl. No. 71)
(1st, 2nd & Rev.)
71
780041
Bushing
34
778095
Gear, Bevel
72 788024
"O" Ring
35
778037
Gear, Idler
73
780007
Washer, Thrust
36
778035
Gear Cluster Assy.,
74
780051
Washer, Thrust
(Incl. No. 28)
75
792010
Plug, Pipe
37
786024
Spacer
76 780075
Race, Thrust
38
792018
Ring, Snap
— 28 —
