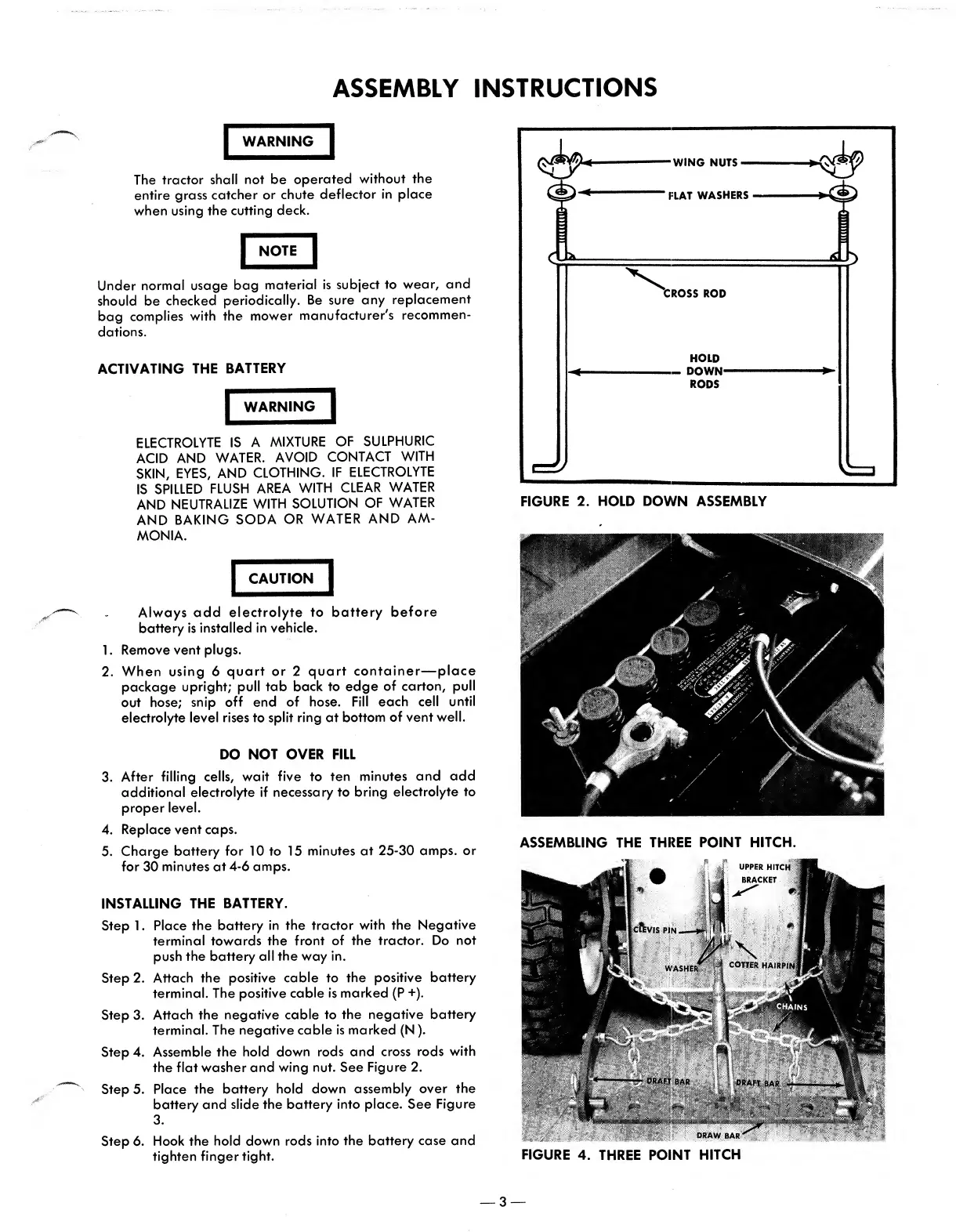

ASSEMBLY
INSTRUCTIONS
I
WARNING
The
tractor
shall
not
be
operated
without
the
entire
grass
catcher
or
chute
deflector
In
place
when
using
the
cutting
deck.
|n^
Under
normal
usage
bag
material
is
subject
to
wear,
and
should
be
checked
periodically.
Be
sure
any
replacement
bag
complies
with
the
mower
manufacturer's
recommen¬
dations.
ACTIVATING
THE
BATTERY
I
WARNING
ELECTROLYTE
IS
A
MIXTURE
OF
SULPHURIC
ACID
AND
WATER.
AVOID
CONTACT
WITH
SKIN,
EYES,
AND
CLOTHING.
IF
ELECTROLYTE
IS
SPILLED
FLUSH
AREA
WITH
CLEAR
WATER
AND
NEUTRALIZE
WITH
SOLUTION
OF
WATER
AND
BAKING
SODA
OR
WATER
AND
AM¬
MONIA.
jcMJTION
Always
add
electrolyte
to
battery
before
battery
is
installed
in
vehicle.
1.
Remove
vent
plugs.
2.
When
using
6
quart
or
2
quart
container—place
package
upright;
pull
tab
back
to
edge
of
carton,
pull
out
hose;
snip
off
end
of
hose.
Fill
each
cell
until
electrolyte
level
rises
to
split
ring
at
bottom
of
vent
well.
DO
NOT
OVER
FILL
3.
After
filling
cells,
wait
five
to
ten
minutes
and
add
additional
electrolyte
if
necessary
to
bring
electrolyte
to
proper
level.
4.
Replace
vent
caps.
5.
Charge
battery
for
10
to
15
minutes
at
25-30
amps,
or
for
30
minutes
at
4-6
amps.
INSTALLING
THE
BATTERY.
Step
1.
Place
the
battery
in
the
tractor
with
the
Negative
terminal
towards
the
front
of
the
tractor.
Do
not
push
the
battery
all
the
way
in.
Step
2.
Attach
the
positive
cable
to
the
positive
battery
terminal.
The
positive
cable
is
marked
(P
+).
Step
3.
Attach
the
negative
cable
to
the
negative
battery
terminal.
The
negative
cable
is
marked
(N).
Step
4.
Assemble
the
hold
down
rods
and
cross
rods
with
the
flat
washer
and
wing
nut.
See
Figure
2.
Step
5.
Place
the
battery
hold
down
assembly
over
the
battery
and
slide
the
battery
into
place.
See
Figure
3.
Step
6.
Hook
the
hold
down
rods
into
the
battery
case
and
tighten
finger
tight.
ASSEMBLING
THE
THREE
POINT
HITCH.
FIGURE
4.
THREE
POINT
HITCH
3
