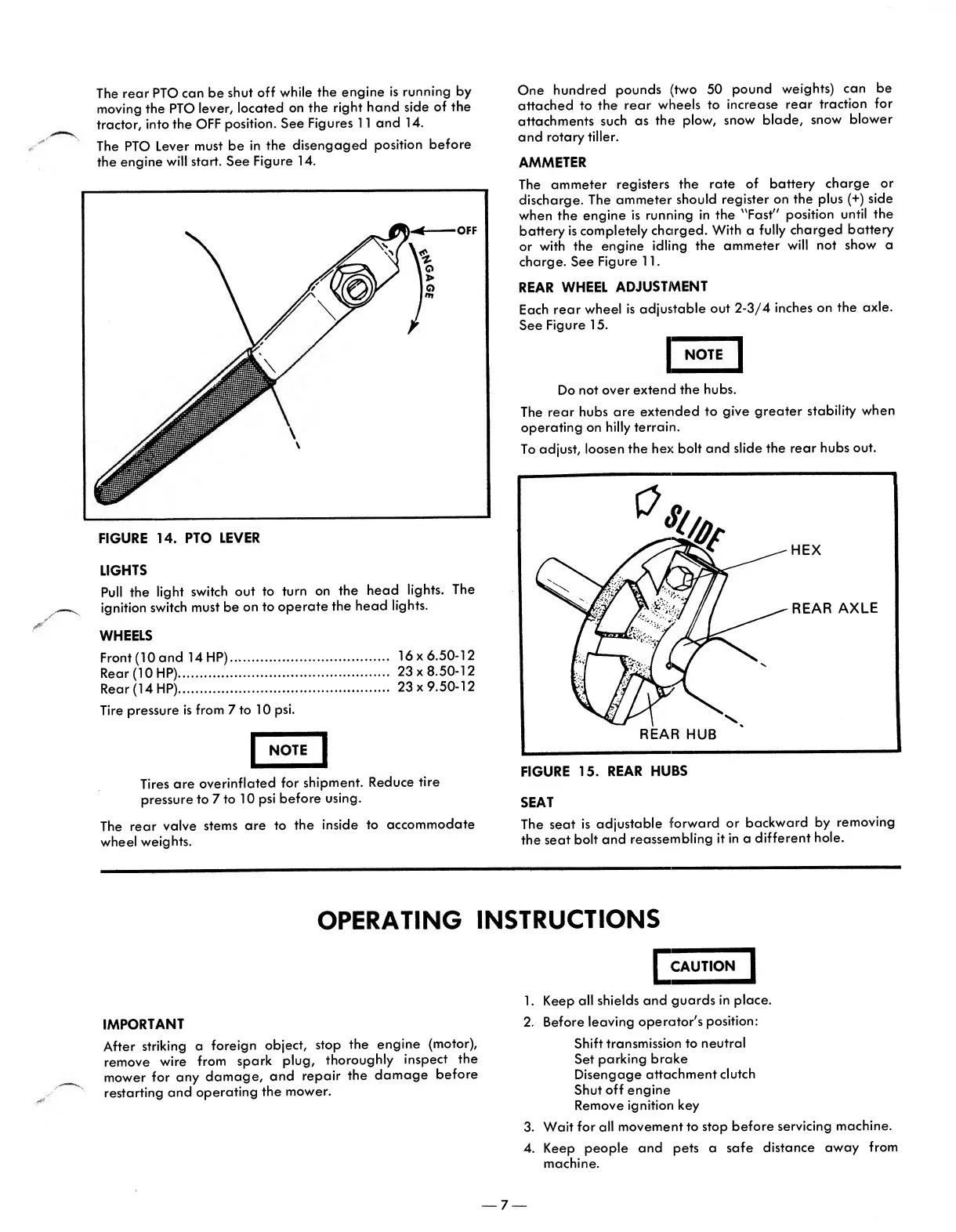

MTD 142-760 - Page 7

The rear PTO can be shut off while the engine is running by
moving the PTO lever, located on the right hand side of the
tractor, into the OFF position. See Figures 11 and 14.
The PTO Lever must be in the disengaged position before
the engine will start. See Figure 14.
LIGHTS
Pull the light switch out to turn on the head lights. The
ignition switch must be on to operate the head lights.
WHEELS
Front (10 and 14 HP).... 16x6.50-12
Rear (10 HP). 23x8.50-12
Rear (14 HP). 23x9.50-12
Tire pressure is from 7 to 10 psi.
NOTE ]
Tires are overinflated for shipment. Reduce tire
pressure to 7 to 10 psi before using.
The rear valve stems are to the inside to accommodate
wheel weights.
One hundred pounds (two 50 pound weights) can be
attached to the rear wheels to increase rear traction for
attachments such as the plow, snow blade, snow blower
and rotary tiller.
AMMETER
The ammeter registers the rate of battery charge or
discharge. The ammeter should register on the plus (+) side
when the engine is running in the "Fast" position until the
battery is completely charged. With a fully charged battery
or with the engine idling the ammeter will not show a
charge. See Figure 11.
REAR WHEEL ADJUSTMENT
Each rear wheel is adjustable out 2-3/4 inches on the axle.
See Figure 15.
NOTE I
Do not over extend the hubs.
The rear hubs are extended to give greater stability when
operating on hilly terrain.
To adjust, loosen the hex bolt and slide the rear hubs out.
SEAT
The seat is adjustable forward or backward by removing
the seat bolt and reassembling it in a different hole.
OPERATING INSTRUCTIONS
IMPORTANT
After striking a foreign object, stop the engine (motor),
remove wire from spark plug, thoroughly inspect the
mower tor any damage, and repair the damage before
restarting and operating the mower.
I CAUTION I
1. Keep all shields and guards in place.
2r Before leaving operator's position:
Shift transmission to neutral
Set parking brake
Disengage attachment clutch
Shut off engine
Remove ignition key
3. Wait for all movement to stop before servicing machine.
4. Keep people and pets a safe distance away from
machine.
