10 se c t i O n 2— as s e M b l y & se t -up
Side Discharge
On the right side of the mower, lift the mulch baffle.1.
Slide chute hooks under hinge pin on mulch baffle 2.
assembly. See Fig. 3-7.
NOTE: Make sure the side discharge chute sits tightly
against the mower deck.
NOTE: Do not remove side mulch baffle at any time, even
when you are not mulching.
Cutting Height Adjustment
The cutting height adjustment lever is located above the rear
right wheel. See Fig. 3-8.
Pull the lever out and away from the mower.1.
Move the lever forward or back for desired cutting height.2.
Release lever towards mower deck.3.
Cord Connection
NOTE: Do not plug your extension cord into the power source
receptacle (outlet) prior to routing it through the cord retainer
and connecting the extension cord to the mower’s cord outlet
receptacle.
To properly route your extension cord through the cord retainer:
Approximately 14 to 16-inches from its end, crease your 1.
extension cord to form a tight loop.
Push the loop through the bottom hole in the cord 2.
retainer. See Fig. 3-6.
Position the loop over the clip found on the cord retainer 3.
and pull down until the cord fits snugly into the clip. See
Fig. 3-6.
NOTE: Use a UL-approved extension cord. A 100-foot,
14-gauge cord is recommended. A 50-foot, 16-gauge
cord is acceptable. Refer to the small chart found in Safe
Operation Practices.
NOTE: The cord retainer secures your extension cord and
safely limits its movement.

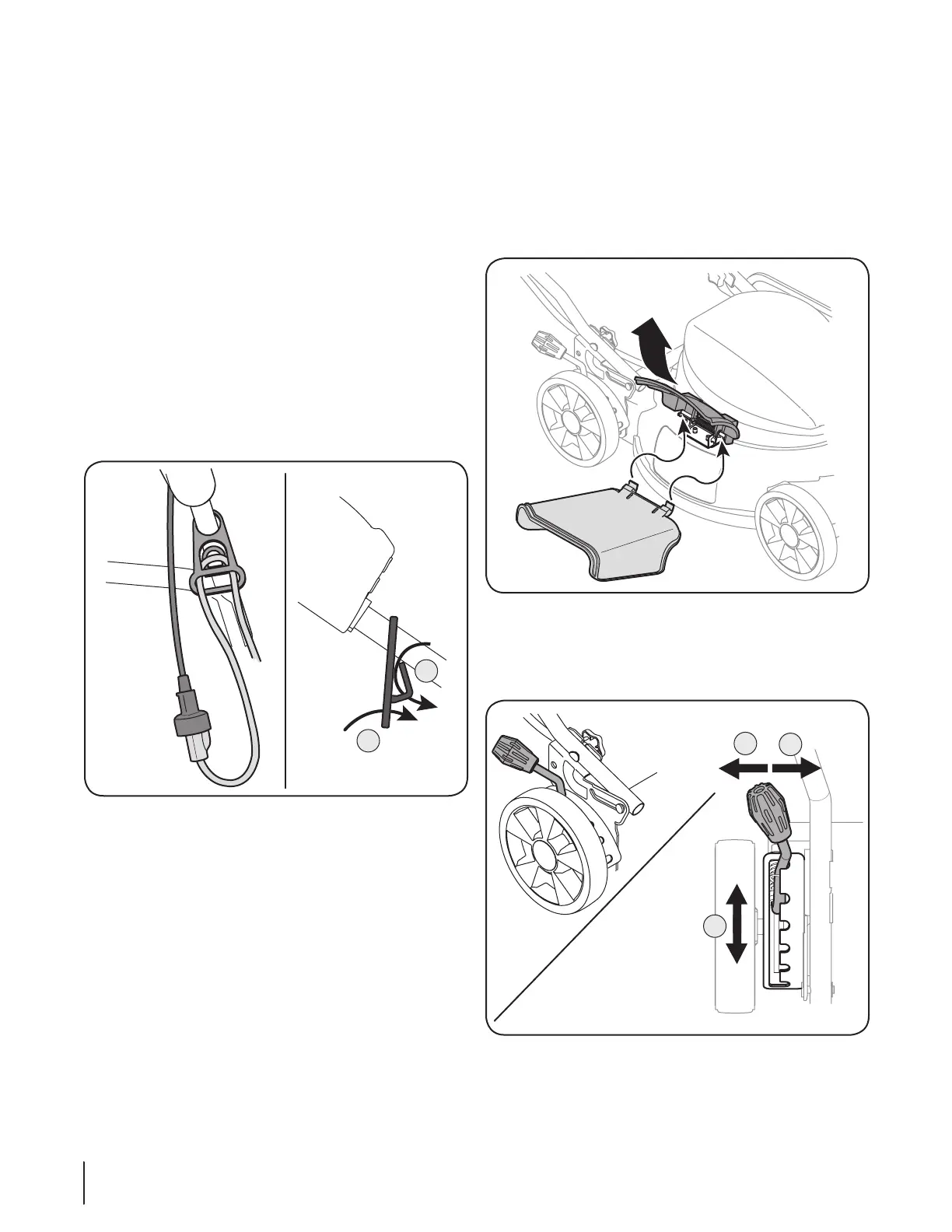

Figure 3-8
Figure 3-7
Figure 3-6
