Assembly & Set-Up
3
8
NOTE: All references to the left and right side of the mower are
from the operator’s position behind the mower.
NOTE: Cord guides and cord retainer may already be installed.
Unpacking the Unit
Cut the corners of the carton and lay the sides flat on the 1.
ground. Remove all packing inserts.
Move the mower out of the carton.2.
Make certain the carton has been completely emptied 3.
before discarding it.
Handle Assembly
To assemble the lower handle:1.
Pivot the lower handle backward. See Fig. 3-1A.a.
Place the bolts in the lower handle in the slots of the b.
handle bracket. See Fig. 3-1B.
Make sure the bolts in the lower handle are fully c.
positioned in the slots of the handle bracket. See
Fig. 3-1C.
NOTE: Make sure motor cord is clear of wing knobs before
tightening.
Tighten the lower handle wing knobs. See Fig. 3-1D.d.
NOTE: Cord retainer may already be installed.
Slide the cord retainer (if packed separately) onto the 2.
right hand side of the upper handle with the motor/blade
control handle. See Fig. 3-2.
NOTE: The clip will be facing down toward the motor.

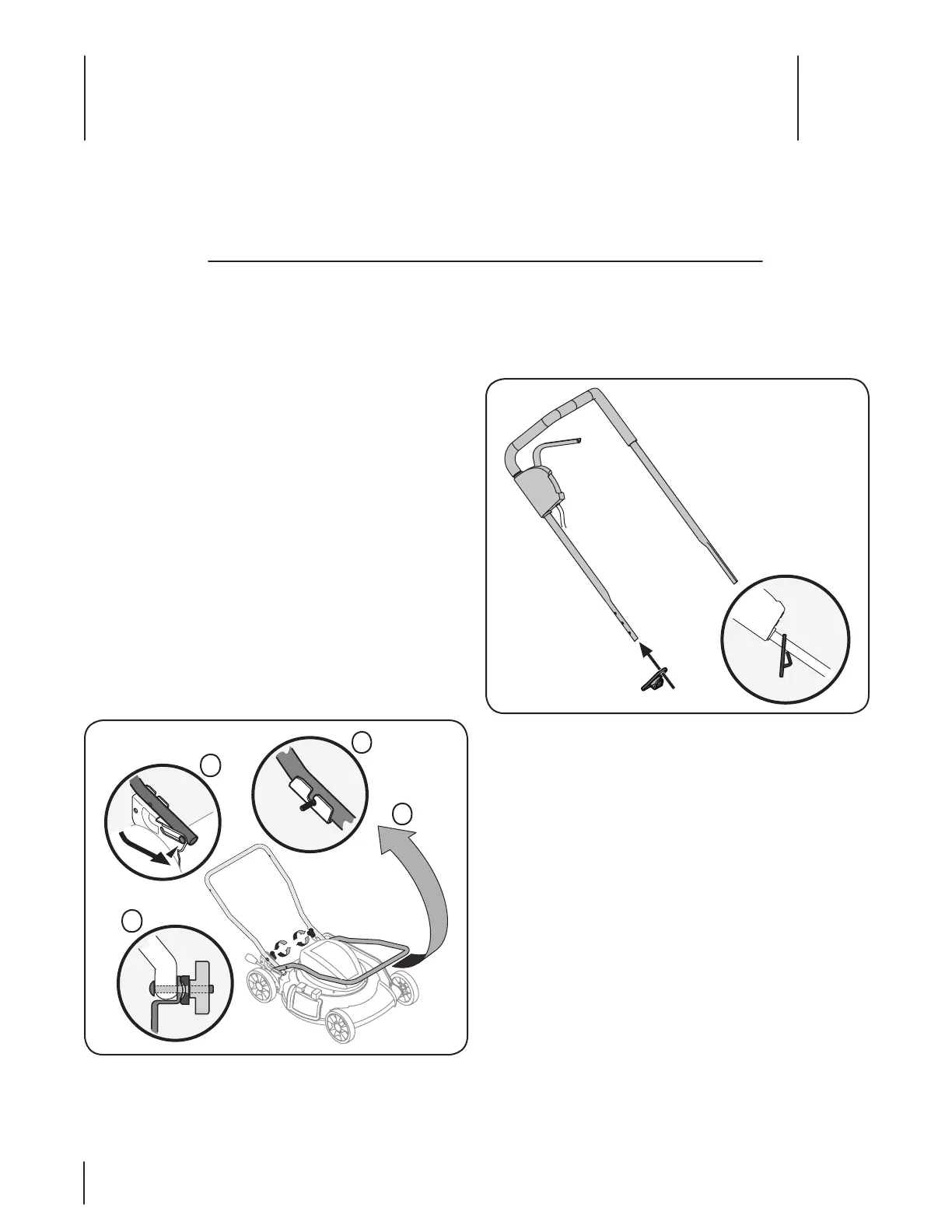

Figure 3-1
Contents of Carton
One Electric Mower• One Side Discharge Chute• Two Cord Guides•
One Operator’s Manual• Two Toggle Clamps• One Cord Retainer•
Figure 3-2
