Controls and Features
4
11
Motor/Blade
Control Lever
Cord Retainer
Overload Protection
Switch
Cutting Height
Adjustment Lever
Starter
Button

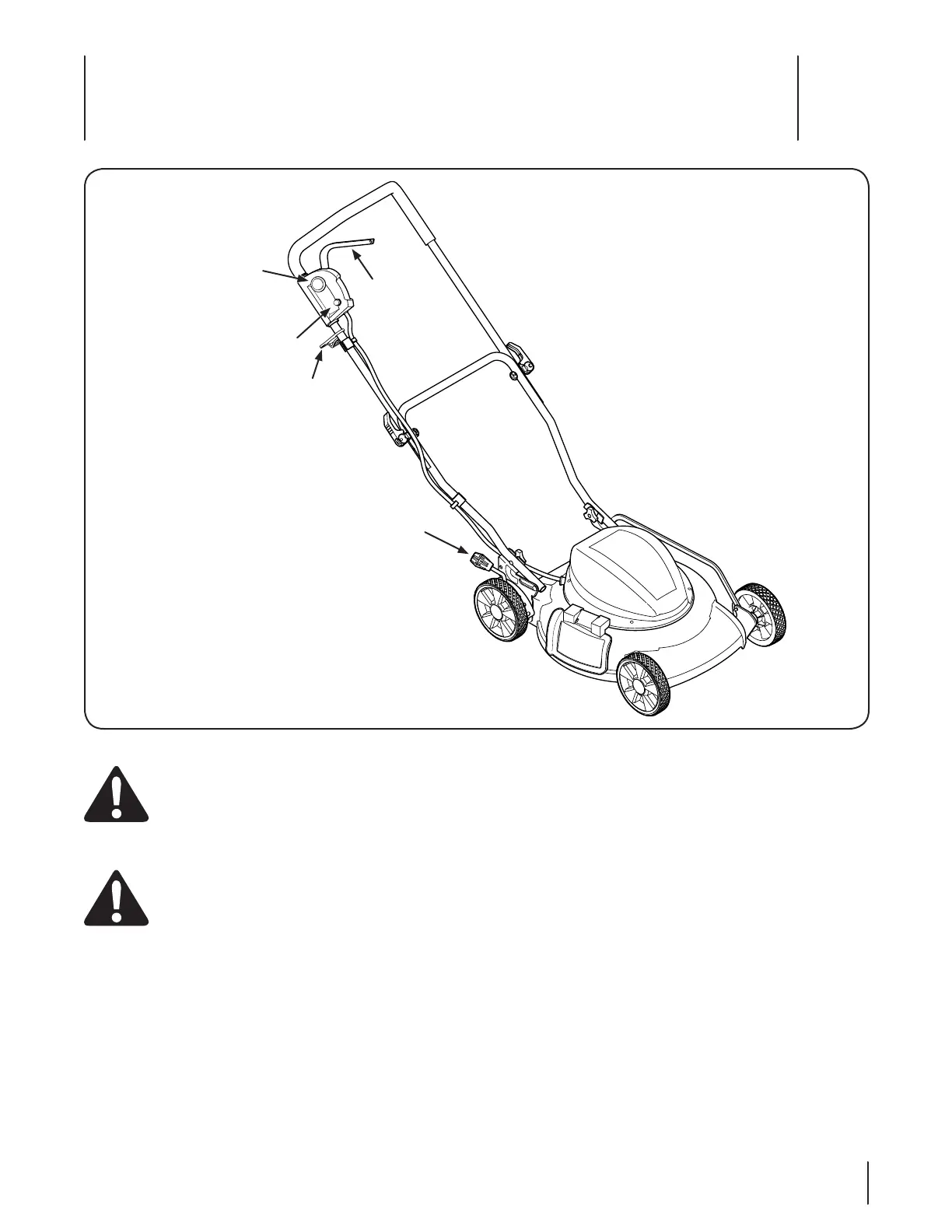

Figure 4-1
WARNING: Read, understand, and follow all
instructions and warnings on the machine and in
this manual before operating.
Motor/Blade Control Lever
WARNING: The motor/blade control lever is a
safety device. Never attempt to bypass its
operations.
The motor/blade control lever is located on the upper handle
of the mower. The motor/blade control lever engages and
disengages the motor and blade.
Cord Retainer
The cord retainer is located on the lower handle of the mower.
The cord retainer secures your extension cord and safely limits its
movement.
Overload Protection Switch
The mower is equipped with an overload protection switch,
located on the motor/blade control. This overload protection
switch may pop out when too much strain is placed on the
motor. Refer to the Maintenance & Adjustments Section to reset
this switch.
Cutting Height Adjustment Lever
The cutting height adjustment lever is located above the right
rear wheel. To adjust the cutting height, refer to the Assembly
Section.
Starter Button
The starter button is located on the upper handle of the mower.
Engaging the motor/blade control lever with the starter button
pressed will start the mower.
