To The Owner
&
Contents of
Carton
To The Owner
One Chute Tube
One Discharge Chute Assembly
Three Grass Bag Assemblies
One Support Tube
One Grass Catcher Cover Assembly
One Mounting Bracket
(Shown Assembled)
Three Blades (Star Hole Center)
Three Blades(Round Hole Center)†
Tube Extension
Chute Stop Bracket
Deck Deflector
Figure 1-1

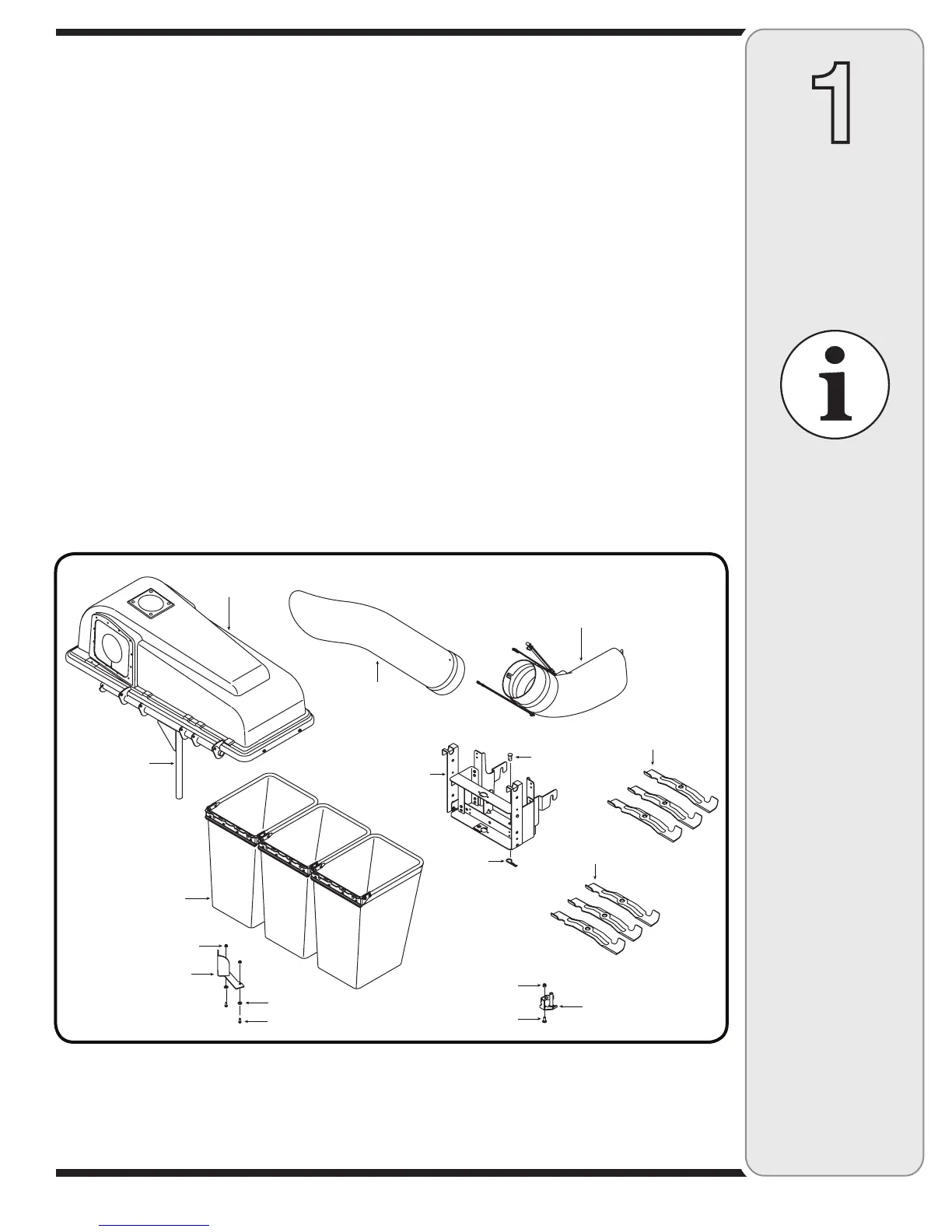

CONTENTS OF CARTON
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton
contents are listed below and shown in Fig. 1-1.
† Included with Model 190-190-100 & OCC-190-192.
NOTE: Model 190 Triple Bagger Kit is designed for use
on Fast Attach™ compatible tractors equipped with 50-
inch cutting deck only. This will NOT mount, nor operate
safely or properly on any other tractor regardless of the
tractor’s compatibility with similar accessories.
The instructions in this manual are divided into sections
that cover the installation of the 190-190-100 & 190-192-
190 on a 50” deck. Carefully read all sections and study
the illustrations to ensure proper installation and usage
of this attachment. Read and observe all WARNING and
CAUTION statements. They are included to provide for
the protection of the equipment installer and user, and to
ensure the prolonged service life of the equipment.
NOTE: References to LEFT and RIGHT indicate the left
and right sides of the tractor when facing forward in the
operator’s position. Reference to the FRONT indicates
the grille end; to the REAR, the rear end of the tractor.
†
Grass Bag
Assemblies
Hairpin
Clip
Clevis Pin
Blades
Blades
Cover
Assembly
Chute Tube
Support Tube
(attached to cover
assembly)
Bracket
Assembly
Discharge Chute
Assembly
Chute Stop Bracket
Carriage Bolt
Hex Lock Nut
Flange Lock Nut
Deck Baffle
Bell Washer
HH Cap Screw
To Next Page
