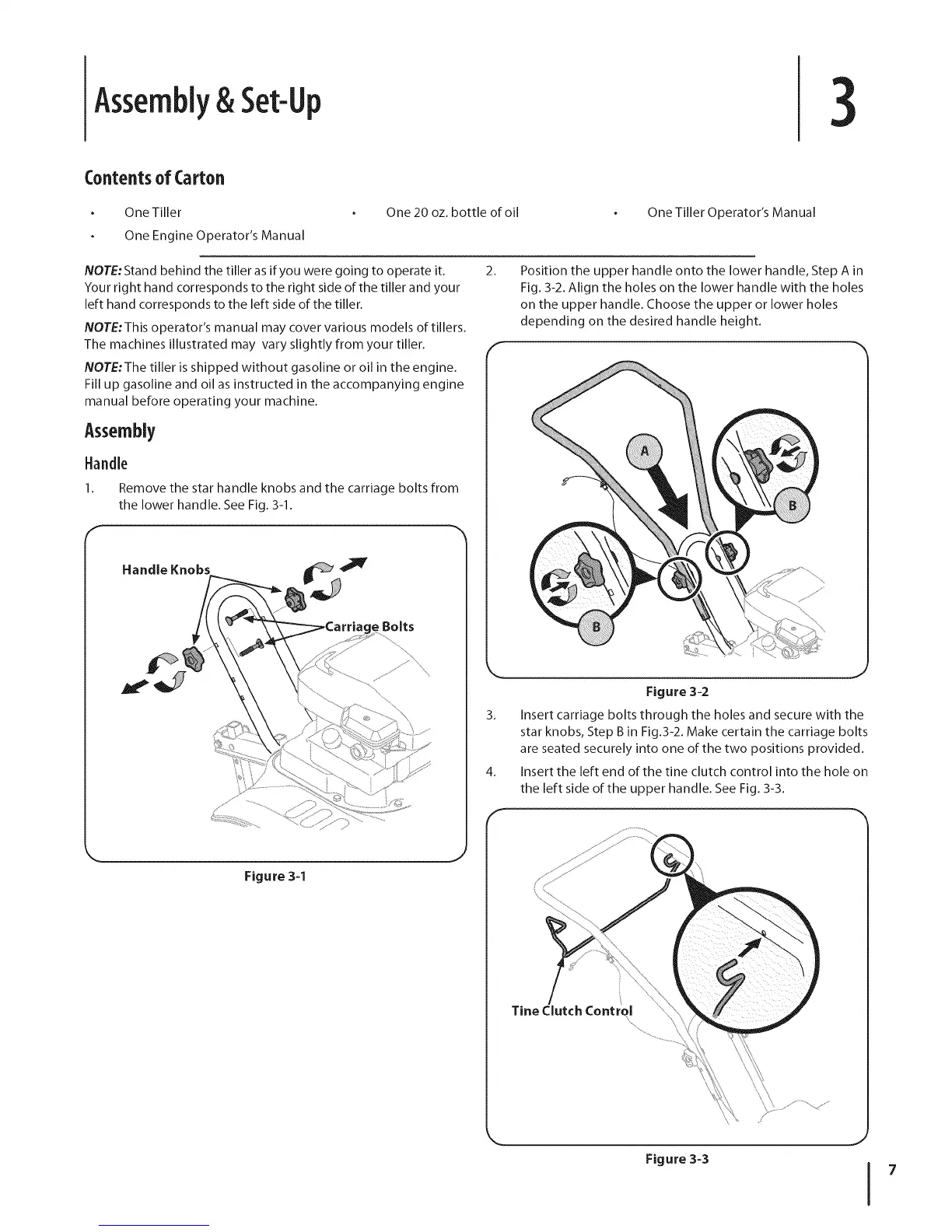

Assembly& Set-Up
3
Contents of Carton
OneTiller
One Engine Operator's Manual
One 20 oz. bottle of oil
One Tiller Operator's Manual
NOTE:Stand behind the tiller as if you were going to operate it.
Your right hand corresponds to the right side of the tiller and your
left hand corresponds to the left side of the tiller.
NOTE:This operator's manual may cover various models of tillers.
The machines illustrated may vary slightly from your tiller.
NOTE: The tiller is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual before operating your machine.
Assembly
Handle
1. Remove the star handle knobs and the carriage bolts from
the lower handle. See Fig. 3-1.
Handle Knobs
Bolts
\
2.
Position the upper handle onto the lower handle, Step A in
Fig. 3-2. Align the holes on the lower handle with the holes
on the upper handle. Choose the upper or lower holes
depending on the desired handle height.
Figure 3=2
3. Insert carriage bolts through the holes and secure with the
star knobs, Step B in Fig.3-2. Make certain the carriage bolts
are seated securely into one of the two positions provided.
4. Insert the left end of the tine clutch control into the hole on
the left side of the upper handle. See Fig. 3-3.
Figure 3=1
Figure 3=3 7
