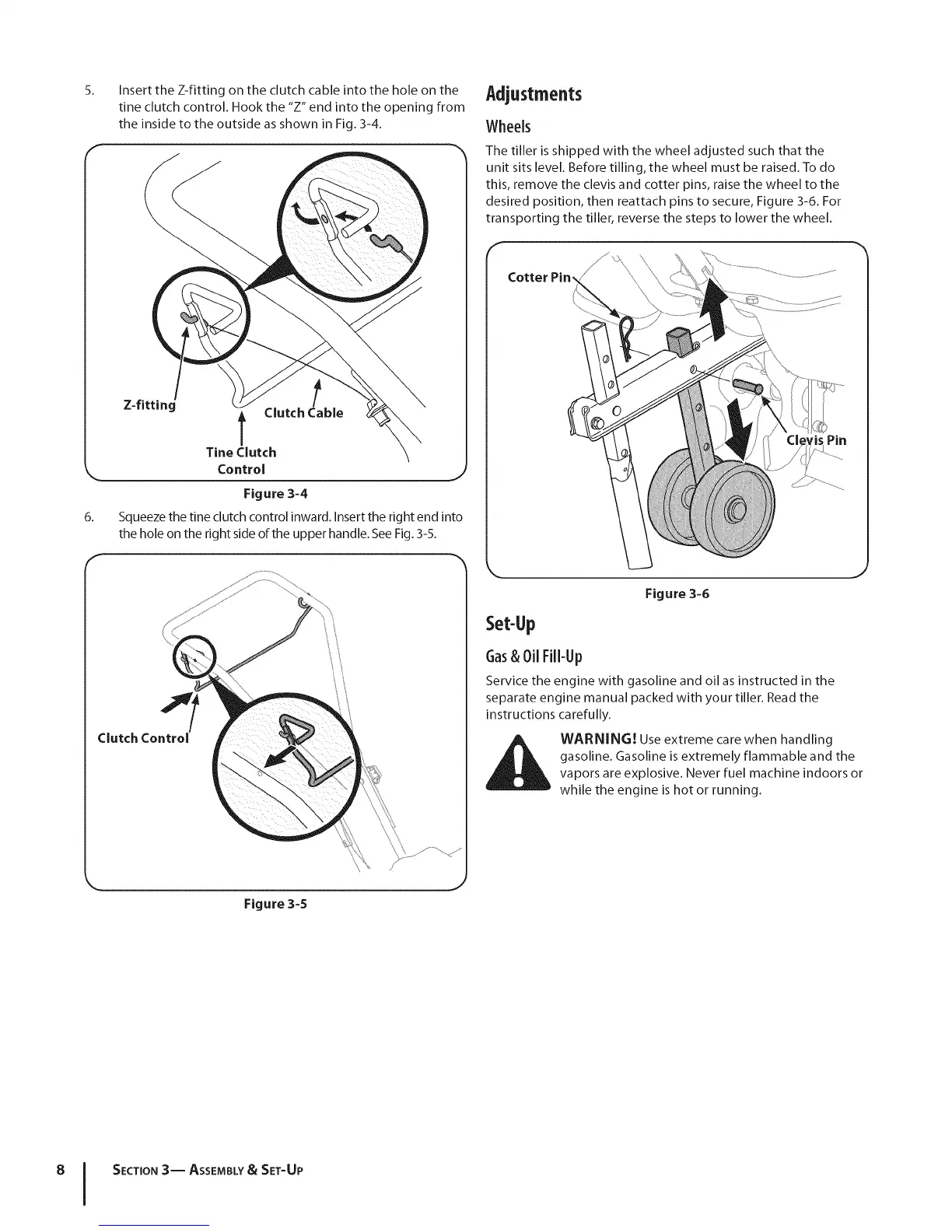

5. Adjustments
6_
Insert the Z-fitting on the clutch cable into the hole on the
tine clutch control. Hook the "Z" end into the opening from
the inside to the outside as shown in Fig. 3-4.
Figure 3-4
Squeeze the tine clutch control inward. Insert the right end into
the hole on the right side of the upper handle. See Fig. 3-5.
Wheels
The tiller is shipped with the wheel adjusted such that the
unit sits level. Before tilling, the wheel must be raised. To do
this, remove the clevis and cotter pins, raise the wheel to the
desired position, then reattach pins to secure, Figure 3-6. For
transporting the tiller, reverse the steps to lower the wheel.
Cotter Pin_
Figure 3-6
Set-Up
(;as& OilFill-Up
Service the engine with gasoline and oil as instructed in the
separate engine manual packed with your tiller. Read the
instructions carefully.
WARNING! Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel machine indoors or
while the engine is hot or running.
Figure 3-5
8 I SECTION3-- ASSEMBLY& SET-UP
