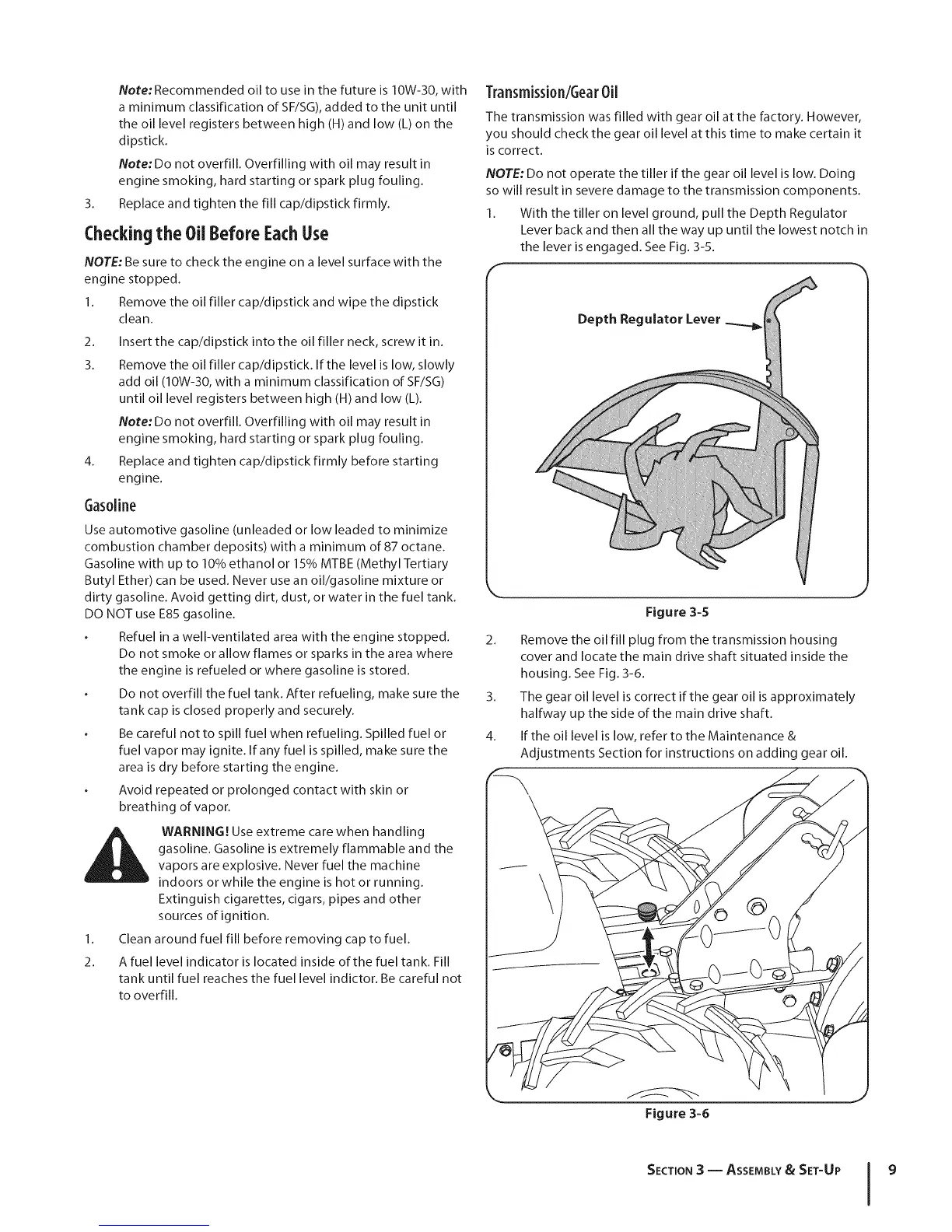

3.
Note: Recommended oil to use in the future is 10W-30,with
a minimum classification of SF/SG),added to the unit until
the oil level registers between high (H) and low (L)on the
dipstick.
Note: Do not overfill. Overfilling with oil may result in
engine smoking, hard starting or spark plug fouling.
Replace and tighten the fill cap/dipstick firmly.
Checkingthe OilBefore EachUse
NOTE: Be sure to check the engine on a level surface with the
engine stopped.
1. Remove the oil filler cap/dipstick and wipe the dipstick
clean.
2. Insert the cap/dipstick into the oil filler neck, screw it in.
3. Remove the oil filler cap/dipstick. If the level is low, slowly
add oil (10W-30, with a minimum classification of SF/SG)
until oil level registers between high (H) and low (L).
Note: Do not overfill. Overfilling with oil may result in
engine smoking, hard starting or spark plug fouling.
4. Replace and tighten cap/dipstick firmly before starting
engine.
6as01ine
Use automotive gasoline (unleaded or low leaded to minimize
combustion chamber deposits) with a minimum of 87 octane.
Gasoline with up to 10% ethanol or 15% MTBE (Methyl Tertiary
Butyl Ether) can be used. Never use an oil/gasoline mixture or
dirty gasoline. Avoid getting dirt, dust, or water in the fuel tank.
DO NOT use E85 gasoline.
Refuel in a well-ventilated area with the engine stopped.
Do not smoke or allow flames or sparks in the area where
the engine is refueled or where gasoline is stored.
Do not overfill the fuel tank. After refueling, make sure the
tank cap is closed properly and securely.
Be careful not to spill fuel when refueling. Spilled fuel or
fuel vapor may ignite. If any fuel is spilled, make sure the
area is dry before starting the engine.
Avoid repeated or prolonged contact with skin or
breathing of vapor.
1.
2.
WARNING! Useextreme care when handling
gasoline. Gasoline isextremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine ishot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
Clean around fuel fill before removing cap to fuel.
A fuel level indicator is located inside of the fuel tank. Fill
tank until fuel reaches the fuel level indictor. Becareful not
to overfill.
Transmissi0n/GearOil
The transmission was filled with gear oil at the factory. However,
you should check the gear oil level at this time to make certain it
is correct,
NOTE: Do not operate the tiller if the gear oil level is low. Doing
so will result in severe damage to the transmission components.
1. With the tiller on level ground, pull the Depth Regulator
Lever back and then all the way up until the lowest notch in
the lever is engaged. See Fig. 3-5.
F
Depth Regulator Lever
Figure 3-5
2. Remove the oil fill plug from the transmission housing
cover and locate the main drive shaft situated inside the
housing. See Fig. 3-6.
3. The gear oil level is correct if the gear oil is approximately
halfway up the side of the main drive shaft.
4. If the oil level is low, refer to the Maintenance &
Adjustments Section for instructions on adding gear oil.
Figure 3-6
SECTION 3 -- ASSEMBLY& SET-UP 9
