Controlsand Features
4
f
Reverse Handle
Fuel Cap
\
Forward Clutch Bail
& Tine Engagement
Oil Fill Cap
Depth Regulator
Handle Height
Adjustment
Air Filter
Pull Starter
Handle
Side Shield
Tines
Shield
Wheel Drive Pin

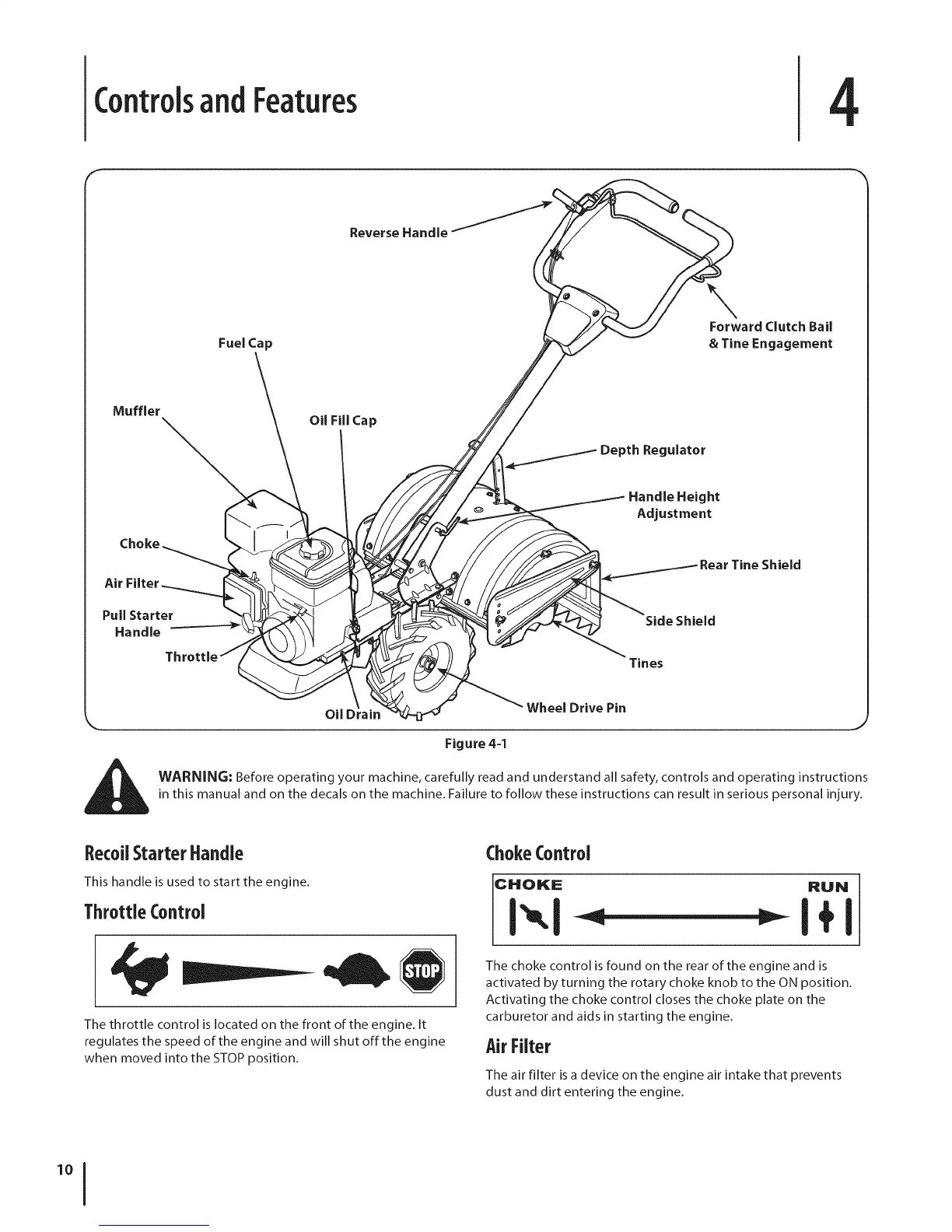

Figure 4-1
WARNING: Before operating your machine, carefully read and understand all safety, controls and operating instructions
in this manual and on the decals on the machine. Failure to follow these instructions can result in serious personal injury.
RecoilStarter Handle
This handle is used to start the engine.
Throttle Control
The throttle control is located on the front of the engine. It
regulates the speed of the engine and will shut off the engine
when moved into the STOP position.
ChokeControl
CHOKE RUN
The choke control is found on the rear of the engine and is
activated by turning the rotary choke knob to the ON position.
Activating the choke control closes the choke plate on the
carburetor and aids in starting the engine.
AirFilter
The air filter is a device on the engine air intake that prevents
dust and dirt entering the engine.
